33

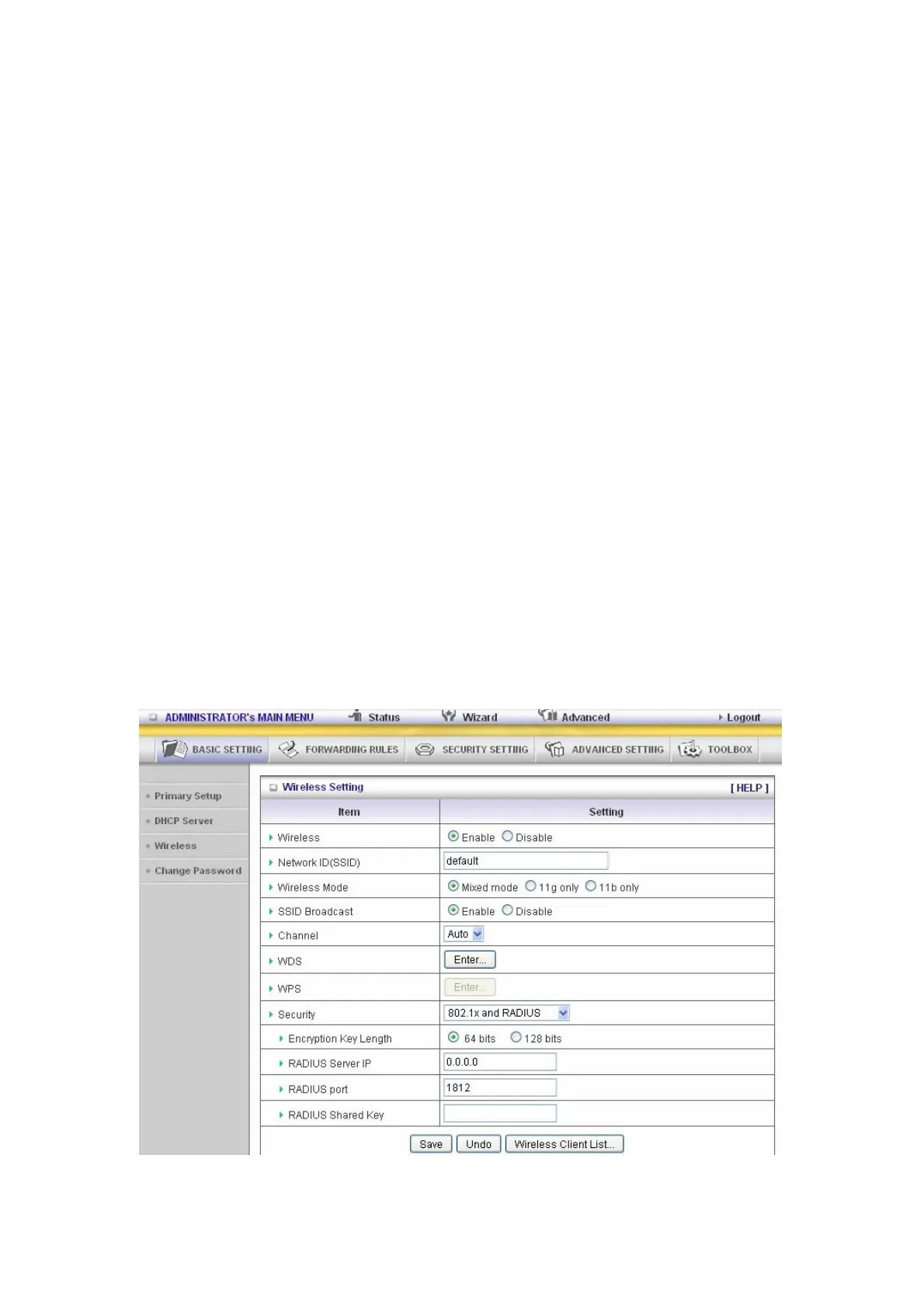

data while it is transferred from one station to another.
There are several security types to use:
WEP :
When you enable the 128 or 64 bit WEP key security, please select one WEP key to be used
and input 26 or 10 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.
802.1X
Check Box was used to switch the function of the 802.1X. When the 802.1X function is
enabled, the Wireless user must authenticate to this router first to use the Network service.
RADIUS Server
IP address or the 802.1X server’s domain-name.
RADIUS Shared Key
Key value shared by the RADIUS server and this router. This key value is consistent with the
key value in the RADIUS server.
WPA-PSK

Other manuals for Keebox W150NR

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Keebox W150NR and is the answer not in the manual?

Keebox W150NR Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity13 channels
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)150 Mbit/s
Input current1 A
Rack mounting-
Frequency range2.4 - 2.4835 GHz
Minimum system requirements- Internet Explorer 6.0, Firefox, Safari, Chrome
WLAN data transfer rates supported11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports5
Routing protocolsRIP-1, RIP-2
Supported network protocolsPPPoE, PPTP, L2TP
Antennas quantity1
Antenna gain level (max)17 dBi
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Certification- CE, FCC
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95 %
Product colorWhite
Cables includedLAN (RJ-45)
Weight and Dimensions IconWeight and Dimensions
Depth110 mm
Width150 mm
Height25 mm
Weight200 g
