39

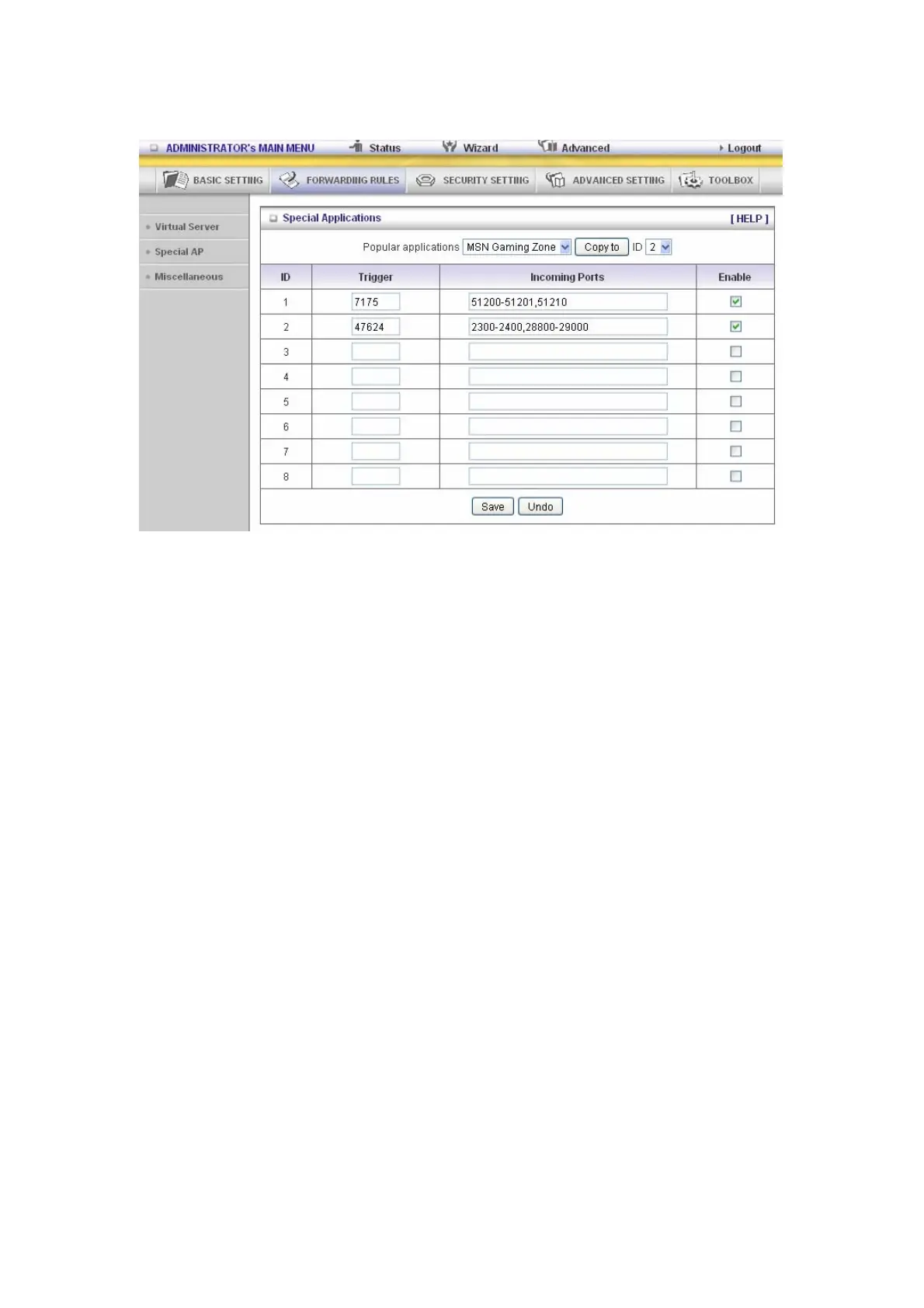

3.3.2.2 Special AP
Some applications require multiple connections, like Internet games, Video conferencing,
Internet telephony, etc. Because of the firewall function, these applications cannot work with a
pure NAT router. The Special Applications feature allows some of these applications to work
with this product. If the mechanism of Special Applications fails to make an application work,
try setting your computer as the DMZ host instead.
1. Trigger: the outbound port number issued by the application..
2. Incoming Ports: when the trigger packet is detected, the inbound packets sent to the
specified port numbers are allowed to pass through the firewall.
This product provides some predefined settings Select your application and click Copy to to
add the predefined setting to your list.
Note! At any given time, only one PC can use each Special Application tunnel.

Other manuals for Keebox W150NR

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Keebox W150NR and is the answer not in the manual?

Keebox W150NR Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity13 channels
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)150 Mbit/s
Input current1 A
Rack mounting-
Frequency range2.4 - 2.4835 GHz
Minimum system requirements- Internet Explorer 6.0, Firefox, Safari, Chrome
WLAN data transfer rates supported11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports5
Routing protocolsRIP-1, RIP-2
Supported network protocolsPPPoE, PPTP, L2TP
Antennas quantity1
Antenna gain level (max)17 dBi
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Certification- CE, FCC
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95 %
Product colorWhite
Cables includedLAN (RJ-45)
Weight and Dimensions IconWeight and Dimensions
Depth110 mm
Width150 mm
Height25 mm
Weight200 g
