Keebox W150NR User Manual

43
addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility on
Access control. For Detail, please refer to Scheduling Rule.
Each rule can be enabled or disabled individually.

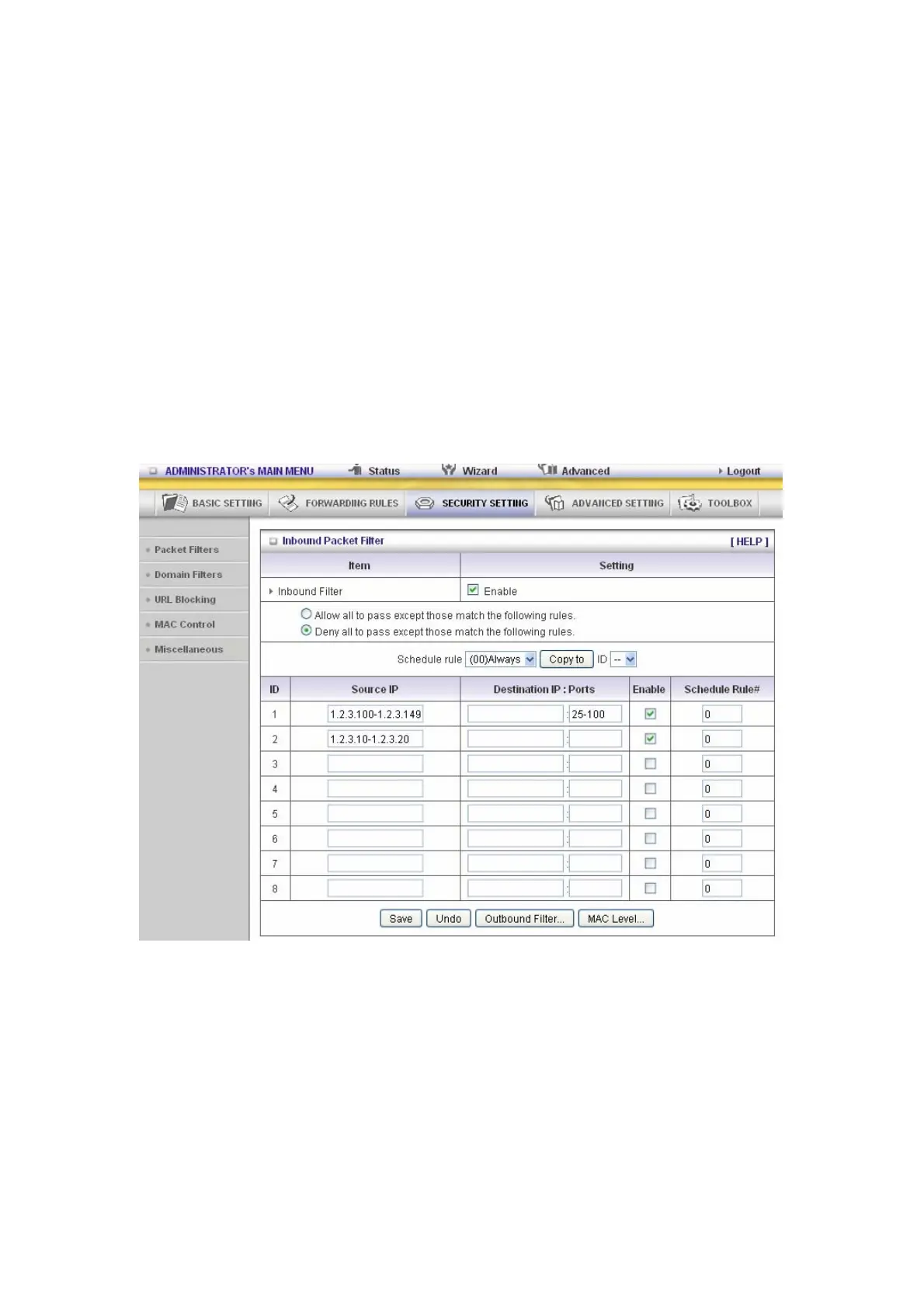

Inbound Filter:
To enable Inbound Packet Filter click the check box next to Enable in the Inbound Packet
Filter field.
Suppose you have SMTP Server (25), POP Server (110), Web Server (80), FTP Server (21),
and News Server (119) defined in Virtual Server or DMZ Host.
Example 1:
(1.2.3.100-1.2.3.149) Remote hosts are allow to send mail (port 25), and browse the Internet
(port 80)
(1.2.3.10-1.2.3.20) Remote hosts can do everything (block nothing)
Others are all blocked.
Example 2:

Keebox W150NR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
Minimum system requirements	- Internet Explorer 6.0, Firefox, Safari, Chrome
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Routing protocols	RIP-1, RIP-2
Supported network protocols	PPPoE, PPTP, L2TP
Antennas quantity	1
Antenna gain level (max)	17 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Certification	- CE, FCC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Product color	White
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	150 mm
Height	25 mm
Weight	200 g
