Keebox W150NR User Manual

67

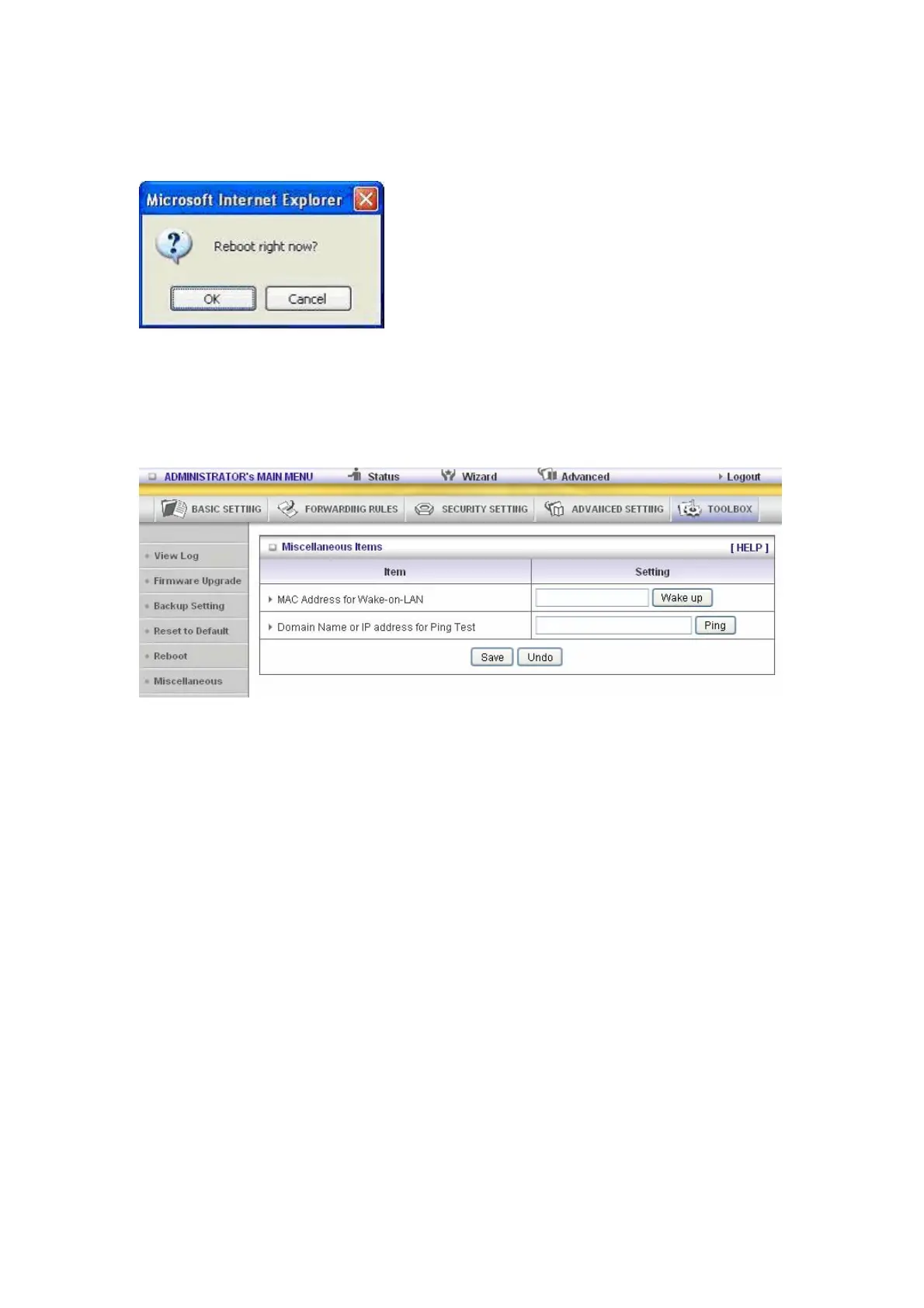

3.3.5.5 Reboot
You can also reboot this product by clicking the Reboot button.
3.3.5.6 Miscellaneous Items
MAC Address for Wake-on-LAN
Wake-on-LAN is a technology that enables you to power up a networked device remotely. In
order to enjoy this feature, the target device must be Wake-on-LAN enabled and you have to
know the MAC address of this device, say 00-11-22-33-44-55. Clicking "Wake up" button will
make the router to send the wake-up frame to the target device immediately.
Domain Name or IP Address for Test
Allow you to configure an IP, and ping the device. You can ping a secific IP to test whether it is
alive.

Keebox W150NR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
Minimum system requirements	- Internet Explorer 6.0, Firefox, Safari, Chrome
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Routing protocols	RIP-1, RIP-2
Supported network protocols	PPPoE, PPTP, L2TP
Antennas quantity	1
Antenna gain level (max)	17 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Certification	- CE, FCC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Product color	White
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	150 mm
Height	25 mm
Weight	200 g
