3.3 Assembly 3.3

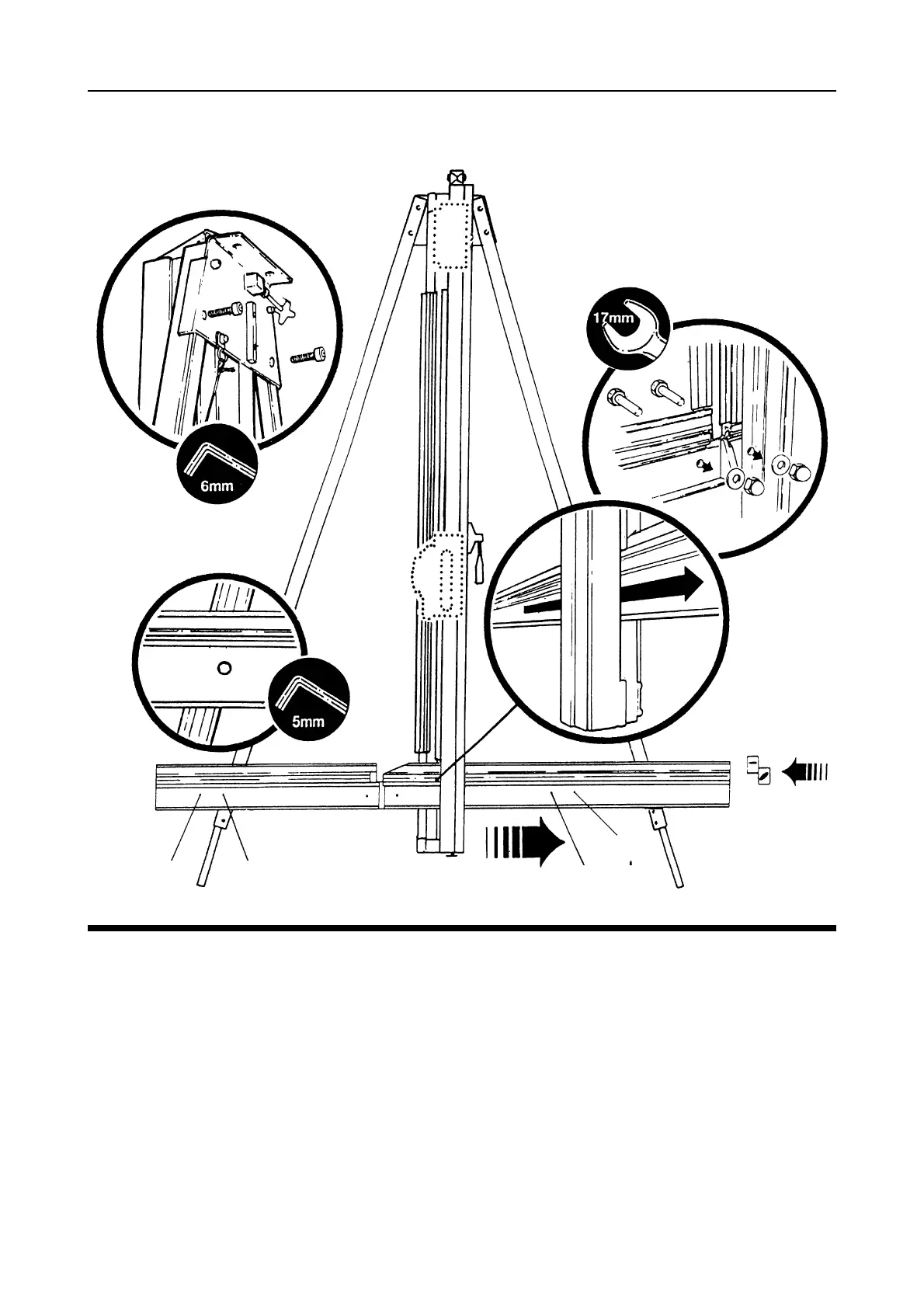

Fitting the Squaring Arm
1. Slide the Squaring arm in from the left hand side through the gap in the Main
body and align the corresponding screw holes.
2. Fit the two Hexagon bolts from the back of the Main body, fit the washers and
nuts finger tight only.
3. Fit the screws through the Squaring arm * into the leg using the 5mm Hexagon
wrench, do not tighten fully.
4. Fit the two M8 Screws to secure the legs at the top of the Main body using the
6mm Hexagon key, tighten both screws fully. Tighten the other two adjacent
M8 screws.
5. Now tighten fully the screws and nuts as in 2 & 3 above.
6. Replace Right hand production stop, Screw and two Washers using 3mm
hexagon wrench.
* Use holes A on 122cm (48”) and B on 160cm (63”) machine.
