DISASSEMBLY INSTRUCTIONS
Outdoor Unit Sizes 9K-12K (208-230V)
Panel Plate
noitartsullIerudecorP

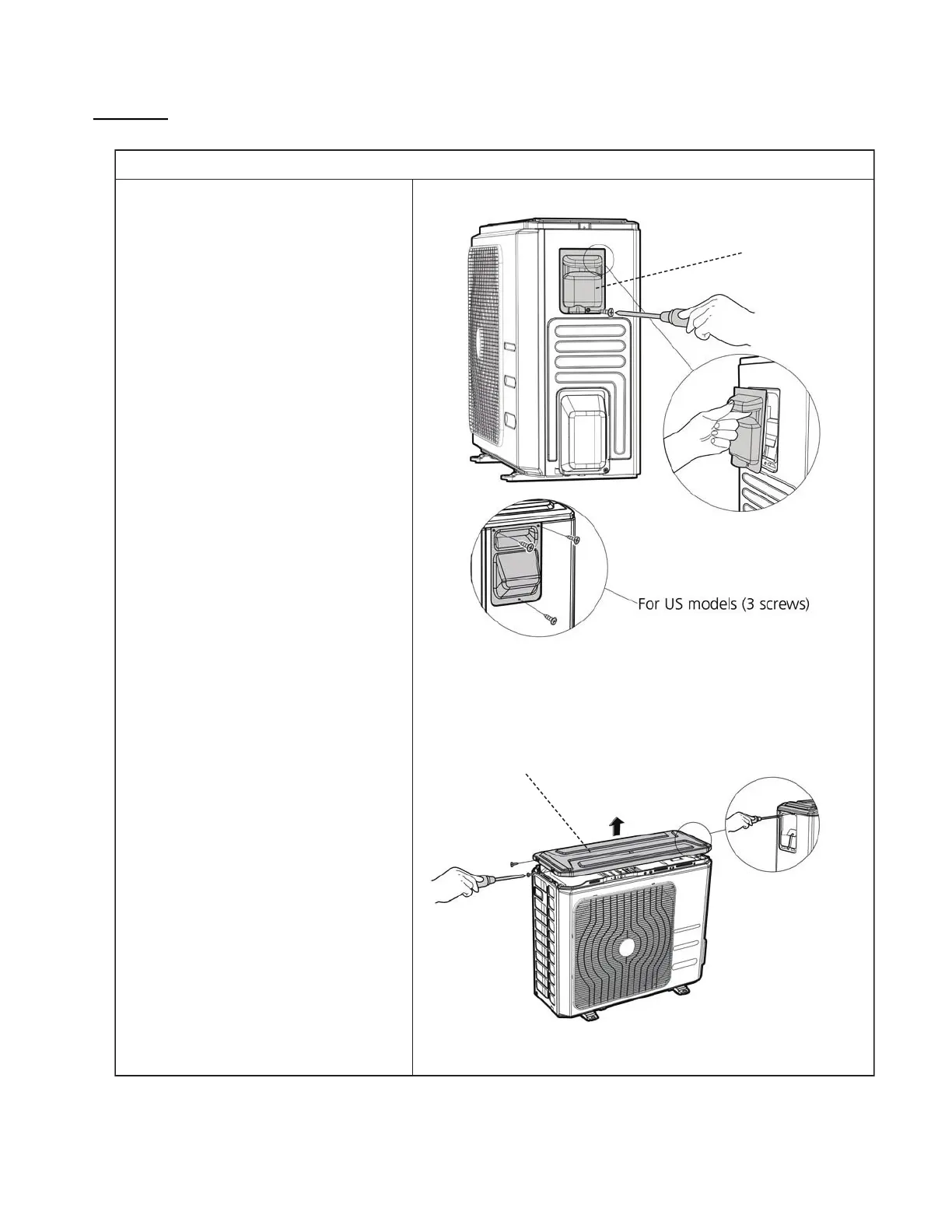

1) Turn o the air conditioner and the
power breaker.
2) Remove the big handle screws (3)
then remove the big handle.
3) Remove the top cover screws
and remove the top cover (3 screws).
One of the screws is located
underneath the big handle.
Top Cover
Big Handle
