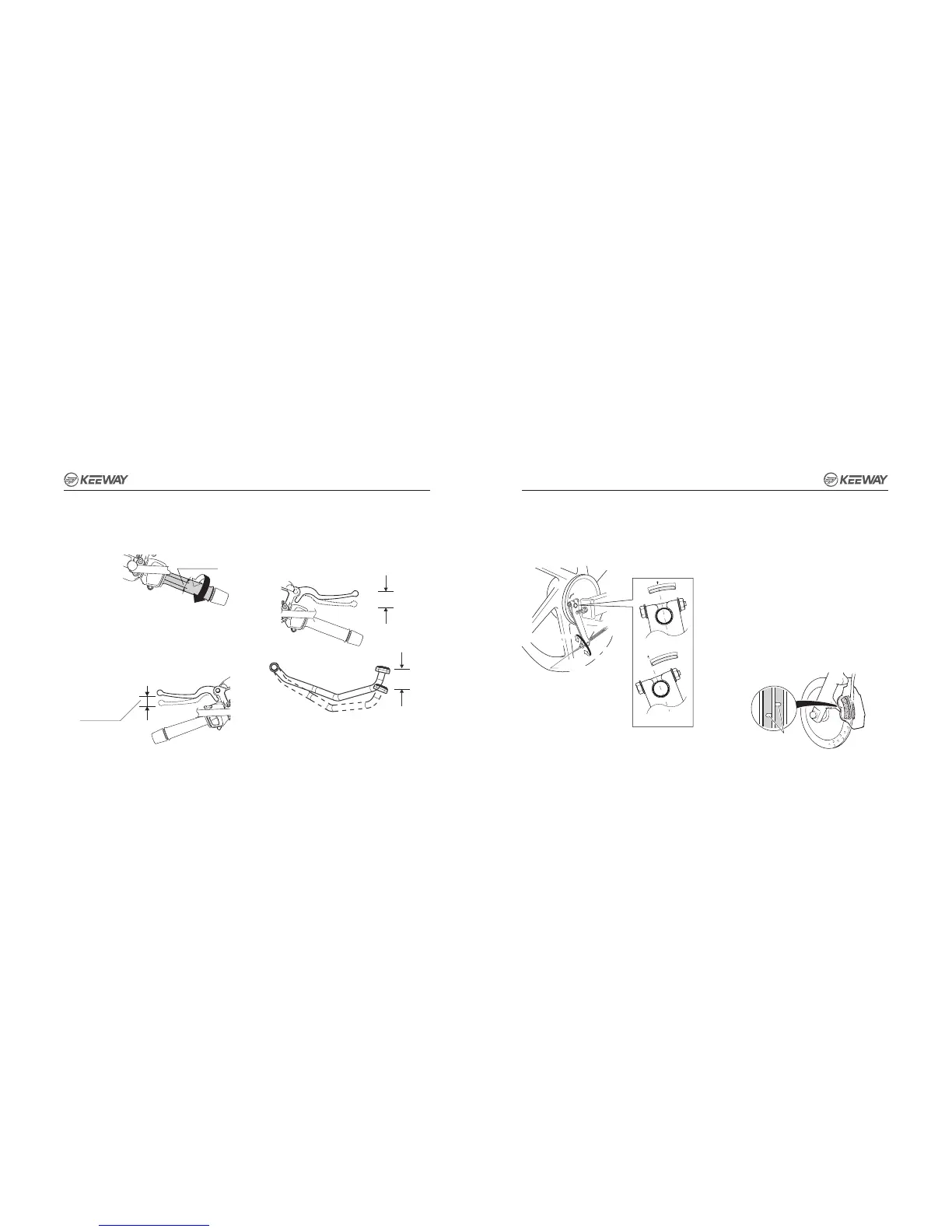

23 - 24
The throttle cable free play should measure 3.0–5.0
mm at the throttle grip. Periodically check the
throttle cable free play and, if necessary, have a
dealer adjust it.
CHECKING THE THROTTLE CABLE
FREE PLAY
CHECK THE DRUM LIMIT
3.0–5.0 mm
The free play of clutch is measured from the free
status of the lever,
Adjust in following methods, if anything abnormal.
(1) Loose the locknut.
(2) Screw in or out adjusting bolt and adjusting
screw to make required free stroke.
(3) Tighten locknut.
CHECKING THE CLUTCH FREE PLAY
10 – 20 mm
For the brake lever and brake pedal free play, please
refer to the following parameters as shown. Periodi-
cally check the brake lever free play and, if neces-
sary, have a dealer check the brake system.
CHECKING THE FRONT BRAKE LEVER AND
REAR BRAKE PEDAL FREE PLAY
20-30 mm
Disk Brake: No spongy
Drum Brake: 10-20mm
Adjustment Nut
Wear Of Brake Shoes
To decrease
free play
To decrease
free play
To increase
free play
To increase
free play
Adjustment nut
Adjustment nut
Turn the adjustment nut on brake arm of rear
wheels to adjust the free play of rear brake .
Set down the rear brake pedal after adjusting
until there is effective brake feeling.
The extension line is
within the range
The extension line is
beyond the range
On the rear wheel brake, there
sets a wear limit index mark.
Check wear of brake shoes in
the following method:
1. Check if braking system is properly adjusted.
2. Check if braking function is excellent, and if the
limit index extension line is within the allowable
range, as shown in Figure A.
3. If the limit index extension line is beyond the
allowable range, as shown in Figure B, please go to
your local distributor for replacement of components
in the brake to ensure driving safety.
A
B
The front and rear brake pads(if equipped) must be
checked for wear at the intervals specified in the
periodic maintenance and lubrication chart.
Each brake pad is provided with wear indicator
grooves, which allow you to check the brake pad
wear without having to disassemble the brake. To
check the brake pad wear, check the wear indicator
grooves. If a brake pad has worn to the point that the
wear indicator grooves were mostly disappeared,
have a dealer replace the brake pads as a set.
CHECKING THE BRAKE PADS
Indicator
