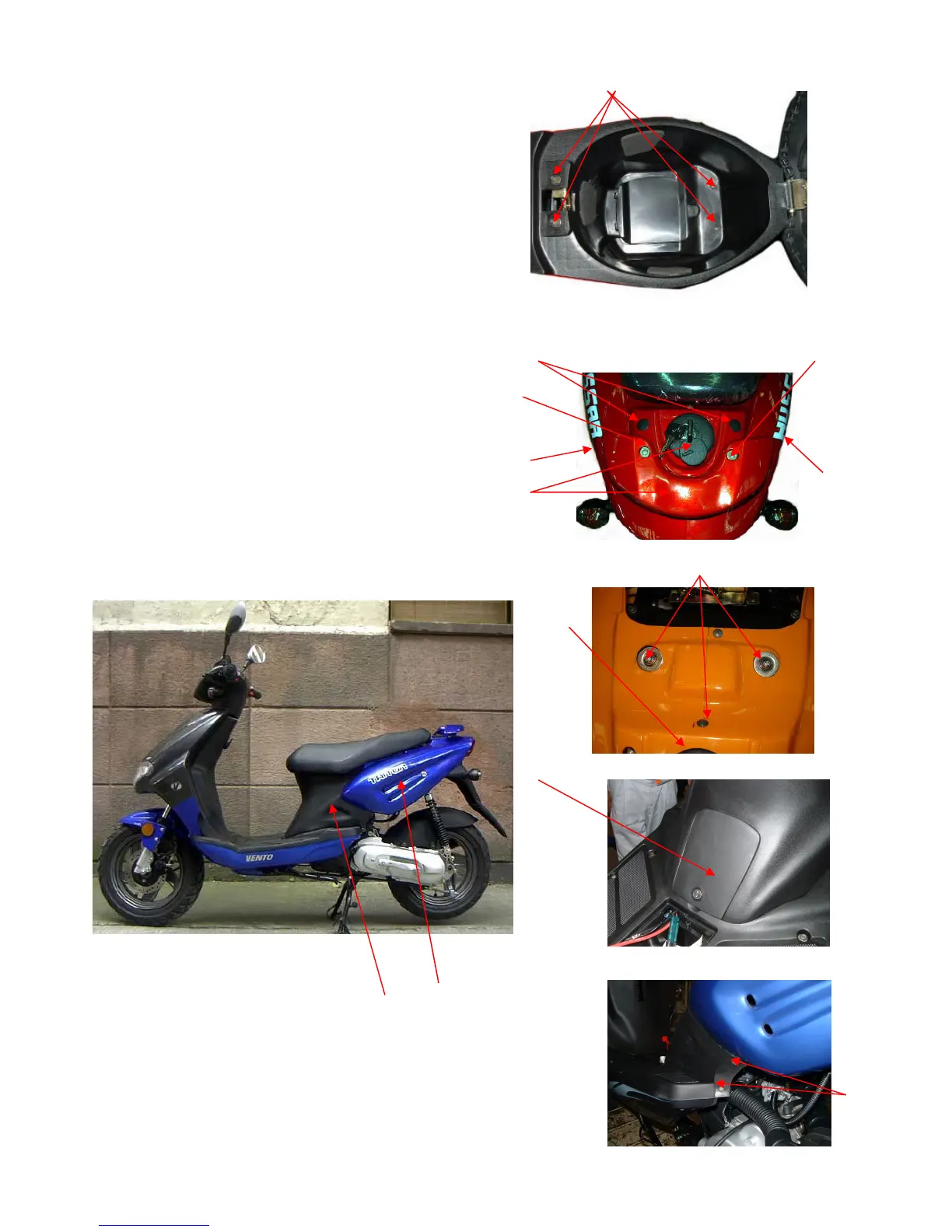

Side cover removal
1. remove seat and helmet barrel by opening seat and loosing
tightening screw①.
2. loose hexad screw③ and remove decorating cap②,rear
carrier and oil tank lock④，remove side cover ⑥
by loosing side cover screw⑤⑦；
3. unlock oil pump cap and remove it, two tapping screw are exposed,
remove them; remove tapping screw⑨；then remove side
cover⑩
side installation
4. the sequence of installation is the reverse of removal.
