HALF RACK, HALF RACK LONG BASE
ASSEMBLY INSTRUCTIONS
08
UNPACKING
TWO-PERSON PROCEDURE: Due to the size of the equipment parts, help is required to safely and successfully complete
the assembly procedure.
HEAVY OBJECT: Help is required during lifting to avoid muscle strain or back injury.
IMPORTANT: Crate conguration varies based on customer order and shipping destination. Do not discard shipping crate
materials or hardware until assembly is successfully completed.

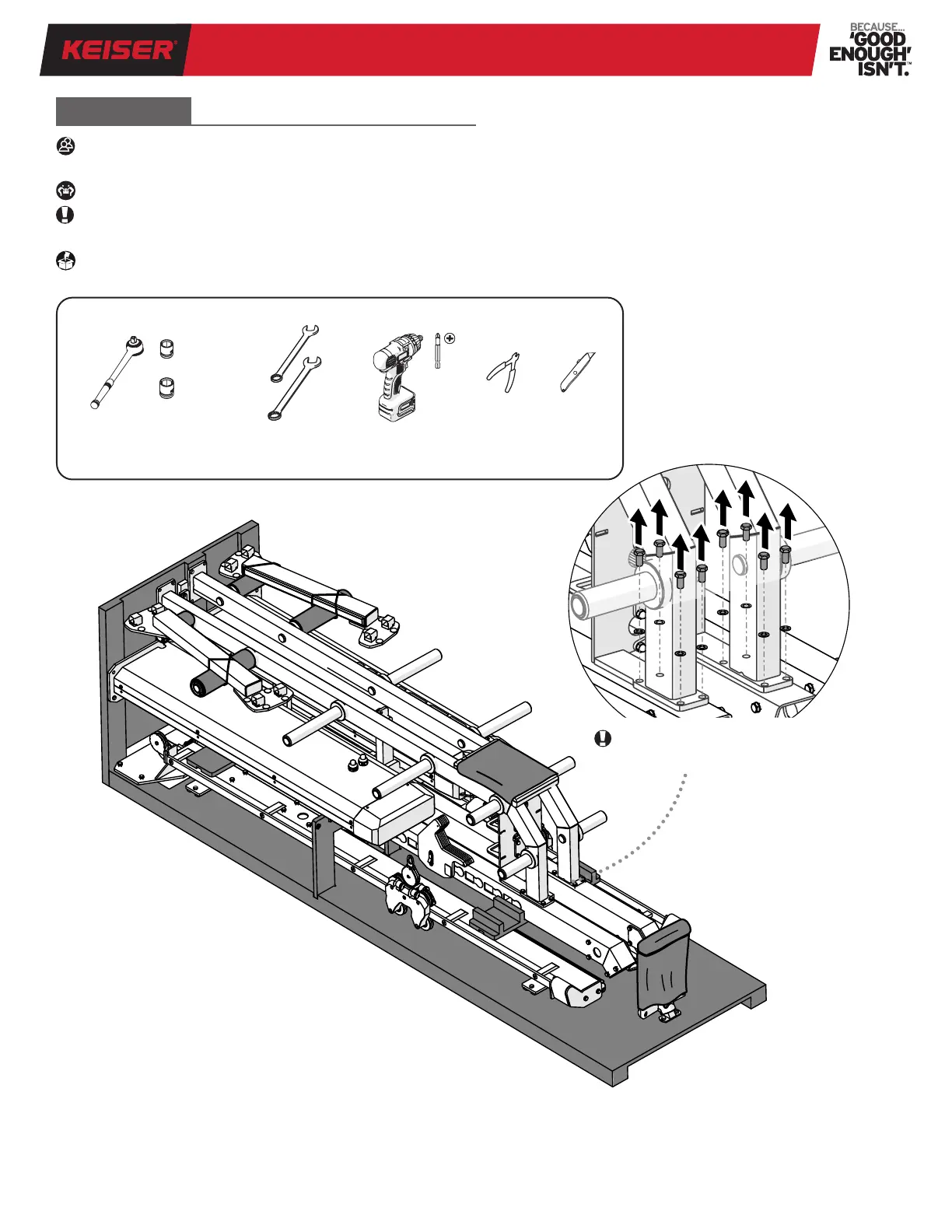

UNPACKING: Position the shipping crate in a cleared area. Open crate to expose the equipment as shown in Figure 5. Remove
all parts from the crate by releasing all cable ties, shipping material, and wood screws.
Unbolt Weight Stacks from Posts
Keep bolts/washers for assembly
Figure 5. How to Unpack the Half Rack
Model 3106XX 9' Half Rack Long Base shown. Bottom Frames and Posts for models 3103XX, 3104XX, and 3105XX have similar appearance.
TOOLS REQUIRED:
Cutting
Pliers
*Drill Driver with
Phillips Bit
*Required for closed crate only
Safety
Blade
1/2 in. and 9/16 in.
Combo Ratcheting
Wrenches
Ratchet Wrench with
1/2 in. and 9/16 in. Sockets
