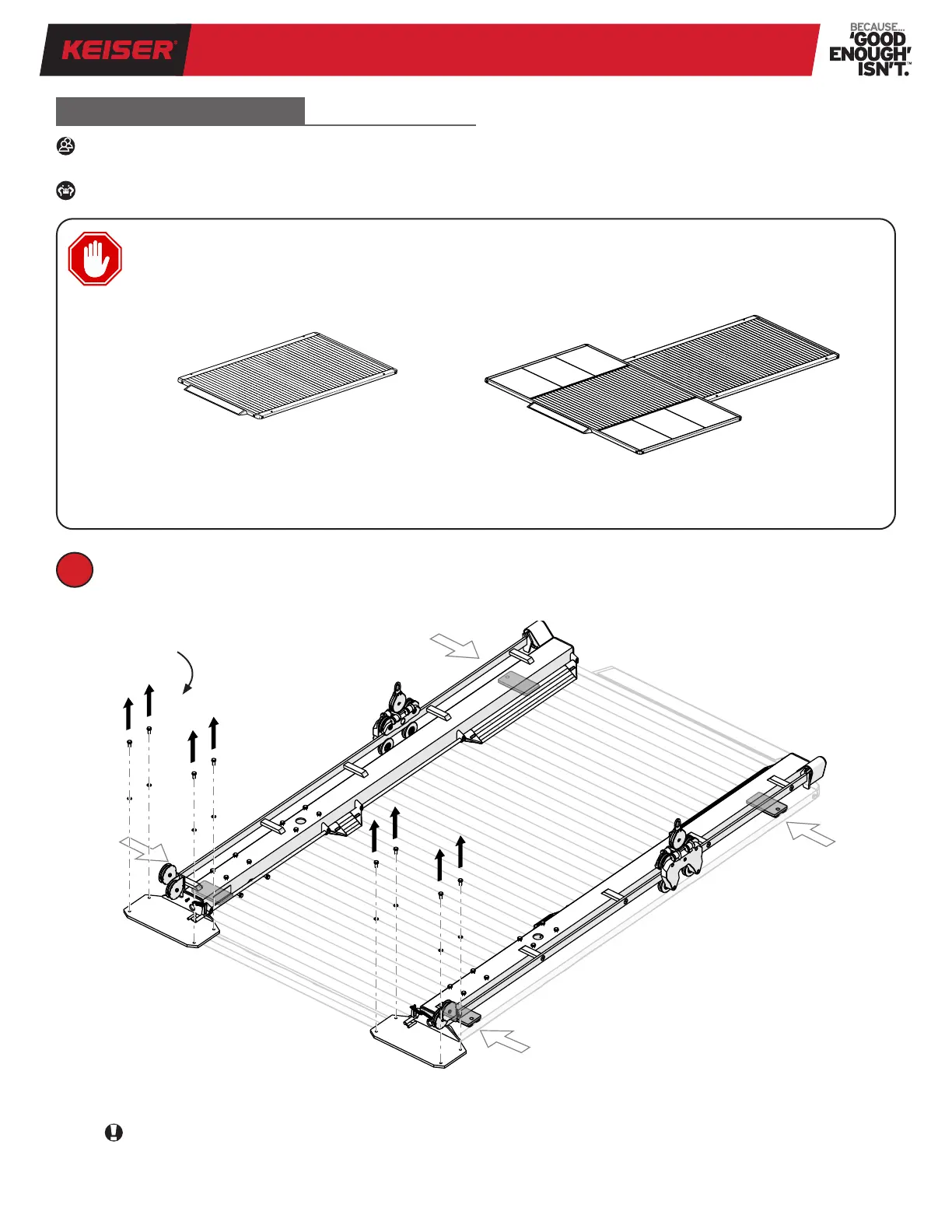

HALF RACK, HALF RACK LONG BASE
ASSEMBLY INSTRUCTIONS
09
ASSEMBLE YOUR INSERT PLATFORM OR OLYMPIC LIFTING INSERT PLATFORM FIRST
See platform assembly diagram included with the platform.
Proceed to Step 1 to assemble and mount your Half Rack on your platform type.
Insert Platform Olympic Lifting Insert Platform
FRONT
FRONT
ASSEMBLY PROCEDURE
1
TWO-PERSON PROCEDURE: Due to the size of the equipment parts, help is required to safely and successfully complete
the assembly procedure.
HEAVY OBJECT: Help is required during lifting to avoid muscle strain or back injury.
RIGHT
LEFT
REAR
FRONT
x4
Anchor Points
BOTTOM FRAME PLACEMENT
Lay the Bottom Frames at the desired location. Remove Base Plate Screws and Washers.
PLATFORM CONFIGURATIONS: Set the Bottom Frames on the Platform. Align the four Anchor Points to the
Platform mount holes. DO NOT INSTALL MOUNTING HARDWARE SCREWS (included with the Platform) until after
Steps 2 through 4 have been completed.
Base Plate
Screws and Washers
To Next Page
