Operation
3-27
■ Combining 2-pole and 4-pole switching
The Model 2001-TCSCAN can combine 2- and 4-pole
switching in various combinations. For example, you might
require 4-pole switching for only two resistors, while the re-
maining resistors could be tested using conventional 2-pole
switching.

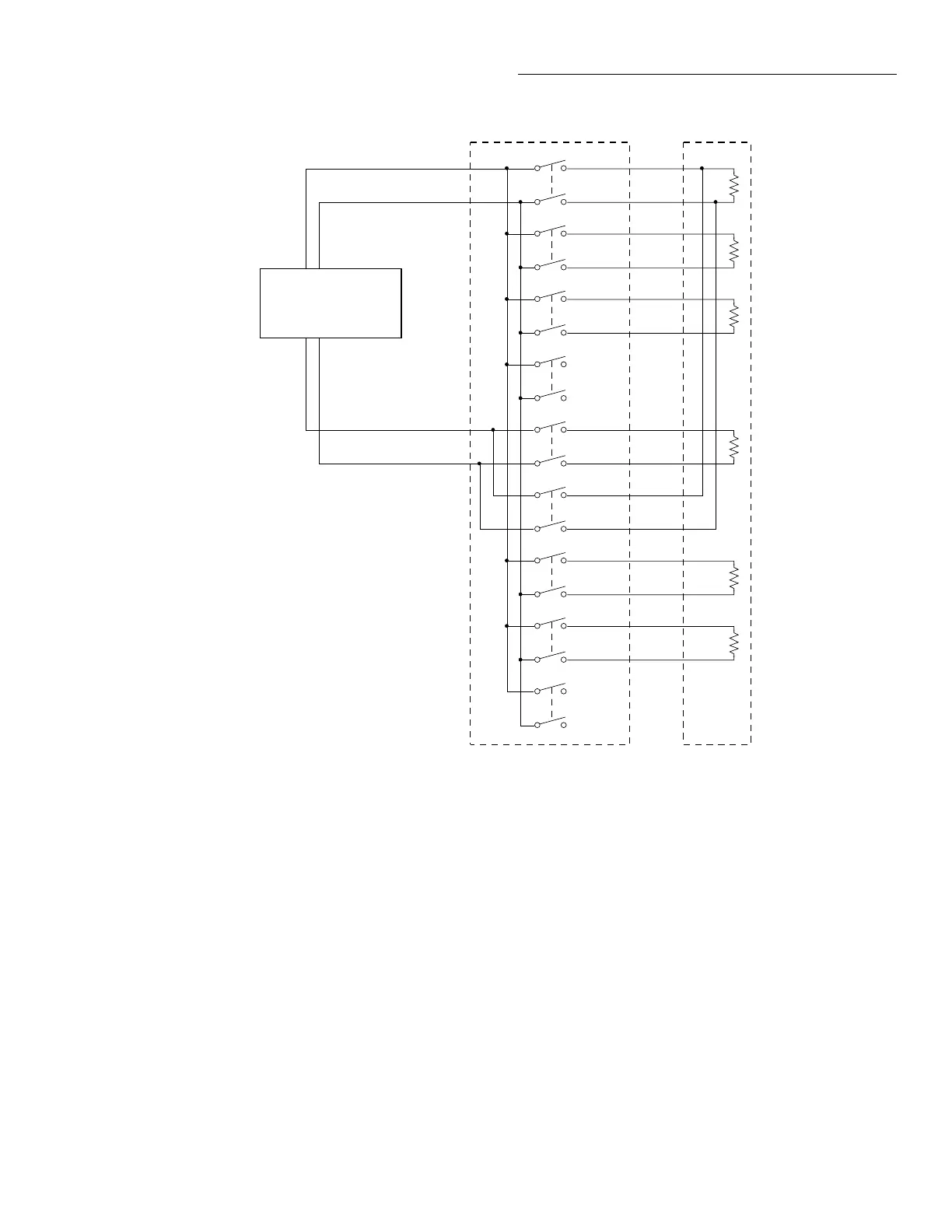

Figure 3-5 shows a test configuration using mixed 2-pole and
4-pole switching. Four-pole switching is used only for the
device connected to channels 2 and 7. Five more resistors are
tested using 2-pole switching. In order to use this
configuration, configure the channels for Ω2 and Ω4
functions as appropriate.
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
CH 9
CH 10
DUT's (6)
2001-TCSCAN
Out A
HI
LO
Input HI
Sense HI
Sense LO
Out B
HI
LO
DMM
Input LO
Figure 3-5
Combining 2-pole and 4-pole switching
