OPERATION
35
5. Choose a suitable crimp for the terminals.
6. If using voltage sense, remove the
sense terminal joining plates and
connect sensing wires to the
load(s).
Page 53
7. Connect the positive load cable to the positive
output terminal and the negative cable to the
negative output terminal.
8. Reattach the output terminal
cover.
Page 36

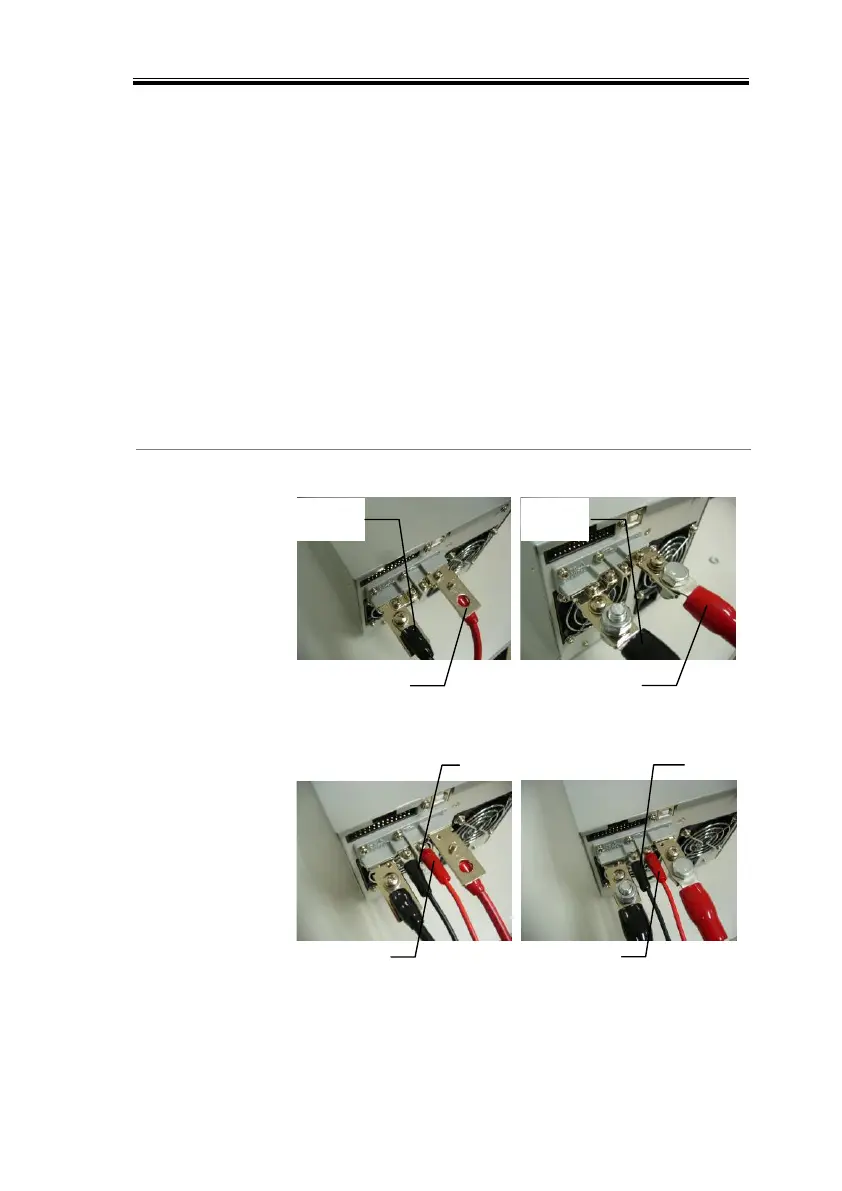

Connection
without sense
wiring
Using M4 screws
Positive
potential
Negative
potential
Using M8 bolts
Positive
potential
Negative
potential
Connection with
sense wiring
Using M4 screws
Sense -
Sense +
Using M8 bolts
Sense -
Sense +
