Keithley 2260B-30-36 - Page 57

2260B Series User Manual
54
Parallel 2260B
Units

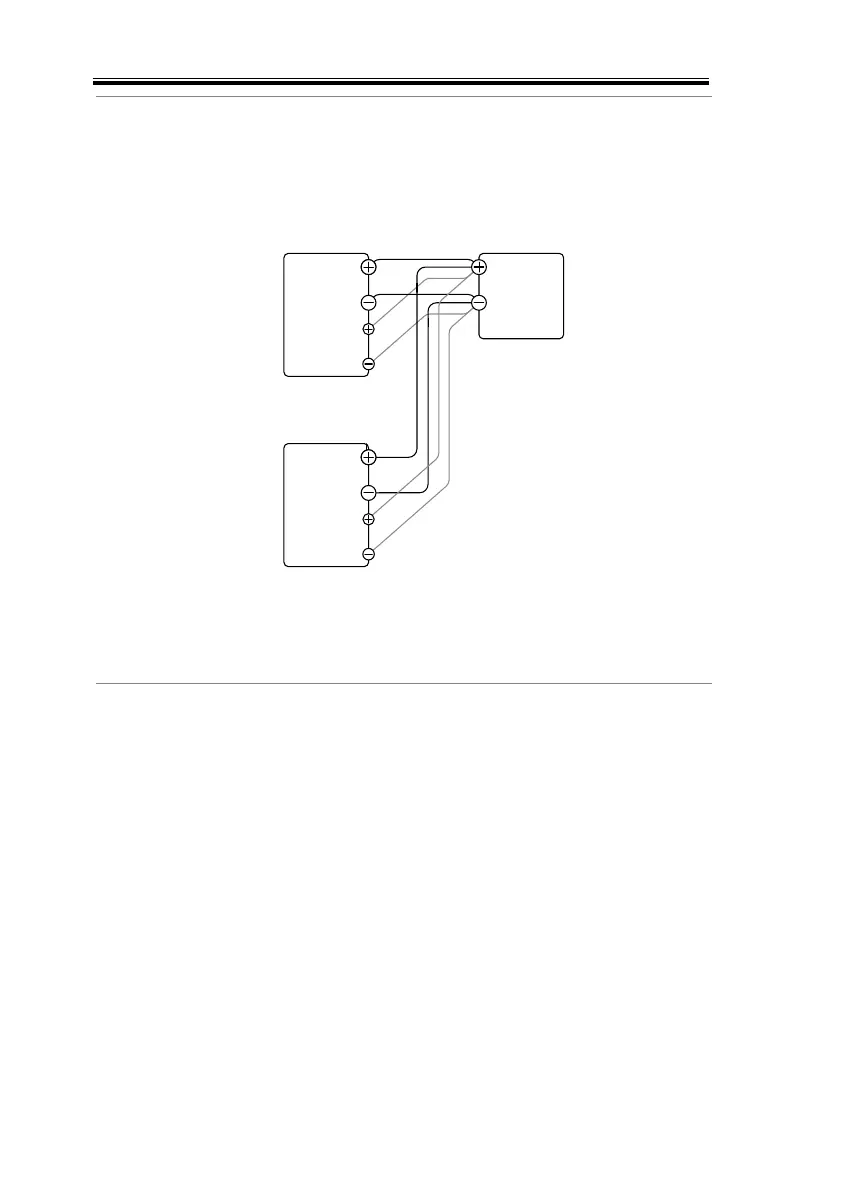

1. Connect the Sense+ terminals to the positive
potential of the load. Connect the Sense-
terminals to the negative potential of the load.
Output
Sense
Sense
Power
supply #2
Output
Output
Sense
Sense
Power supply #1
Output
Load
Input
Input
Page 34
2. Operate the instrument as normal.
See the Parallel Operation chapter
for details.
Page 57
Serial 2260B
Units
1. a. Connect the 1
st
Sense+ terminal to the
positive potential of the load.
b. Connect the 1
st
Sense- terminal to the
positive output terminal of the second 2260B
unit.
c. Connect the 2
nd
Sense+ terminal to the
positive terminal of the second 2260B unit.
d. Connect the 2
nd
Sense- terminal to negative
terminal of the load.
