Startup Guide
3
Step 3 Connect DUT test fixture to 4200-SCS
Figure 3 shows how to connect a test fixture for a 4-terminal device to the 4200-SCS. The test fixture must
be equipped with standard 3-lug female triax connectors.
• Connections to SMUs – To connect directly to an SMU, use a Mini triax cable that is terminated with a
miniature male triax connector on one end and a standard 3-slot male triax connector on the other end.
• Connections to PreAmps – To connect to a PreAmp, use a cable that is terminated with a standard
3-slot male triax connector on both ends.
NOTE Connections are snug; push firmly.

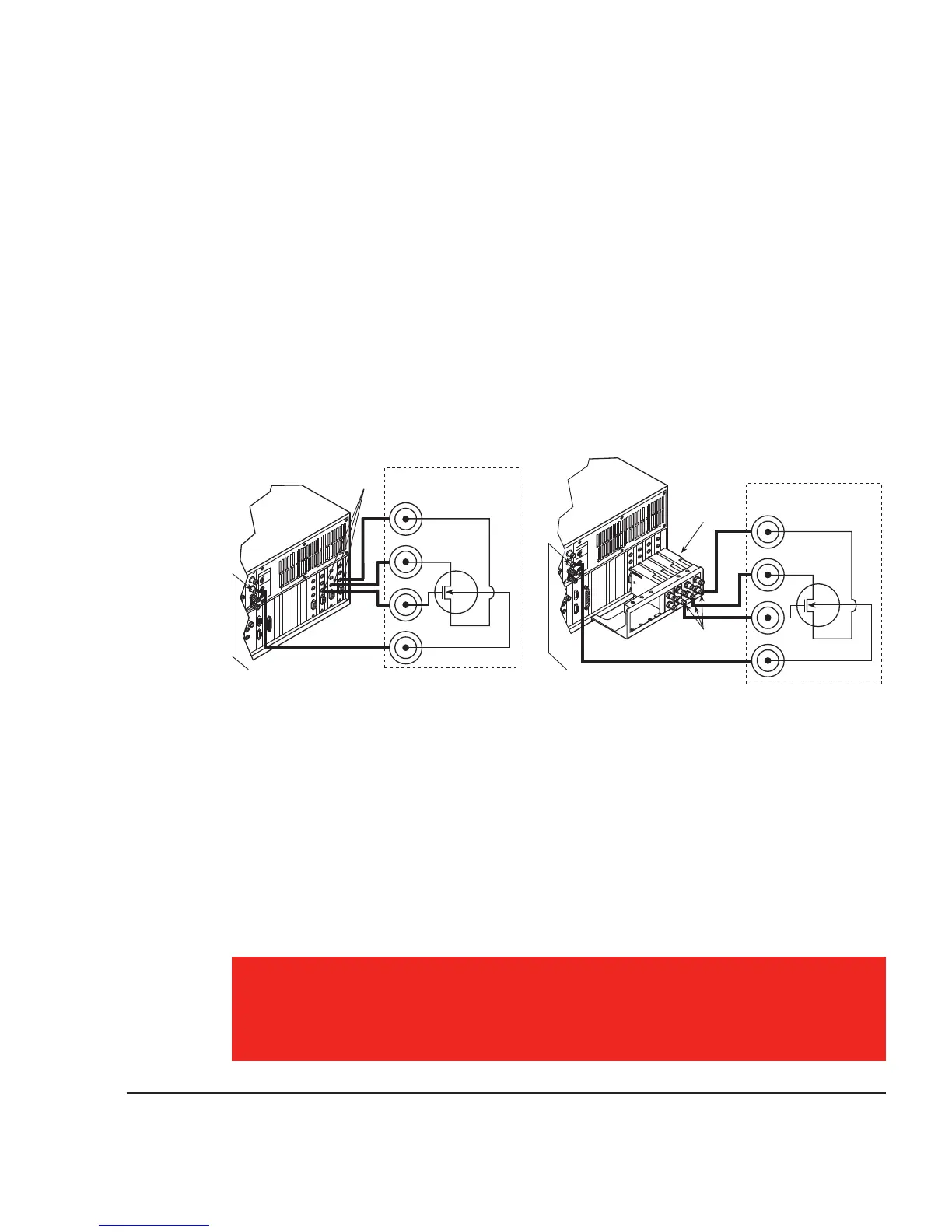

Figure 3: DUT test fixture connections to 4200-SCS
Step 4 Power-up & log-in
A. Make sure the power switch is in the O (out) position. The POWER switch is located on the front panel
in lower right-hand corner.
B. Plug the male end of the line cord into a properly grounded AC line power receptacle.
C. Turn on the 4200-SCS by pushing in the POWER switch to the I (in) position.
D. When prompted, simultaneously press Ctrl - Alt - Del.
E. At the KIUSER prompt, press ENTER. There is no password for this account.
CAUTION When first starting a KTE-Interactive software tool, you must
answer “Yes” to an on-screen license agreement. Answering
“No” makes your system nonfunctional until you reinstall the
software.
