Keithley 4200A-SCS Quick Start Guide

Safety
Introduction
To connect the interlock cable:
1. Connect one end of the supplied interlock cable (part
number 236-ILC-3) to the rear panel of the 4200A-SCS.

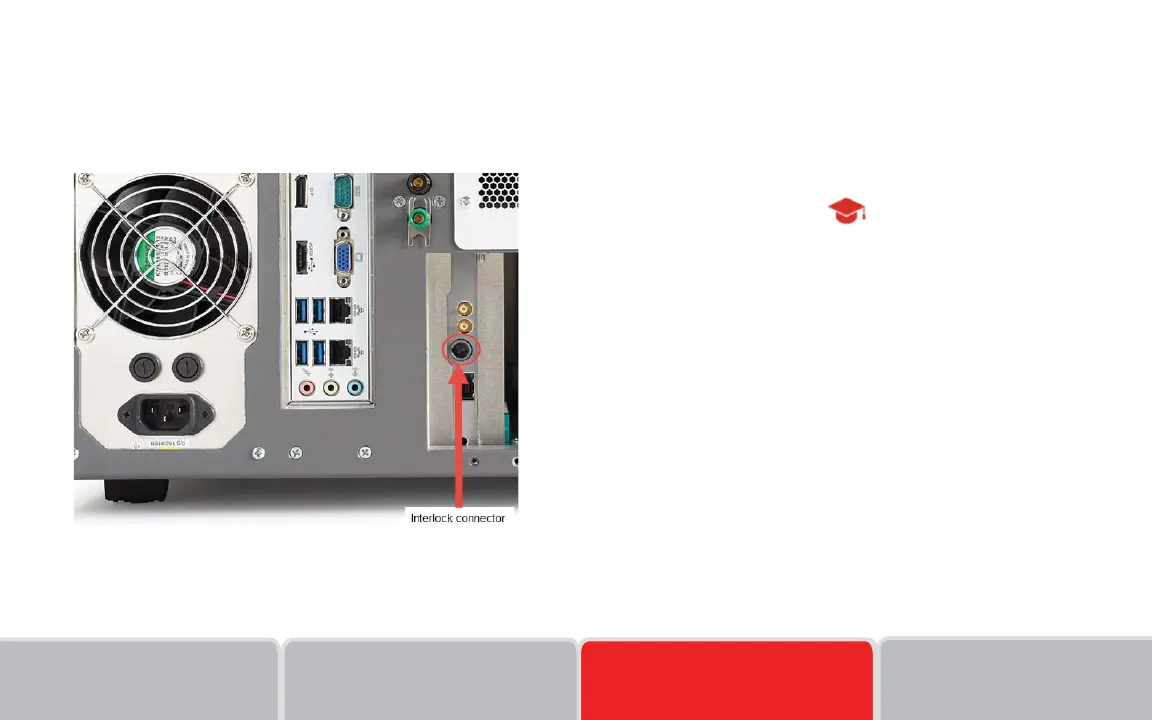

The location of the rear panel interlock connector is shown
in the following graphic.
2. Connect the other end of the connector to the test fi xture.
Test connections
If you are testing discrete devices, you need a test fi xture that is
equipped with 3-lug triaxial connectors. The 8101-PIV test fi xture,
which can be purchased from Keithley Instruments, allows the
4200A-SCS to be connected to a discrete device.
For connections to a probe station for wafer testing, see the
4200A-SCS Learning Center
.
Safety
Introduction
FAQs
Next steps
Connect
