3. Press the appropriate function button.
4. Select an appropriate range or autorange.
5. Zero correct the instrument if it is not reading zero.
6. Apply the signal to the triax input connector on the mar panel.
7. Turn zero check off.
Coulombs:
1. Turn zero check on.
2. Press the COUL button.
3. Select an appropriate range or autorange.
4. Zero correct the instrument if it is not reading zero.
5. Turn zero check off.
6. Turn suppress on to cancel the small amount of charge error in-
troduced by turning zero check off.
7. Apply the signal to the triax input connector on the rear panel.
I
‘GRN
“SUPPLIED INPUT CABLE
MODEL 617

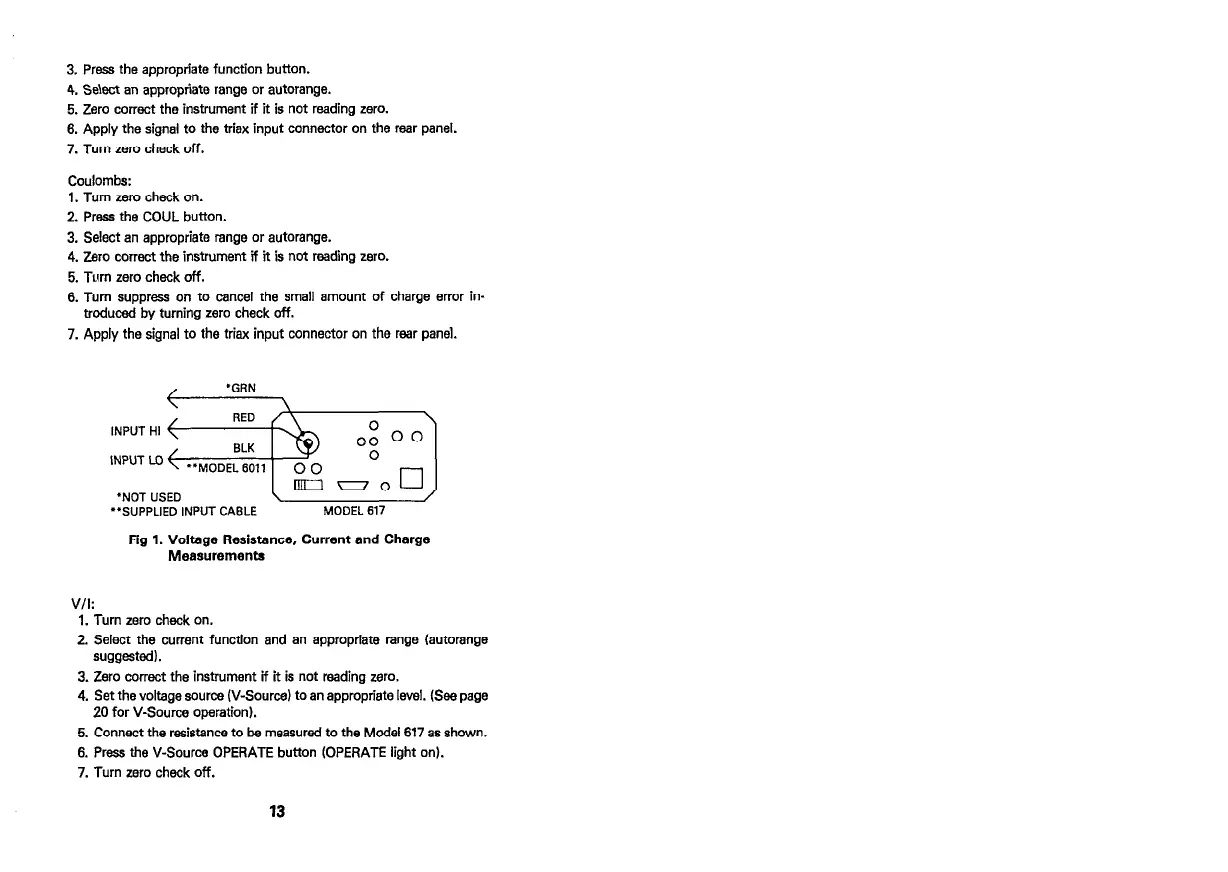

Fig 1. Voltage Resistance, Current and Charge
Measurements
VII:
1. Turn zero check on.
2. Select the current function and an appropriate range fautorenge
suggested).
3. Zero correct the instrument lf it is not reading zero.
4. Set the voltage source (V-Source) to an appropriate level. (See page
20 for V-Source operation).
5. Connect the resistance to be measured to the Model 617 as shown.
6. Press the V-Source OPERATE button (OPERATE light on).
7. Turn zero check off.
13
