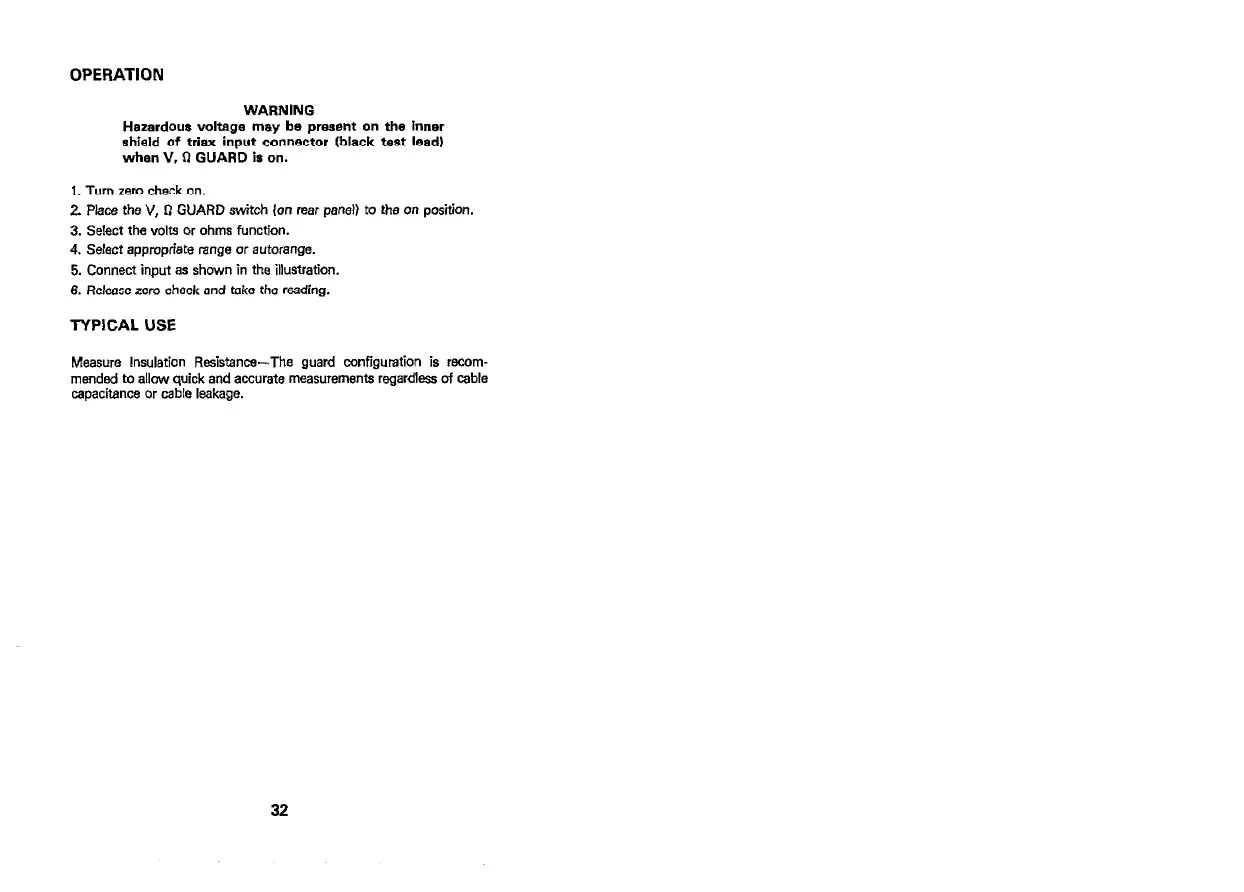

WARNING
Hazardous voltage may be present on the inner
shield of triax input connector (black test lead)
when V. fl GUARD is on.
1. Turn zero check on.
2 Place the V, Q GUARD switch (on rear panel) to the on position.
3. Select the volts or ohms function.
4. Select appropriate range or autorange.
5. Connect input as shown in the illustration.
6. Release zero check and take the reading.
TYPICAL USE
Measure Insulation Resistance-The guard configuration is recom-
mended to allaw quick and accurate measurements regardless of cable
capacitance or cable leakage.
32
