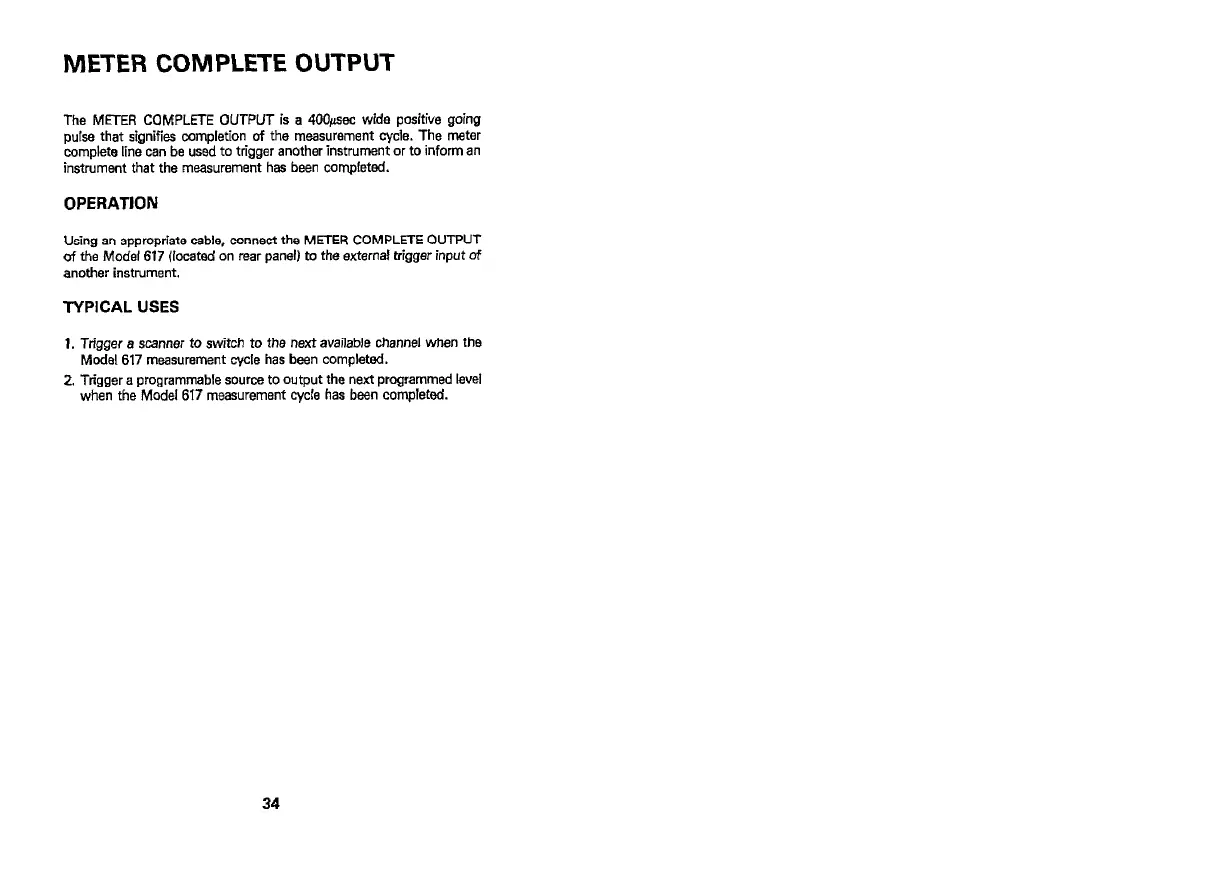

The METER COMPLETE OUTPUT is a 4O@seo wide positive going
pulse that signifies completion of the measurement cycle. The mater
complete line can be used to trigger another instrument or to inform an
instrument that the measurement has bean completed.
OPERATION
Using an appropriate cable, connect the METER COMPLETE OUTPUT
of the Model 617 (locatacl on rear panel) to the atierna! trigger input of
another instrument.
TYPICAL USES
1. Trigger a .scanner to switch to the next available channel when the
Model 617 measurement cycle has been completed.
2. Tn’gger a programmable source to output the nex3 programmed level
when the Model 617 measurement cycle has been completed.
34
