1-22 Front Panel Operation Model 6517A Getting Started Manual
External temperature and relative humidity
measurements
The Model 6517A can make external temperature measurements from -25°C to 150°C
using the Model 6517-TP type K thermocouple (which is a supplied accessory).
The Model 6517A can make relative humidity measurements (0 to 100%) using the Model
6517-RH humidity probe (which is available as an option).
Connections
The Models 6517-TP (thermocouple) and 6517-RH (humidity probe) connect to the rear
panel connectors labeled “TEMP TYPE K” and “HUMIDITY” as shown in Figure 1-8.
NOTE It is recommended that the thermocouple junction of the Model 6517-TP be
electrically insulated from ground and voltage potentials. Erroneous reading
will result if the thermocouple comes in contact with ground or a voltage
potential.

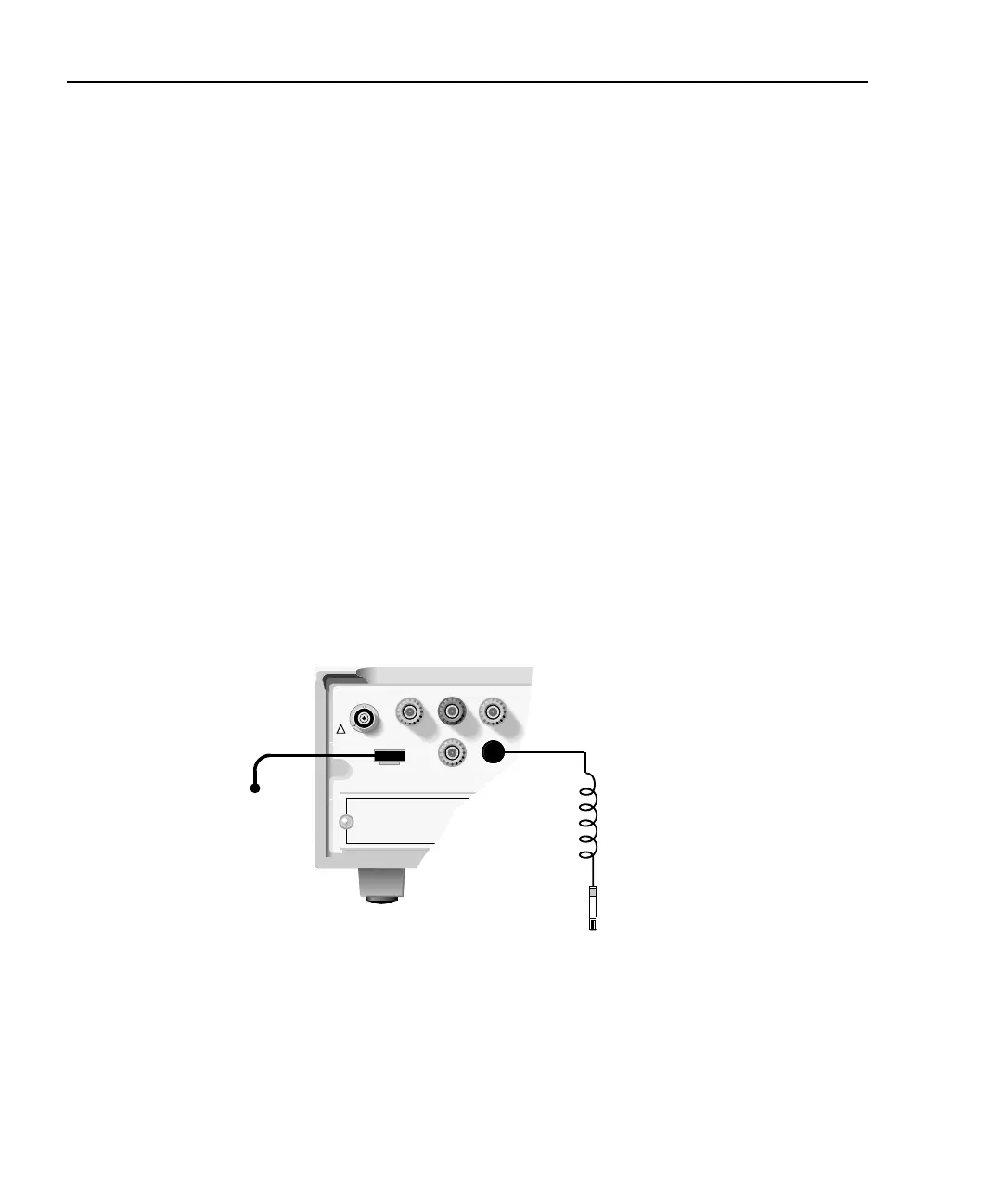

Figure 1-8
External temperature and humidity
6517A
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
Model 6517-TP
Thermocouple
INPUT
250V PEAK
COMMON
!
LINE RATING
90-134VAC
180-250VAC
50, 60, 400HZ
55VA MAX
PREAMP OUT
250V PEAK
V SOURCE
LO
Model 6517-RH
Humidity Probe
Extension Cable (P/N CA-129-1)
