Model 6517A Getting Started Manual Measurement Options 2-3

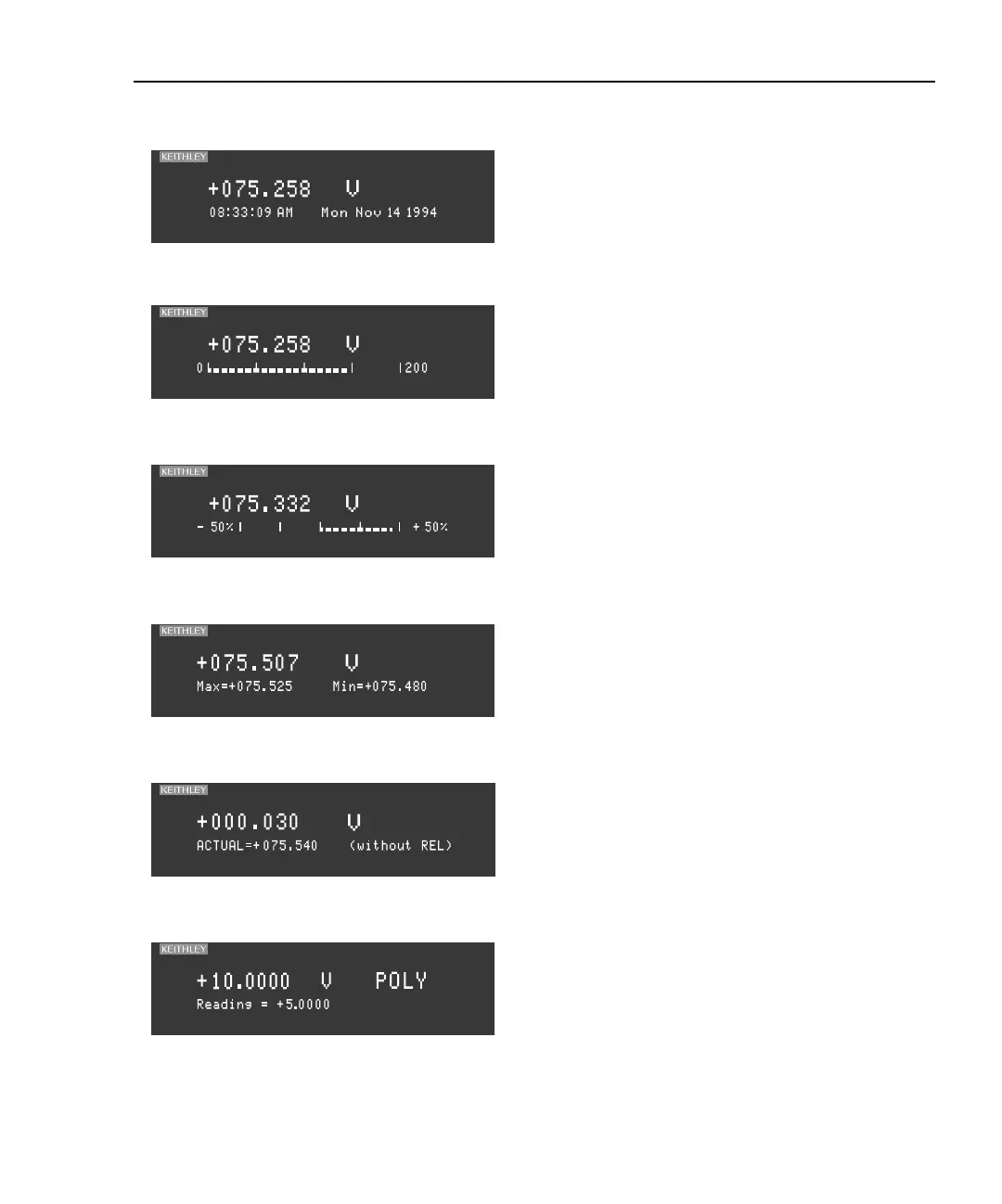

Time, Day, and Date — This display provides the

time, day of week, and the date. The time, date and

format (12-hour or 24-hour) are set from the CLOCK

option of the GENERAL MENU (see main Menu).

6517 ELECTROMETER/HIGH RESISTANCE METER

FILT 4W ARM

Bar Graph — The bar graph is a graphical represen-

tation of the reading with zero at the left end. Each

full segment of the bar represents approximately 4%

of the range limit.

6517 ELECTROMETER/HIGH RESISTANCE METER

FILT 4W ARM

Zero-centered Bar Graph — The zero-centered bar

graph is a graphical representation of the reading

using plus/minus limits with zero in the center. Each

full segment represents 10% of the limit.

6517 ELECTROMETER/HIGH RESISTANCE METER

FILT 4W ARM

Maximum and Minimum — This display shows the

maximum and minimum readings that have occurred

since the display was entered. Maximum and mini-

mum values are reset by pressing the present function

key or by leaving the display.

6517 ELECTROMETER/HIGH RESISTANCE METER

FILT 4W ARM

Relative and Actual — This display is used with the

rel (relative) feature. While the top line shows the

result of the rel operation, the bottom line shows the

actual (raw) reading.

6517 ELECTROMETER/HIGH RESISTANCE METER

FILT ARMREL

Calculated and Actual — This display is used with a

math calculation. While the top line provides the

result of the math calculation, the bottom line pro-

vides the raw reading.

6517 ELECTROMETER/HIGH RESISTANCE METER
