Keithley 7001 Quick Reference Guide

22
&
&
&
&
&
&
&
PON = Power On URQ = User Request CME = Command Error EXE = Execution Error DDE = Device - Dependent Error QYE = Query Error OPC = Operation Complete
To Event Summary Bit (ESB) of Status Bite Register (See Figure 3).
* ESR ? * ESE ? * ESE
OR
(B15-B8)
PON
(B7)
URQ
(B6)
CME
(B5)
EXE
(B4)
DDE
(B3)
QYE
(B2) (B1)
OPC
(B0)
(B15-B8)
PON
(B7)
URQ
(B6)
CME
(B5)
EXE
(B4)
DDE
(B3)
QYE
(B2) (B1)
OPC
(B0)
Standard Event Status Register Standard Event Status Enable Register
& = Logical AND
OR = Logical OR

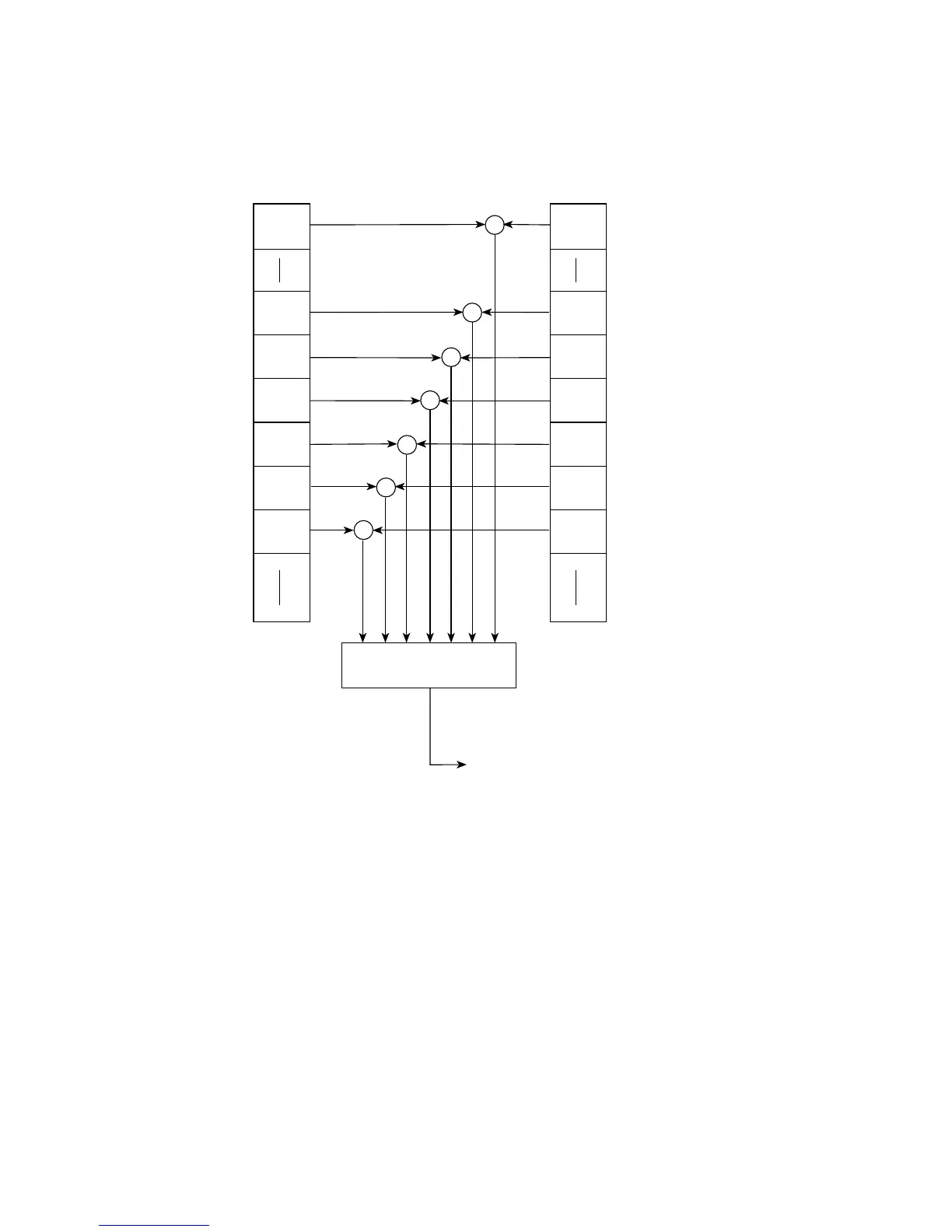

Figure 1: Standard event status
