S530 Parametric Test System Administrative Guide Section 2: S530 site preparation and installation
S530-924-01 Rev. D / September 2017
10. Unlock the two wheels (casters) that are on the front of the S530 system cabinet by moving the
locks up.

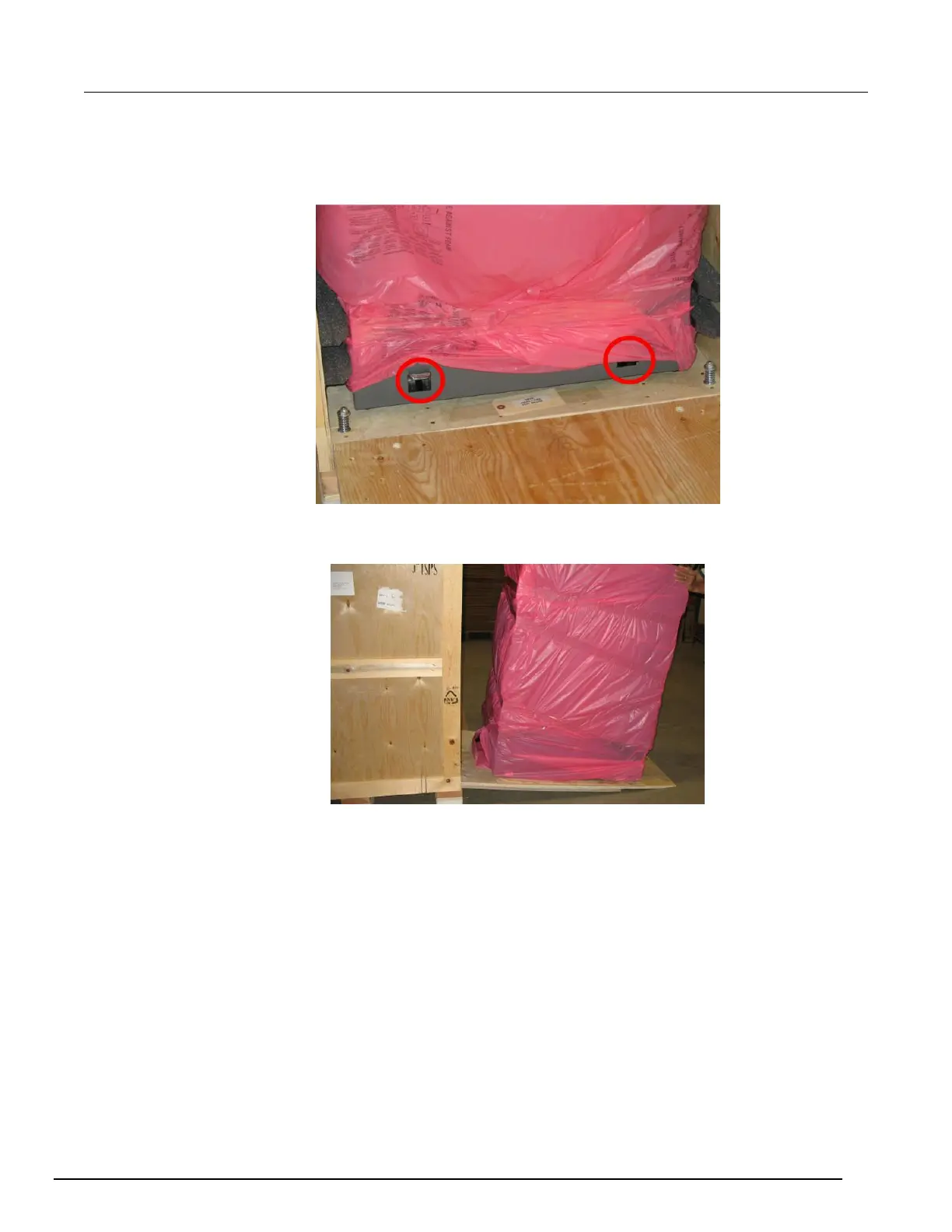

Figure 14: System caster brakes
11. With two people, slide the S530 system cabinet down the ramp.
Figure 15: Sliding the system down the ramp
