Keithley S530 Administrative Guide

Section 5: Instrument specifications and documentation S530 Parametric Test System Administrative Guide
5-12
S530-924-01 Rev. D / September 2017
S530 KTE communications diagrams
The S530 KTE System uses both ethernet and GPIB to communicate with and control the
instruments. The diagrams shown in the following figure show how the instruments are connected to
each other and what type of communications are used.
The following figure shows three and four 2636A/B source-measure units. However, the system only
requires one 2636A/B (you can have up to four).

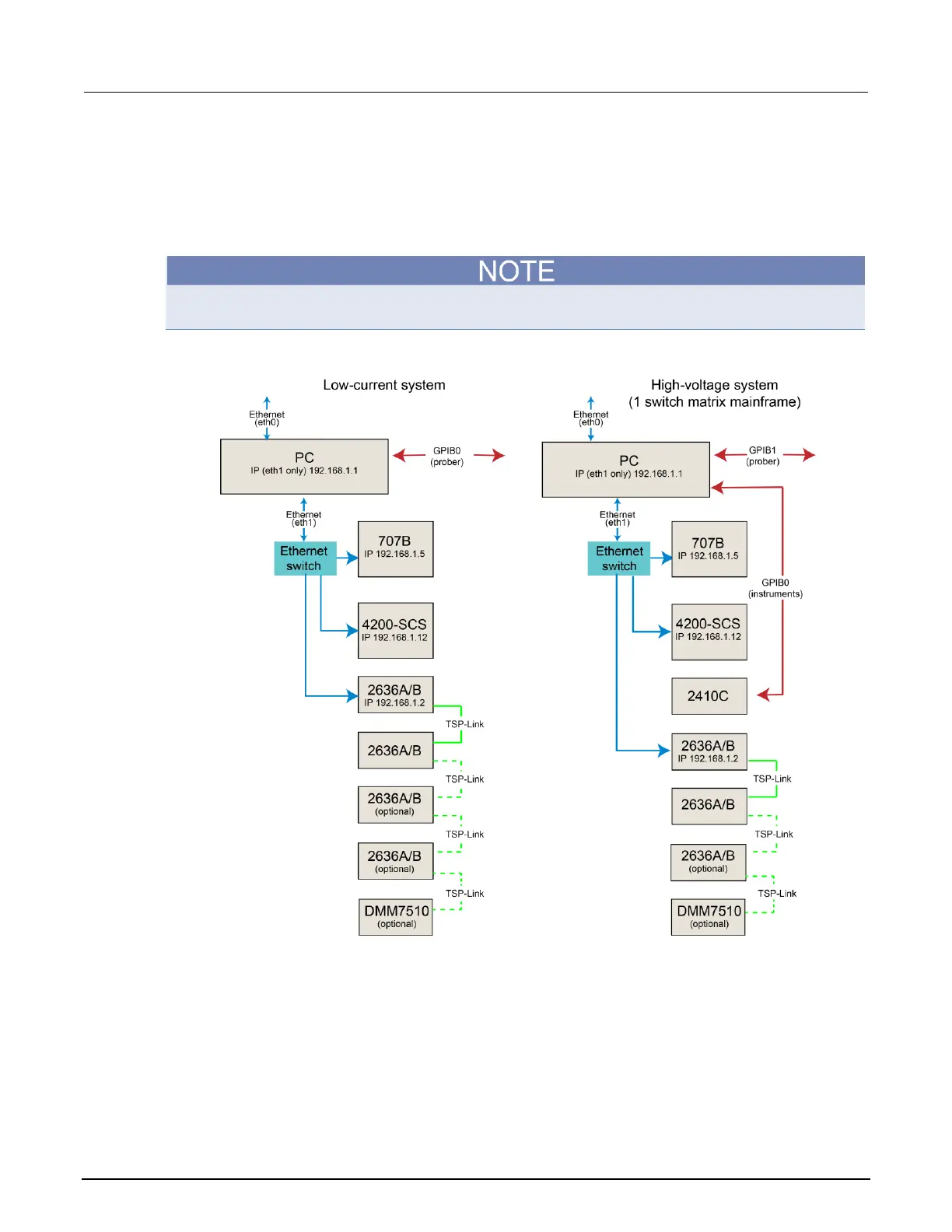

Figure 55: S530 KTE communications diagrams 1 and 2
