Section 2: S530 site preparation and installation S530 Parametric Test System Administrative Guide
S530-924-01 Rev. D / September 2017

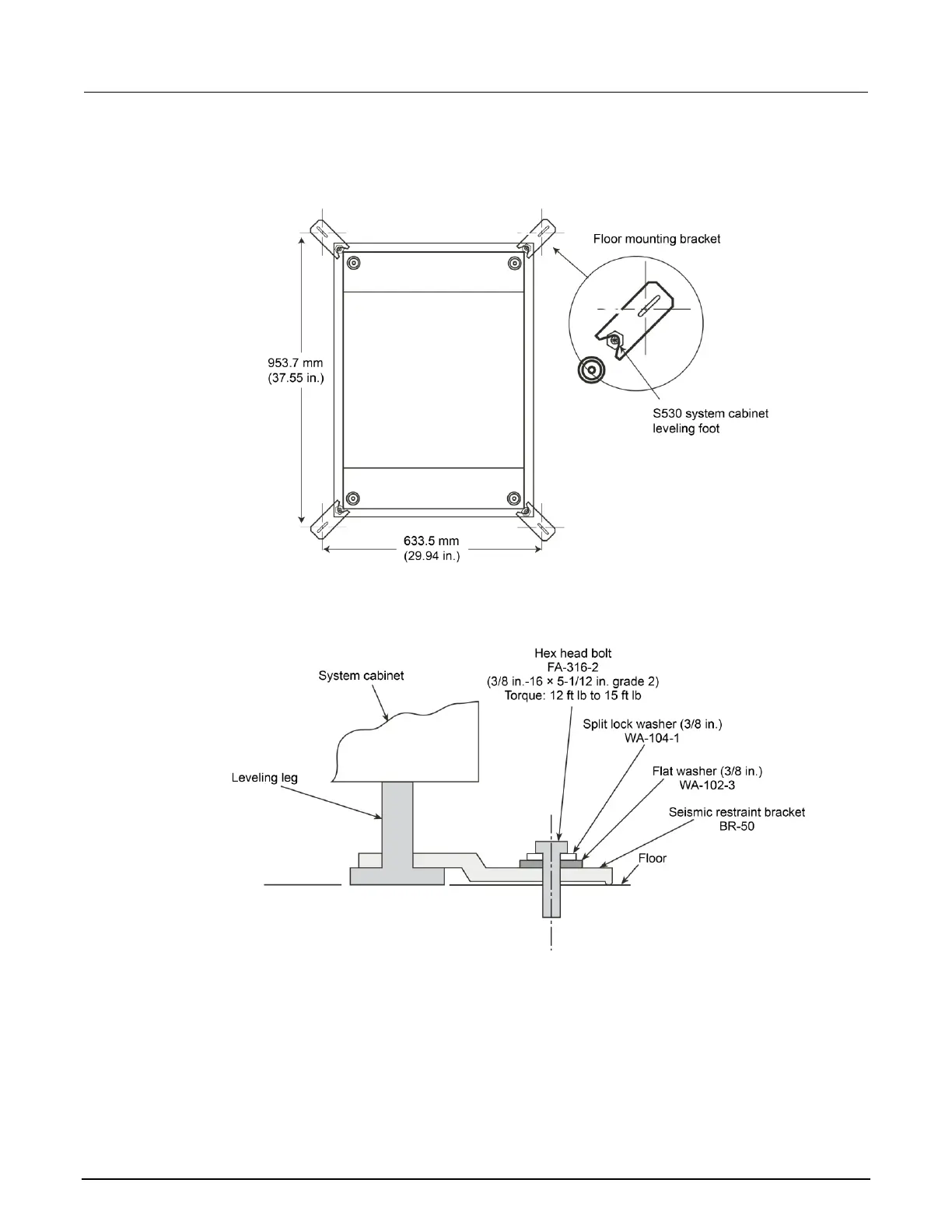

The following figure shows the restraint brackets and bolt installation dimensions for the system
cabinet.
Figure 31: S530 system securement dimensions
The following figure shows how a floor-mounting bracket is installed. Keithley part numbers are
included for the required hardware.
Figure 32: S530 system cabinet floor mount
