Section 2: S530 site preparation and installation S530 Parametric Test System Administrative Guide
2-26
S530-924-01 Rev. D / September 2017
5. Mark the position of the mounting holes to the floor with a marker.
6. Remove the mounting brackets and also mark the location of the cabinet leveling legs.
7. Lower the cabinet and move as needed for drilling and installing the customer-supplied floor
anchors.
Anchors should have a minimum pullout rating of 450 kg (1000 lb) each. Install 16 anchors for
maximum protection.
8. Return the cabinet to marked locations on the floor and use the leveling legs to lift the cabinet to
the proper height.
9. Attach the mounting brackets to the corners with the mounting hardware provided (16 screws and
washers).
10. Fasten brackets to the floor with washers and grade-five (or higher) bolts (you must supply the
bolts and washers).

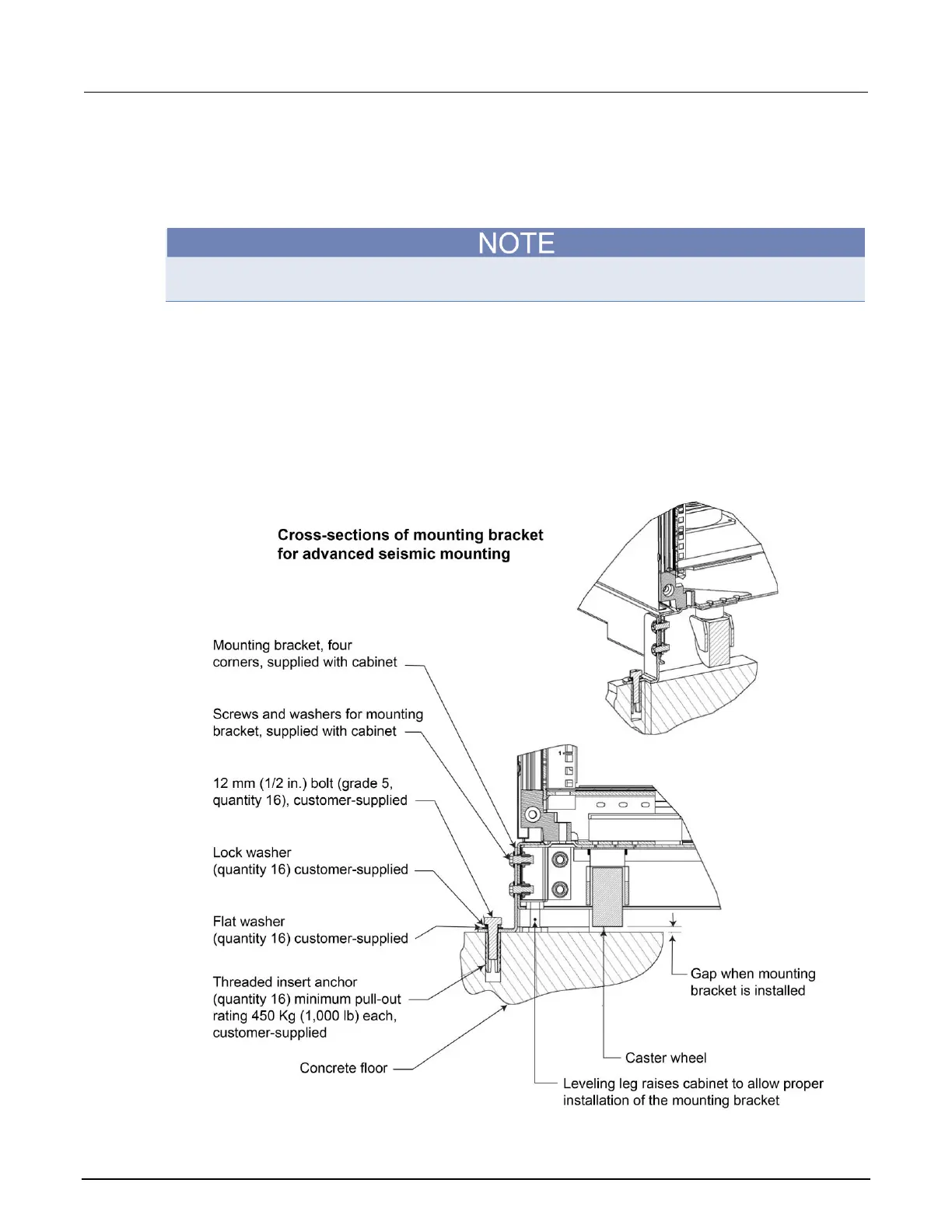

The following figure shows how a floor-mounting bracket is installed.
Figure 34: S530 advanced cabinet floor mount
