S530/S540 KTE Linear Parametric Test Library (LPTLib) User's Manual Section 3: LPTLib command refer
ence
S530-900-01 Rev. E / September 2017 3-87

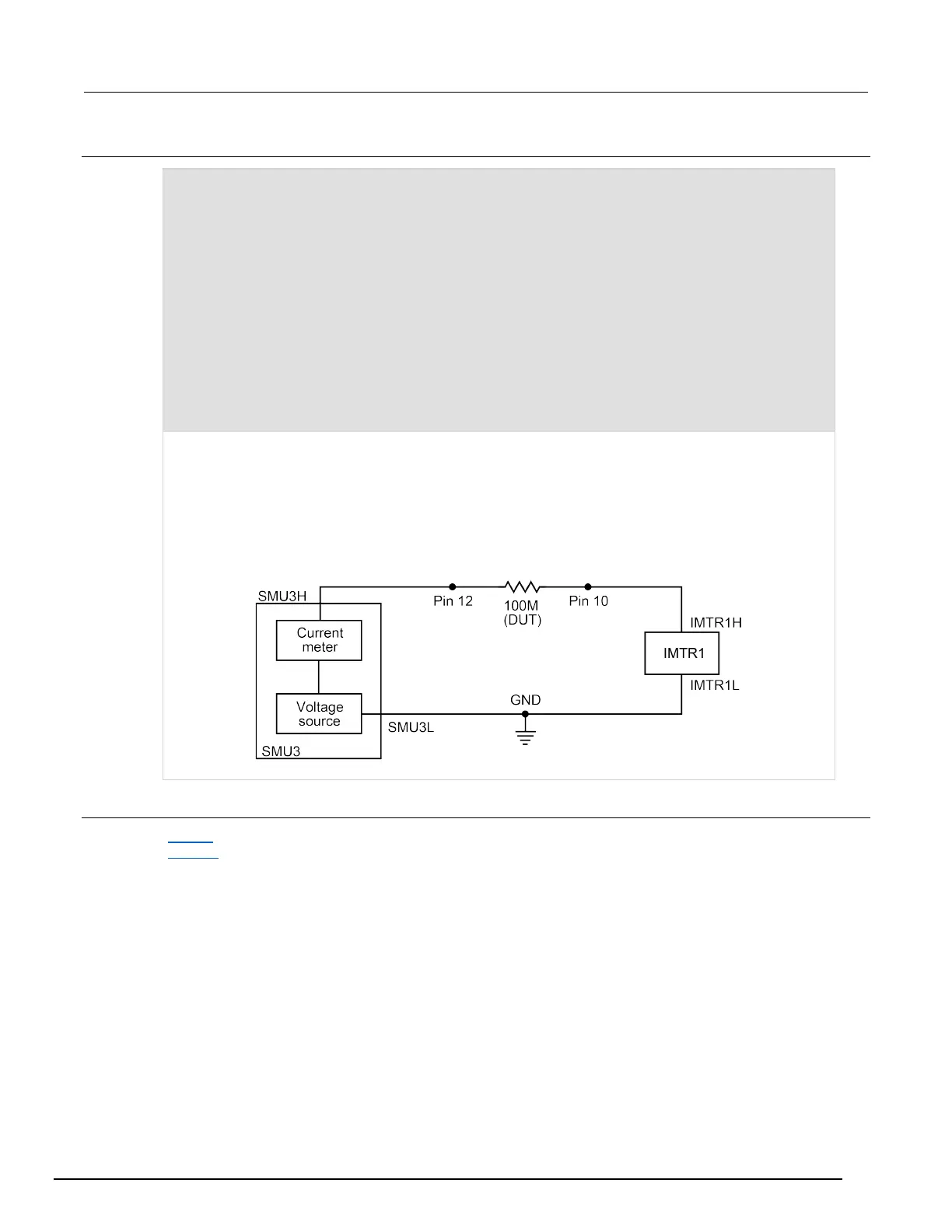

Example
double meascur;
.
.
conpin(SMU3, 12, 0); /* Make connections. */
conpin(SMU2, 10, 0);
setimtr(SMU2);
.
.
forcev(SMU3, 0.1); /* Perform the test. */
ssmeasi(SMU2, &meascur, 0.1, 300, 0.015); /* Steady */
/* state measurement /*
/* with delta of 0.1%, with */
/* maximum of 300 readings */
. /* before error, wait 15 ms */
. /* between readings. */
This example makes a series of measurements and tests to verify if the present measurement and the
previous measurement are within 0.1%. If the measurements are within 0.1%, the result of the last
measurement is stored and the program continues. If the measurements are not within 0.1%, the program
waits 15 ms before making another measurement. It then compares this measurement with previous
measurements. If the measurements are within 0.1%, the result of the last measurement is stored and the
program continues. If the measurements are not within 0.1% it repeats the comparison until the change is
within 0.1%. If, after 300 attempts, the change is not within the specified limit, the following error is
returned:
"MEAS_NOT_PERFORMED (l.000E23)."
Also see
rangeX (on page 3-60)
smeasX (on page 3-84)
