3: LPTLib command reference S530/S540 KTE Linear Parametric Test Library (LPTLib) User's Manual
3-20 S530-900-01 Rev. E / September 2017

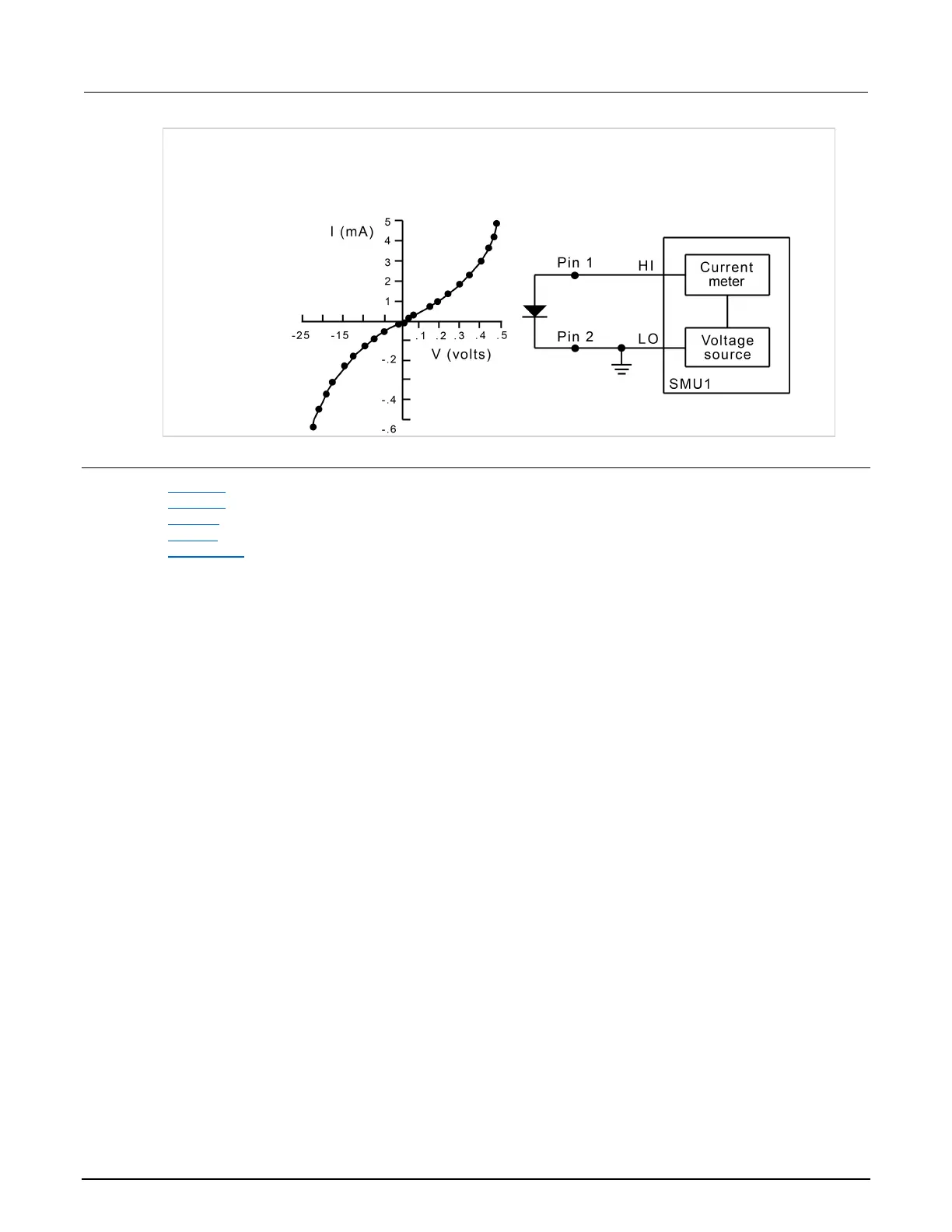

This example collects data and creates a graph that shows the forward and reverse conduction
characteristics of a diode. The clrtrg command allows multiple triggers to be programmed twice in the
same test sequence. Each result is returned to a separate array.
Equation 2: Diode conduction characteristics
Also see
asweepX (on page 3-8)
bsweepX (on page 3-15)
searchX (on page 3-71)
sweepX (on page 3-88)
trigXg, trigXl (on page 3-91)
