Keithley S530 User Manual

Section
3: LPTLib command reference S530/S540 KTE Linear Parametric Test Library (LPTLib) User's Manual
3-46 S530-900-01 Rev. E / September 2017
Example
double if46, vf47;
.
.
if46 = 50e-3;
.
.
conpin(3, GND, 0);
conpin(SMU1, 2, 0);
forcei(SMU1, if46); /* Forward bias the diode; */
/* set SMU current */
/* limit to 50 mA. */
measv(SMU1, &vf47); /* Measure forward bias; */
/* return result to vf47. */

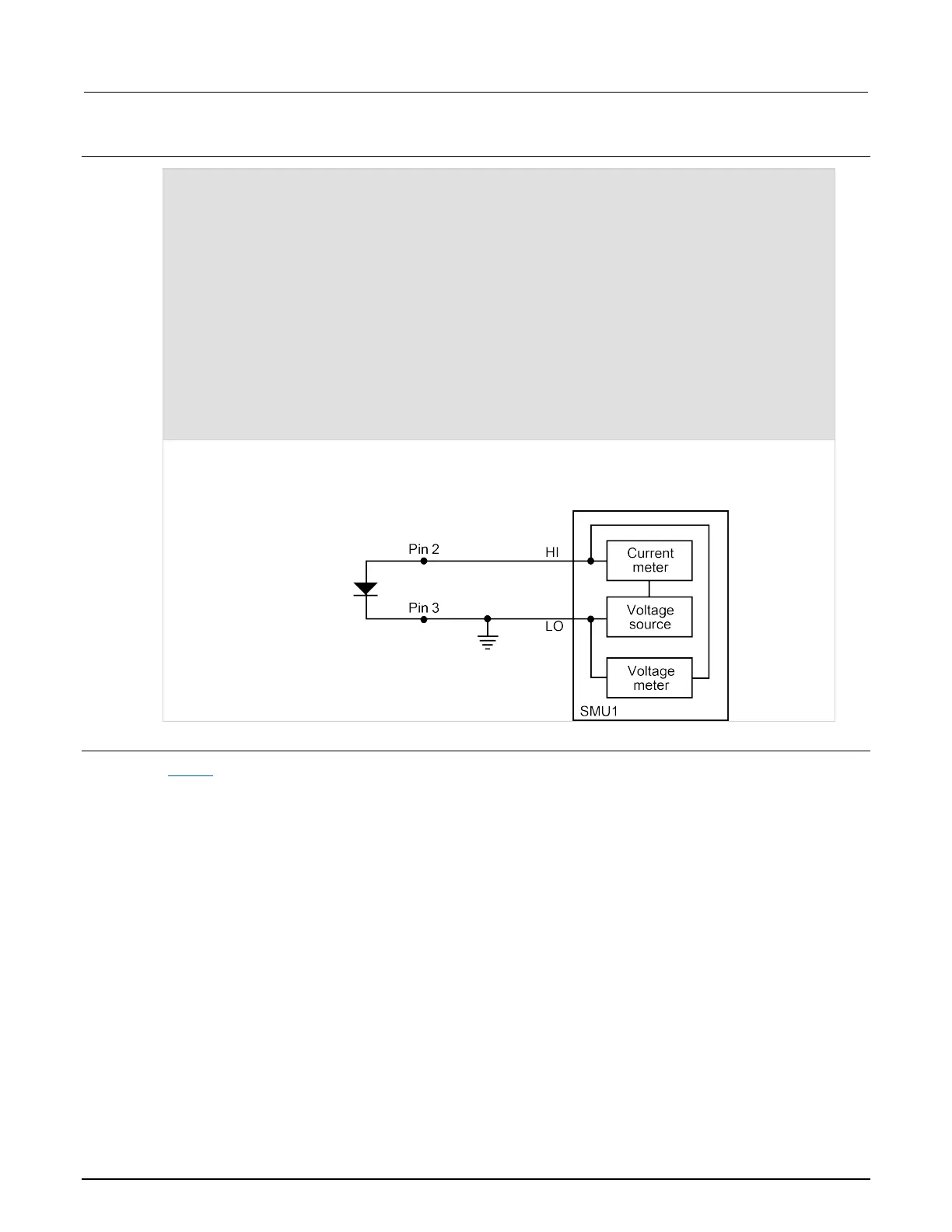

In this example, the forward bias voltage of the diode is obtained from a single source-measure unit
(SMU).
Equation 6: Diode voltage forward bias
Also see
rangeX (on page 3-60)
