The single red locking Bolt
secures the E30 to the
wall bracket.
Screw a 1/4”BSP 90 Deg. elbow (not
supplied) into the process port on the
E30. The inlet port on the elbow must
be aligned downward to accept a
capillary tube adaptor and to stand
clear of the wall.

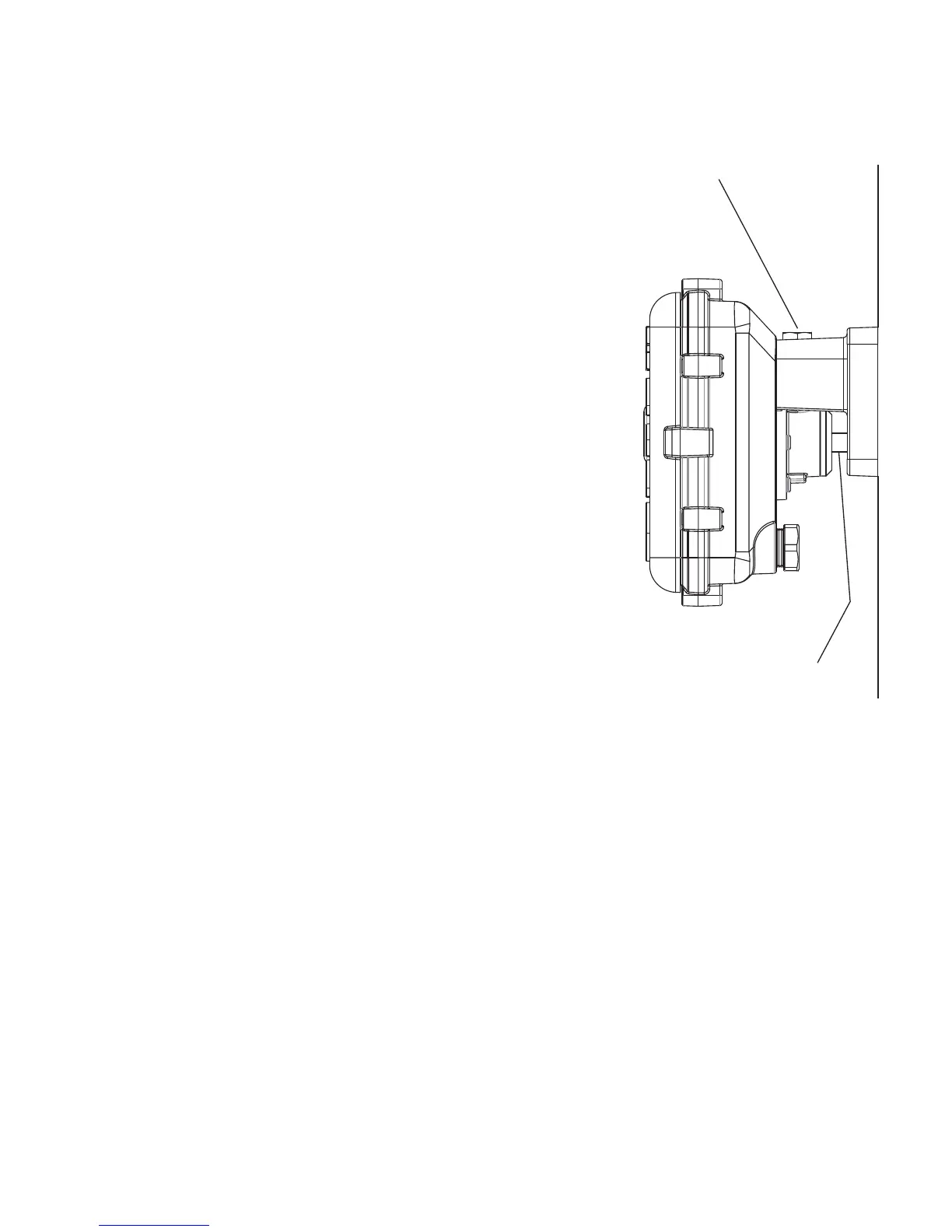

TYPICAL WALL MOUNTED E30
