1）Technical Parameter
Execute Standard： GB/T 7724-2008 n=3000
Accuracy Class： III pi =0.5
Input Sensitivity： ≥1.5uV/e
A/D Conversion Mode： adopt Δ－Σ technology, 24bit
Load Cell Bridge Voltage： DC +5V, 1 to 12pcs 350Ω resistance stain gauge load cell can be connected.
Load Cell Connection Mode：6 wires (long distance compensation, compensation distance ≤50 meters)
Display： 7 units LED, 7 state indicate lights, 3 power indicate lights，1AC indicate light
Clock：Display year/moth/date, hour/minute/second, auto leap year, leap month. No effect by power-off.
Remote display port： current loop/RS232 output，bound rate: 600bps transmission distance ≤30meters
Serial communication port:
Transmission Mode：RS232，Optional RS485 Transmission Distance：RS232≤30meters（RS485≤1200meters）
Bound Rate： 600/1200/2400/4800/9600 Optional
Print port： standard parallel output port, can connect with TpuP16 mini-printer(English), KX － P1121,KX －
P1131,LQ300K＋Ⅱ,LQ1600K, TM800,LQ-680K,DS-300 and LQ-730K/630K/635K etc.
Data storage ：（can be customized）
Vehicle No. and Tare：≤200pcs Cargo No.：≤100pcs Weighing Record：≤500 groups
Power Supply：
AC：AC110~220V，50~60Hz Accessorial power supply：Outside connect with 6V/10Ah maintenance-free
lead-acid battery. Can be charged by indicator
Operation Environment
Working Temperature：0℃～40℃ Working Humidity：≤85％（RH）No condensation
Storage Environment：
Storage Temperature：－20℃～60℃ Storage Humidity：≤95％（RH）No condensation
Size (mm)： 330 ×220 ×185
Net Weight(Kg)： About 1.5
2）Installation
2.1 Indicator layout

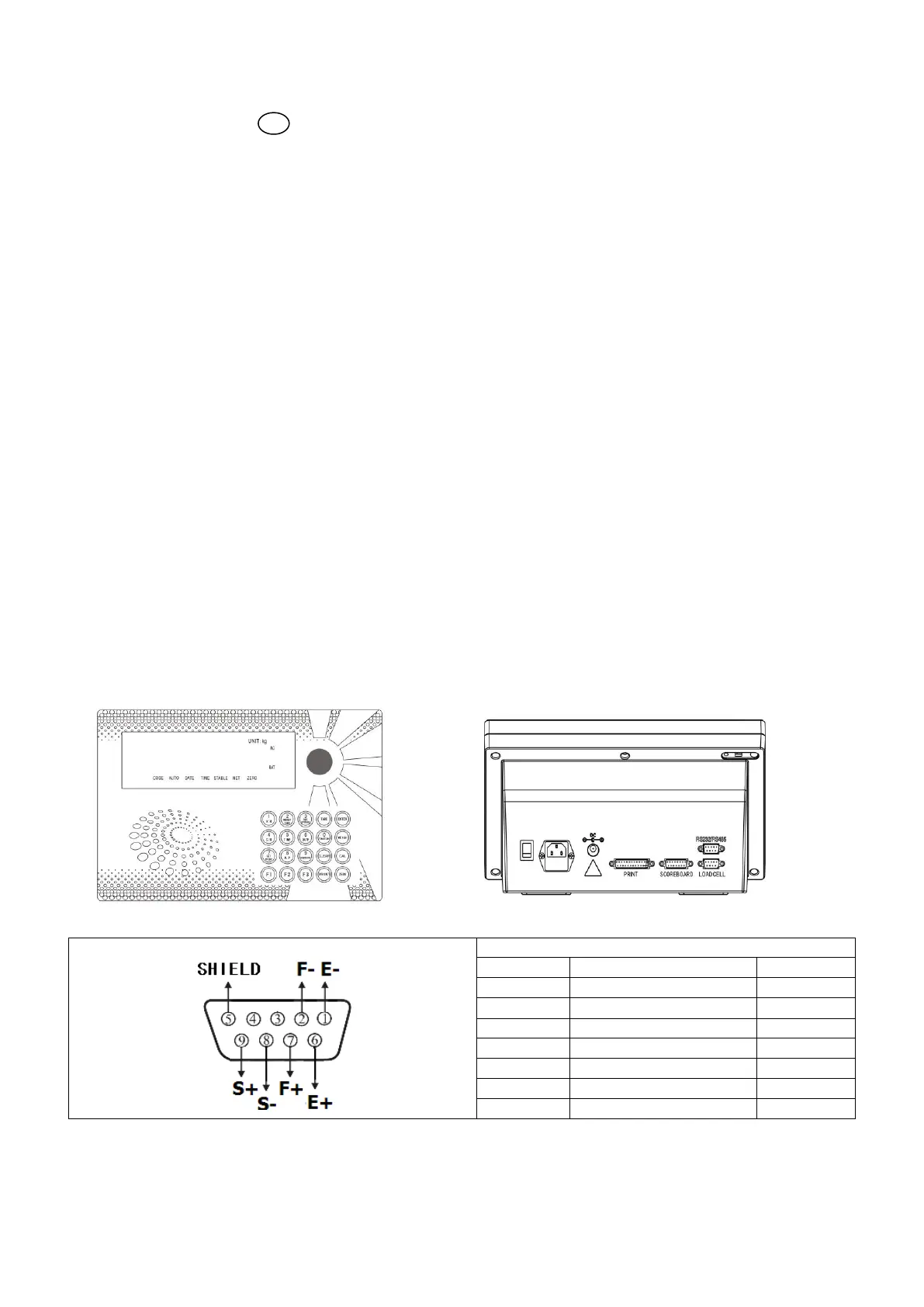

XK3118K9-19 Front Panel layout Back Side layout
2.2 Connection between load cell and indicator
