On-site installation | 997-000120 | 07-2021
Assembly and glazing of burglar resistant elements
according to EN 1627
1. Glazing according to glazing guideline (997-000092-01)
Glazing according to EN 356
2. Fittings
Compression-resistant packing:
- between outer frame and masonry (see installation instruction 997-000120-01) - in case of sliding leaf around the security locking points
3. Fixing of glazing or rather infill
See drawings KELL-16-0055.01, KELL-16-0055.03, KELL-16-0055.04, KELL-16-0062.01, KELL-16-0064.01 to
.03 and KELL-16-0066.01 to .02.
Applies for multipointlockings:
- in class RC2 / RC2 N at least one profile cylinder must be installed according to one of the following criteria:
See drawings KELL-16-0015.01 to .02, KELL-16-0053.01 to .02 and installation instruction 997-000120-01.
4. Fixing to masonry / Compression-resistant packing
The outer frame must be secured with fixing materials according to instruction (Installation instruction
997-000120-01).
Classification of security classes of the burglar resistant elements to walls and glazings (minimum requirements).
RC2
Security class according to EN
1627
Glazing according to
EN 356
P4A
Surrounding walls
Thickness
mm
Masonry according to
DIN 1053 Part 1
Armored concrete
according to DIN 1045
Compressive strength class of
bricks
Mortar class
Thickness
mm
Hardness
class
≥115 ≥12 II ≥100 B 15
5. Control of the compression-resistant packing
For hollow block and light building blocks, appropriate strength supporting activities sould be applied. For wood
framed walls, a structure in accordance with EN 1627 must be taken into account.
6. Verify the engagement of the bolt into the strike holes
7. Fill the residual hollow space between outer frame and masonry
with foam
Aerated concrete
Thickness
mm
Execution
≥170 ≥4
glued
Compressive
strength class of
bricks
Standard
DIN 18525:2006-12 DIN EN 1303:2005-04 DIN 18252:2018-05 DIN EN 1303:2015-08
Class 21, 31 or 71-BZ 4 and 1 4 and C 4 and C
Remarks Digit 7 and 8 in the classification key Digit 3 and 4 in the classification key Digit 7 and 8 in the classification key
- As a protective fitting or a protective rosette according to DIN 18257 can not be used, a drill protection
insert must be fitted to the lock.
A3
Status Änderungen Datum Name
Gezeichnet Kontrolliert
Datum Name
Referenz: Titel: Zeichnungs-Nr.: Maßstab: Mat.:
Allgemeintoleranzen ISO 2768-m
Werkstück- kanten ISO 13715
Schutzvermerk ISO 16016 beachten. Refer to protection notice ISO 16016.
Für diese Zeichnung behalten wir uns alle Rechte vor, auch für den Fall der Patenterteilung, Gebrauchs- oder Geschmacksmustereintragung. Ohne unsere schriftliche Zustimmung darf
weder die Zeichnung selbst, noch Vervielfältigung hiervon oder sonstige Wiedergaben des vollständigen oder auszugsweisen Inhalts Dritten zugänglich gemacht, oder in anderer Weise
missbräuchlich verwendet werden.
This drawing is protected by copyright law. The author reserves all rights, including all patent grants, registered utility models and registered designs. The drawing is to be treated
confidentially and may be used only by the person receiving permission from the author and only for the purpose agreed on. Without the prior written consent of the author, neither
the drawing, nor copies of the drawing, nor other reproductions of the contents, in whole or in part, may be made available to third parties or misused in any other way.
MADE IN
LUXEMBOURG

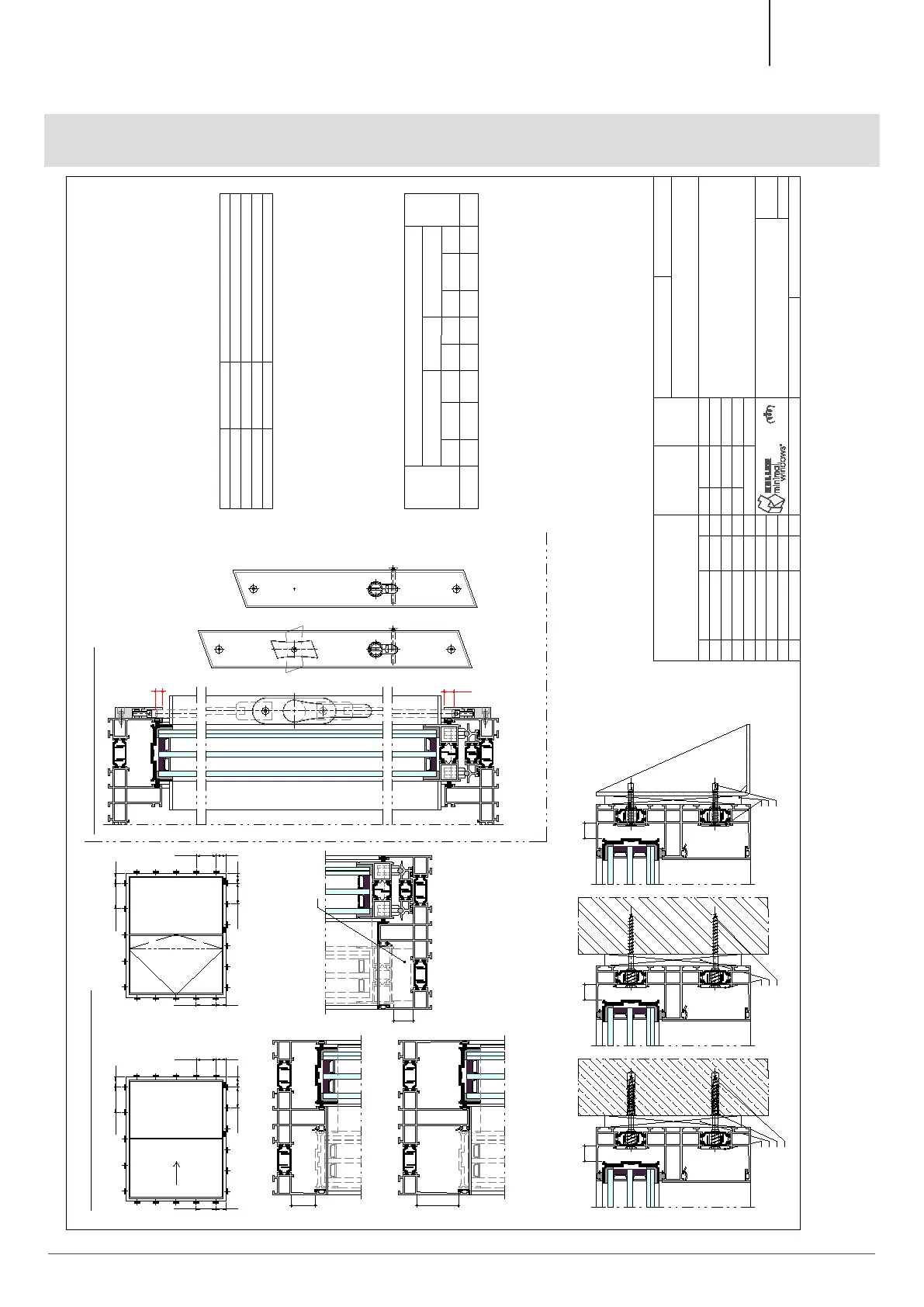

KELLER minimal windows 4+ Fastening to main body & installation acc. EN 1627 KELL-16-0042
1:2
01-en
-
04/2021 04/2021
W.Schulzen
P.Huylebroeck
Festflügelauflage
27
22
11 8
17 17 17
F
max. 350 150
max. 500 150
max. 500
150
max. 500150
F
max. 350 150
max. 500 150
max. 500150
max. 500150
KESO KESO
Type 1 Type 3 Type 4
*
*
47
4. Fixing to masonry / Compression resistant packing
6. Verify the engagement into the strike holes
Packing
Adjustment screw 6mm
Fischer anchor
Fixing sleeve
Packing
Adjustment screw 6mm
Fixing sleeve
Packing
Self drilling screw 6,3mm
Fixing sleeve
To ensure the burglar resistance the handle must be removed in locked
condition.
Masonry
Armored concrete
Wood
Steel
10. Fastening to main body & installation acc. EN 1627
