Programmer dV-22 PP
The conguration of the pressure switch can be changed with the dV-22 PP pro-
grammer.
1
5
2
3
6
4
- 4 - www.keller-druck.com

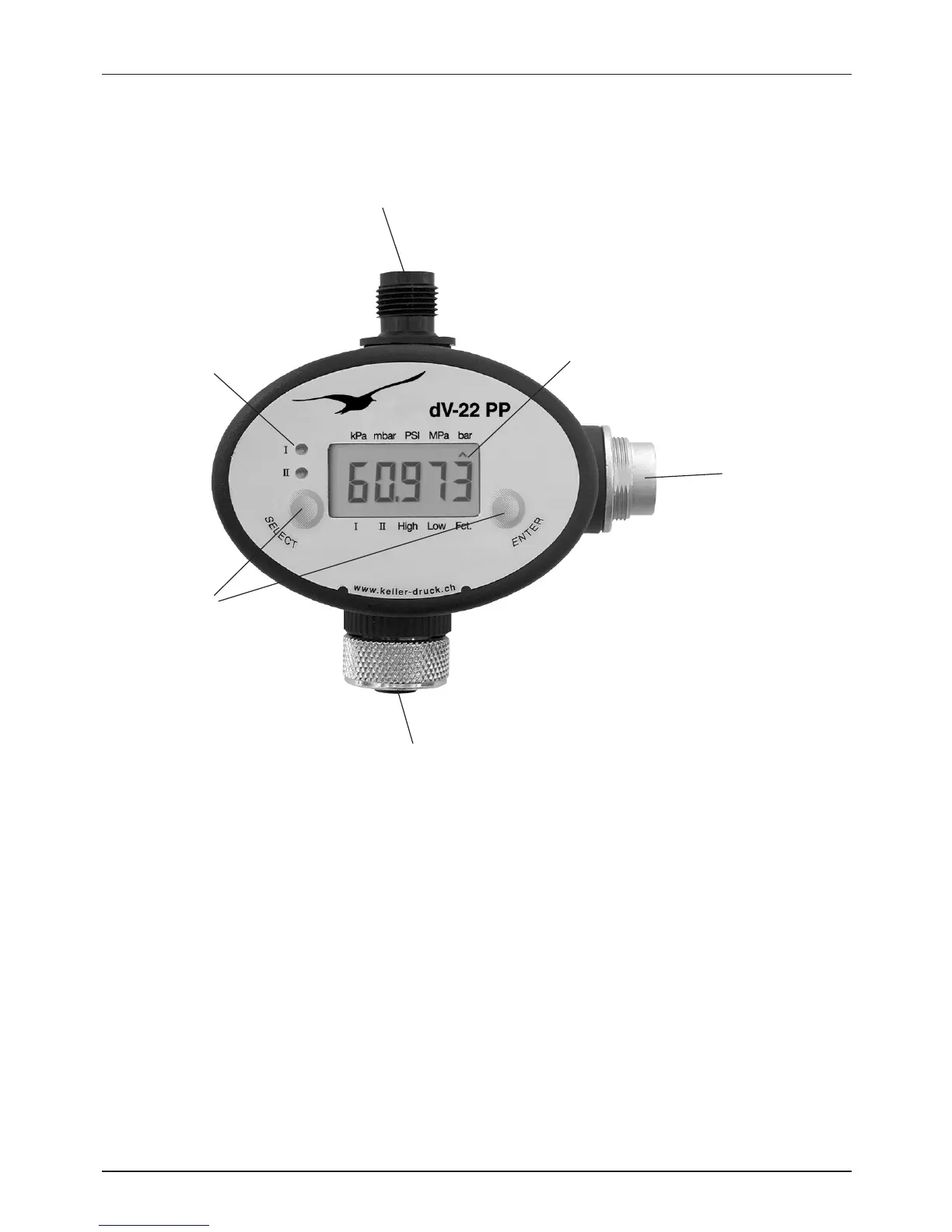

1) M-12 plug Power supply connection (8…40 V DC)
2) 5-pole connector Connection to PC / laptop with a converter (K-107 / K-104B)
3) M-12 socket Connection of the pressure switch
4) LED Indicates the status of the switches (switch 1 and switch 2)
5) LCD Main display
6) Keys SELECT and ENTER
