5.4 Collet Chuck Exchange

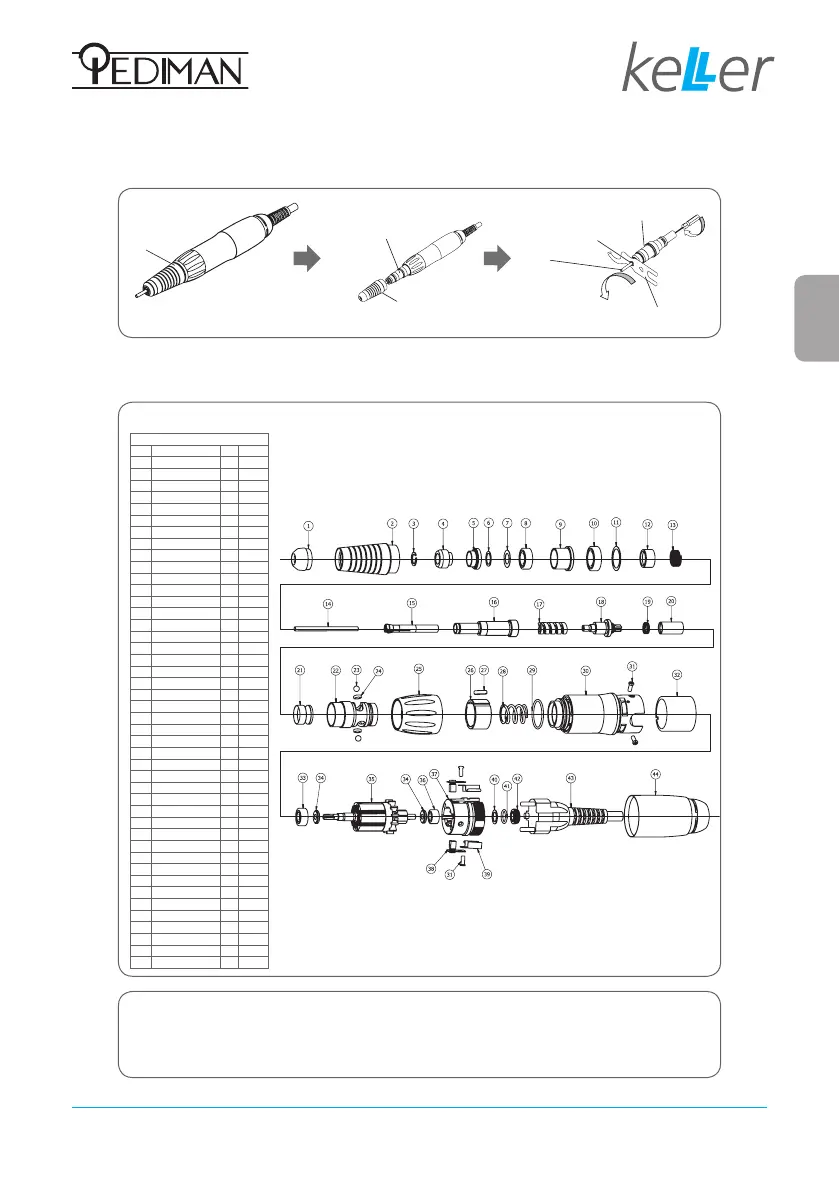

5.5 Handpiece Diagram

Handcap

Parts Enumeration

PART LIST

No NAME QTY P/B

1 NOSE CAP 1

2 HAND CAP 1

3 C-SNAPRING 1

4

INNER DIA COLLAR

1

5 OUT DIA COLLAR 1

6 WAVE WASHER 1

7 FLAT WASHER 1

8 BALL BEARING 1

9 BUSH 1

10 BALL BEARING 1

11 WASHER 1

12 SPRING CASE 1

13 COIL SPRING 1

14 TEST BAR 1

15 COLLET CHUCK 1

16

COLLET CHUCK CASE

1

17

COLLET CHUCK SPRING

1

18

COLLET CHUCK JOING

1

19 COIL SPRING 1

20 DELRIN JOINT 1

21

BALL GUIDE INNER

1

22 HANDLE CAM 1

23 BALL 2

24 BALL RIM 2

25 HANDLE 1

26

BALL GUIDE OUTER

1

27 BALL GUIDE PIN 1

28 COIL SPRING 1

29 O-RING 1

30 MOTOR CASE 1

31 FLAT HEAD BOLT 4

32

ND BOND MAGNET

1

33 BALL BEARING 1

34 WASHER 2

35 ARMATURE ASSY 1

36 BALL BEARING 1

37

BRUSH HOLDER ASSY

1

38 CARBON ASSY 2

39 CONNECTOR 2

40 FLAT WASHER 1

41 O-RING 1

42 CONTROL BOLT 1

43 CORD ASSY 1

44 CAP 1

Handcap

Chuck wrench

Bur

Collet chuck

Spindle Assembly

Spindle Assembly

For the improvement of product quality, product speciﬁcation

and design can be changed without prior notice. However, you

cannot request revision.
