Kemlan CELESTIAL 900 - CELESTIAL 900 INFORMATION

CELESTIAL 900 INFORMATION

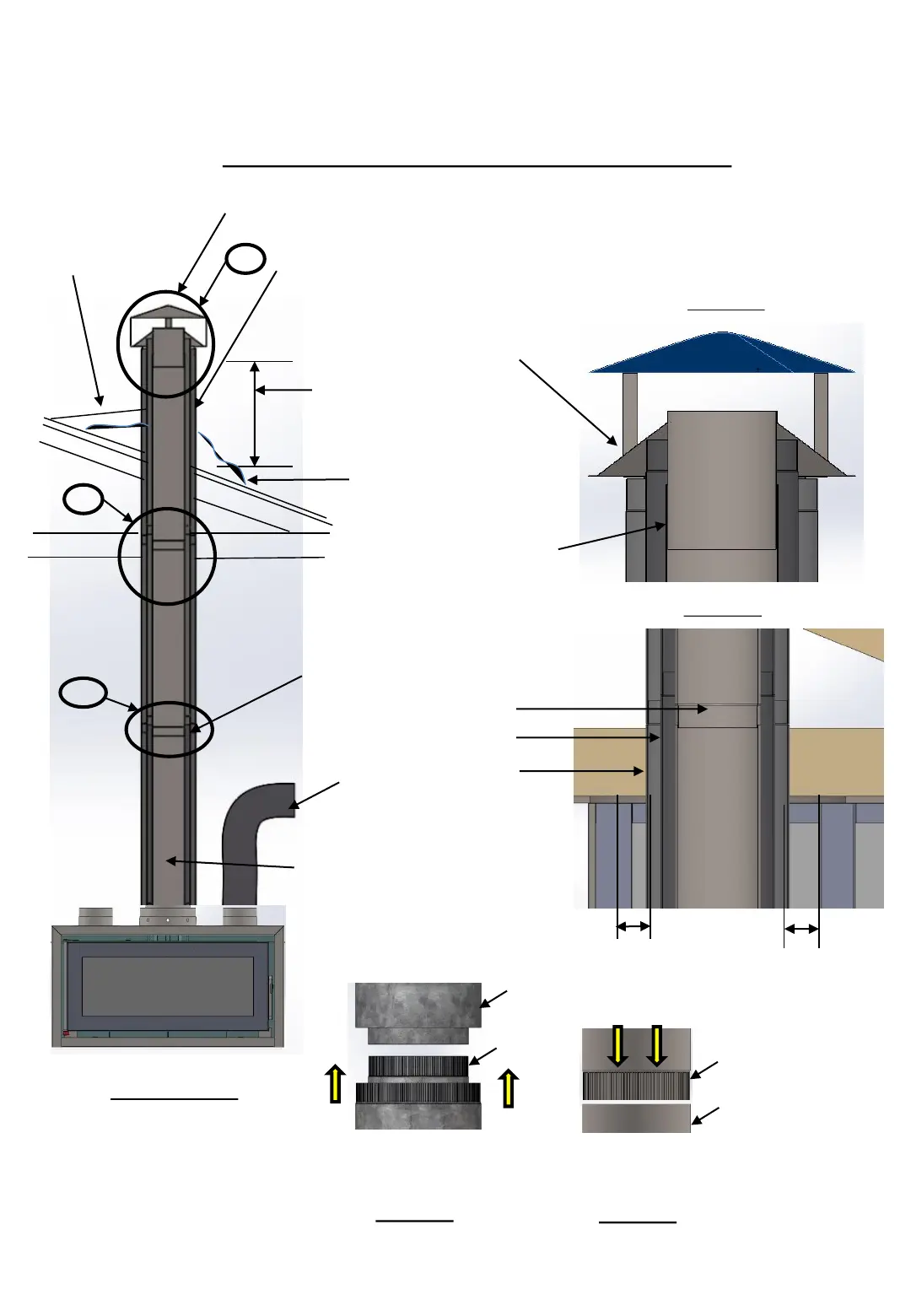

25 MM MIN CLEARANCE
AROUND 10” FLUE
DETAIL B
SUPPORT OUTER FLUE
WITH ANGLE BRACKET
SUPPLIED
ROOF FLASHING
SUPPLIED BY
CONTRACTOR
ALL CASING FLUE PIPES
MUST BE CONNECTED
VIA POP RIVETS SUPPLIED
BY INSTALLER
STAINLESS STEEL
FLUE PIPE. ALL FLUE
PIPES MUST BE
CONNECTED WITH
POP RIVETS
SUPPLIED BY
INSTALLER
STAINLESS STEEL DOUBLE
CONE COWL
DISTANCE ABOVE ROOF LINE
OR 600 MINIMUM ABOVE
RIDGE IF PENETRATION IS 3
METRES OR CLOSER TO
RIDGE
POP RIVET OR SCREW
BRACKETS TO THE OUTSIDE
OF THE OUTER CASING
SHORT TUBE FROM THE
COWL FITS INTO FLUE PIPE.
ALL FLUES SHOULD BE
TRIMMED LEVEL
B
A
DETAIL A
6” FLUE
8” FLUE
10” FLUE
FLEXIBLE
HOSE FOR
HEAT ZONE
VENT
FRONT VIEW
DETAIL
c
ALL
8”-10” ASSEMBLED FLUES
MUST HAVE THE CRIMPS
POINTING UPWARDS
ALL
6” ASSEMBLED FLUES
MUST HAVE THE CRIMPS
POINTING DOWNWARDS
CRIMPED
PLAIN
DETAIL D
DETAIL C
CRIMPED
PLAIN
RUN A BEAD OF SILICONE DOWN
THE VERTICAL SEAM OF THE OUTER
CASING TO THE FLASHING
C-D
20/08/2020
ver. 29
11
