Kemlan CELESTIAL 900 - CELESTIAL 900 METAL FRAMING INFORMATION

2x AIR VENTS
SUPPLIED
MIN. 9mm FIBRE
CEMENT SHEETING
MUST BE USED FOR
WALL LINING
200 MM
MIN.
TRIPLE FLUE
KIT
1130 MM HORIZONTAL
OPENING
CELESTIAL 900
METAL FRAMING INFORMATION
950 MM
VERTICAL
OPENING

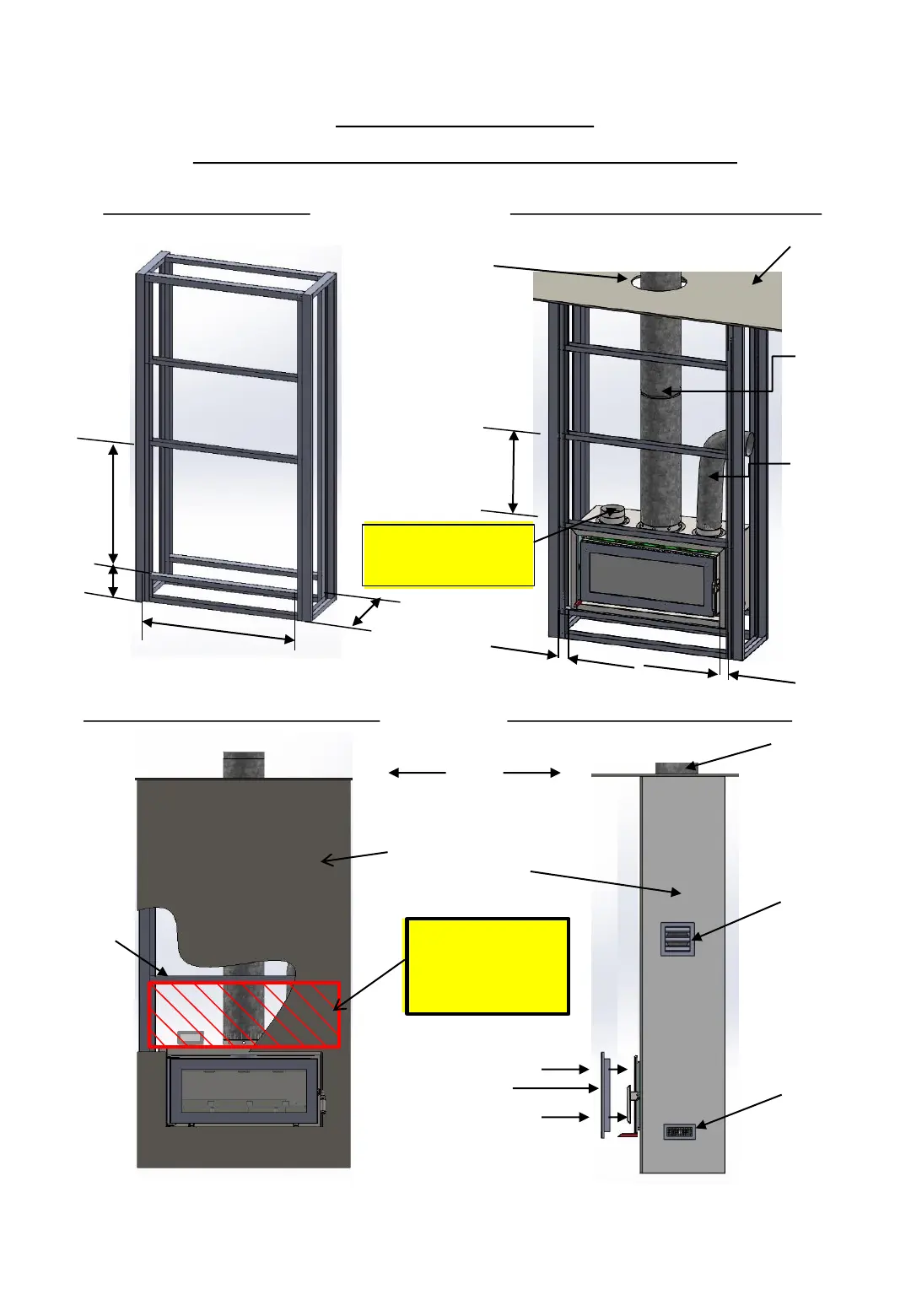

1. CONSTRUCT FRAMING 2. INSERT UNIT AND CONNECT FLUES
3. LINE FRAMING WITH VILLABOARD 4. ATTACH FASCIA AND AIR VENTS
FASCIA
MINIMUM
1 FLEXIBLE
HOSE TO
VENTS MUST
BE INSTALLED
METAL FRAMING
ONLY TO BE USED
FOR THE
CONSTRUCTION
460 MM
DEPTH
25 MM CUT OUT
CLEARANCE AROUND
10” FLUE
CEILING
CEILING
TRIPLE FLUE
KIT
50 MM MIN.
DISTANCE
BETWEEN
HEAT DUCTING
BOX AND
METAL
FRAMING TYP.
HEAT ZONE
VENT
SUPPLIED,
NOT TO BE
INSTALLED TO
AN OUTSIDE
WALL
( INTERNAL
ONLY)
400MM MIN.
DISTANCE BETWEEN
HEAT DUCTING BOX
AND METAL
FRAMING
LOWEST FIXING
POINT 400MM
ABOVE HEAT
DUCTING BOX
WARNING: FIXING
WALL LINING WITHIN
THIS AREA COULD
LEAD TO MATERIAL
CRACKING
20/08/2020 ver. 29 8
NO CAPPING
REQUIRED ON OPEN
HEAT ZONE VENTS
