EN

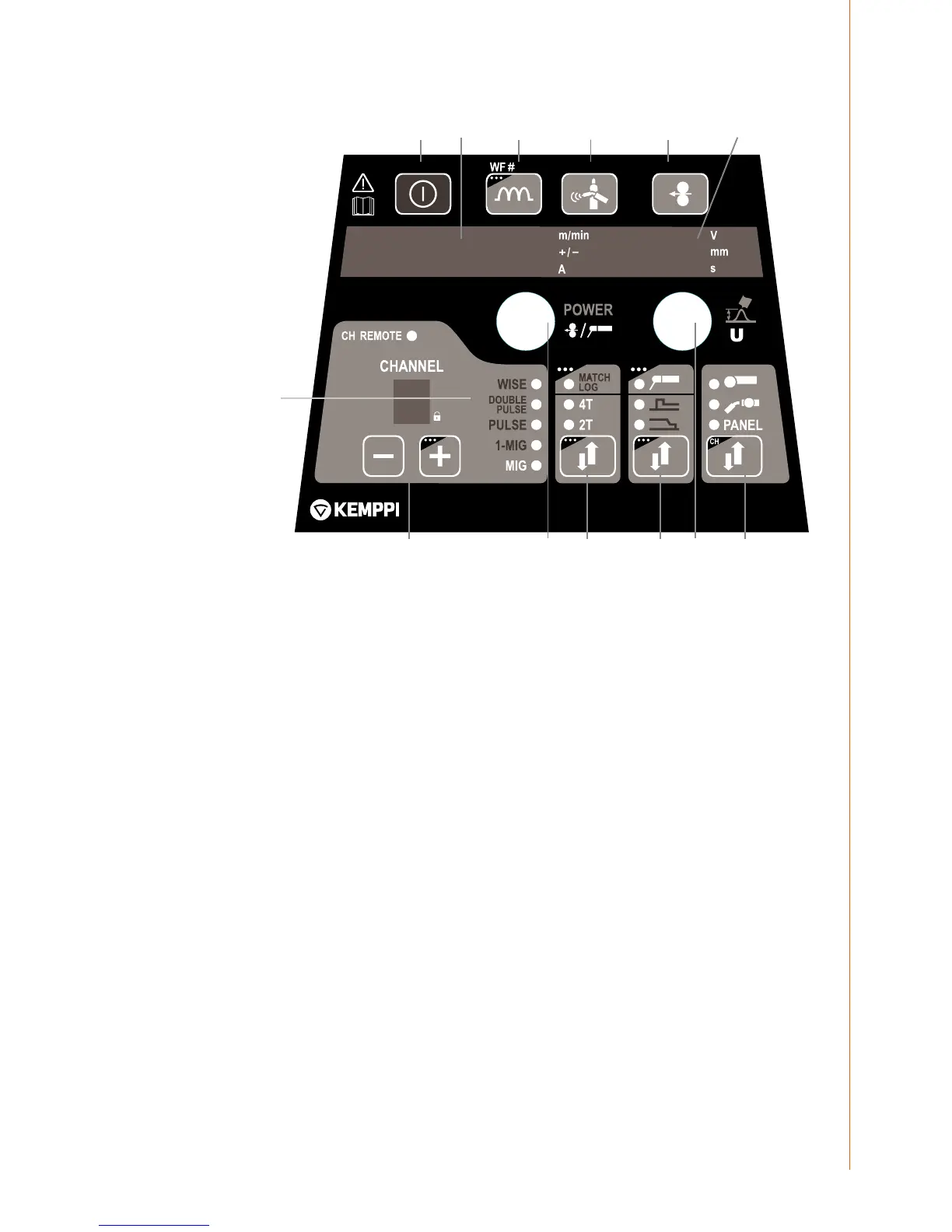

5.12 PF 63 and PF 65 control panel
W003712
PF 65
9. 13.10.11. 12.7.
8.
1. 4.3. 5.
2. 6.
1. Main switch (long press)
2. a) Wire feed speed/welding current display
b) Display of selected adjustable parameter
3. a) Activation of MIG welding dynamics / Arc Force adjustment
b) Selection of Wire Feeder (= paralleled wire feeders)
4. Gas purge
5. Wire inch
6. a) Display of welding voltage /plate thickness /timer settings
b) Display of selected adjustable parameter
7. Selection of MIG gun trigger function: 2T/4T/MATCHLOG long press *)
8. Display of welding process: MIG, 1-MIG, PULSE, DOUBLE PULSE, WISE *)
9. a) Selection of additional MIG functions
b) Activation of MMA welding process (long press*)
10. a) Adjustment of wire feed speed
b) Adjustment of welding power (Synergic 1-MIG and PULSE)
c) Adjustment of electrode welding (MMA) current *)
d) Adjustment of additional parameters when selected (ie Wire inch, Gas Test)
11. Memory channels 0 – 9, programming through P65 panel on the power source, panel
lock (long press on +)
12. a) Adjustment of welding voltage
b) Adjustment of length of welding arc (Synergic 1-MIG and PULSE)
c) Adjustment of additional parameters when selected (ie MIG Dynamics)
13. Panel control/remote control unit selection, channel remote control (long press)
*) Not included on standard delivery, see chapter Ordering numbers
Automatic Weld Data display:
Last recorded welding values are displayed post welding. See power source panel P65. Select
MENU and then Weld Data.
21
© Kemppi Oy / 1336
