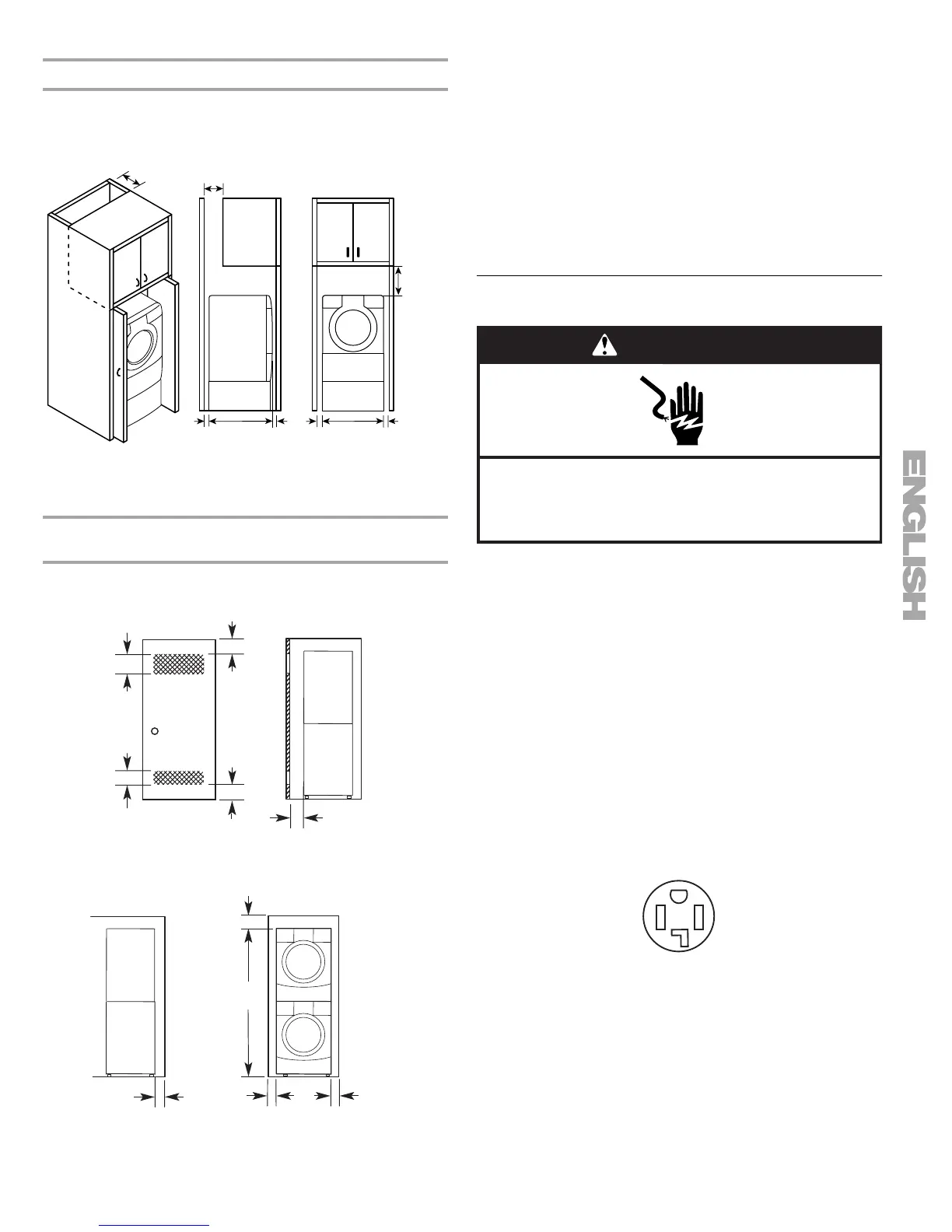

Minimum installation spacing for cabinet installation
■ The dimensions shown are for the recommended spacing.
■ For cabinet installation, with a door, minimum ventilation
openings in the top of the cabinet are required.
*Required spacing
**For side or bottom venting, 0" (0 cm) is allowed.
Recommended installation spacing for recessed or
closet installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
*Required spacing
*For side or bottom venting, 0" (0 cm) spacing is allowed.
Mobile home - additional installation requirements
This dryer is suitable for mobile home installations.
The installation must conform to the Canadian Manufactured
Home Standard, CAN/CSA Z240 MH.
Mobile home installations require:
■ Metal exhaust system hardware, which is available for
purchase from your local Sears store or Sears Service Center.
■ Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
Electrical Requirements
It is your responsibility
■ To contact a qualified electrical installer.
■ To be sure that the electrical connection is adequate and in
conformance with the Canadian Electrical Code, C22.1-latest
edition and all local codes. A copy of the above codes
standard may be obtained from: Canadian Standards
Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3
Canada.
■ To supply the required 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply on a separate 30-amp
circuit, fused on both sides of the line. A time-delay fuse or
circuit breaker is recommended. Connect to an individual
branch circuit.
■ This dryer is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-30R
wall receptacle. The cord is 5 ft (1.52 m) in length. Be sure
wall receptacle is within reach of dryer’s final location.
4-wire receptacle 14-30R
7"* (17.8 cm)
9"*
(22.9 cm)
7"* (17.8 cm)
5"**
(12.7 cm)
28.65"
(72.77 cm)
27"
(68.6 cm)
1"*
(2.5 cm)
(2.5 cm)
1"
(2.5 cm)
1"
48 in.
2
*
(310 cm
2
)
3"* (7.6 cm)
3"* (7.6 cm)
1"* (2.5 cm)
24 in.
2
*
(155 cm
2
)
6"* (15.2 cm)
72"
(182.9 cm)
27"
(68.6 cm)
1"
(2.5 cm)
1"
(2.5 cm)
5"*
(12.7 cm)
WARNING
Electrical Shock Hazard
Plug into a grounded 4 prong outlet.
Failure to do so can result in death or electrical shock.
