WARNING
Fire and/or Electrical Shock Hazard
Do not operate with a clogged exhaust
filter or without the exhaust filter installed.
Do not operate without filter cover
installed.

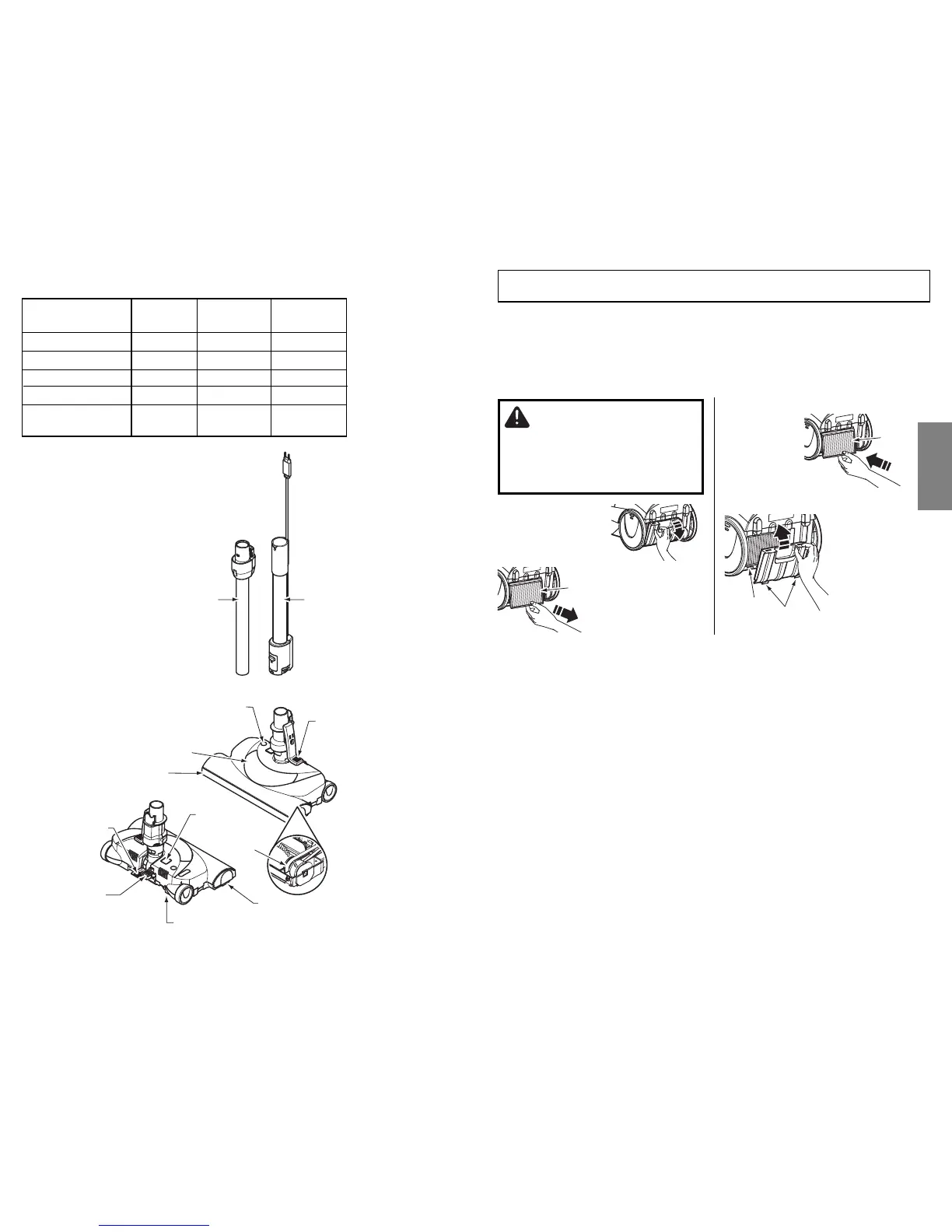

EXHAUST FILTER CHANGING
3. Replace the
exhaust filter
cartridge.
Place the new
filter into the
canister with
the foam seal
facing towards
the canister.
4. Replace the
exhaust filter cover
by placing the two
tabs on the filter
cover into the slots
on the canister and
rotate into place
until it snaps closed.
1. Pull out and down on
the exhaust filter cover
to remove from the
canister and lay aside.
2. Pull the exhaust
filter up and out
from the rear of
the canister.
Exhaust
Filter
Exhaust
Filter
Tabs
Slots
The exhaust filter cartridge must be replaced regularly. Replace the filter when the entire
surface area is covered evenly. The filter CANNOT be washed as it will lose its dust
trapping ability.
NOTE: Use replacement exhaust filter No. 20-40324, see part number detail in
REPLACEMENT PARTS (page 7).
ENGLISH
Tube
Inférieur
Tube
Supérieur
Courroie
Éclairage
Pare-Chocs
Indicateur de
hauteur de poils
Protecteur de surchage
Bouton de remise
en circuit
Nettoyer de bords
(Non illustré)
Pédale de
hauteur de poils
Pédale de
relâchement
de manche
Numéros de
modèle/série
PowerMate (Au bas)
Pedale de
relâche de
la rallonge
PowerMate & Tubes
PIÈCES DÉTACHÉES
Objet Style Nº Nº aux Nº au
Etats-Unis Canadá
Courroie CB-3 20-5218 20-40118
Éclairage ----- 20-5240 20-40601
Sac à poussière C 20-50558 20-50403
Filtre d’échappement EF-1 20-86889 20-40324
Filtre de securité CF-1 20-86883 20-40321
du moteur
