Kenmore 116.23205C - Powermate Care; Belt Changing and Agitator Cleaning

24
5
POWERMATE CARE
Always follow all safety precautions when performing maintenance to the PowerMate.
WARNING
Electrical Shock Or Personal Injury Hazard
Always turn off and unplug vacuum
cleaner before performing maintenance
to the vacuum cleaner . Failure to do so
could result in electrical shock or personal
injury from vacuum cleaner suddenly
starting.

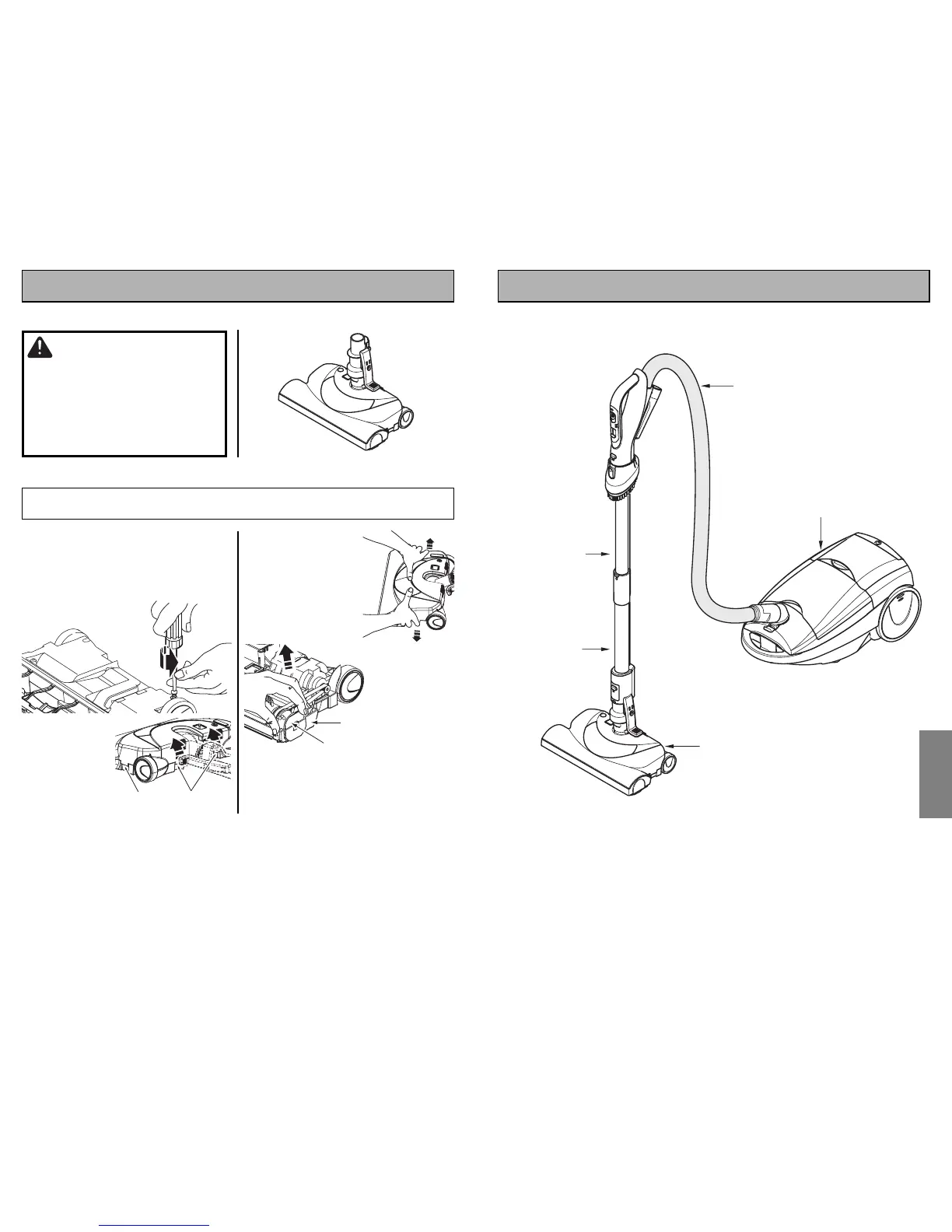

BELT CHANGING AND AGITATOR CLEANING
TO REMOVE BELT
1. Turn off and unplug vacuum cleaner.
2. Turn PowerMate upside down.
3. Unscrew the two (2)
PowerMate cover screws.
4. Turn
PowerMate top
side up. Press
handle release
pedal and lower
the swivel. Lift
rear latches up.
5. To remove cover,
grasp the sides and
pull out.
6. Lift agitator
assembly out
and remove
worn belt.
7. Check and clean end cap areas. See
AGITATOR ASSEMBLY (page 25) for picture
of complete agitator assembly.
Rear
Latches
Side
Latch
Base
End Cap
Poignée &
Tuyau
PowerMate
Traîneau
Tube
Supérieur
Tube
Inférieur
PIÈCES ET CARACTÉRISTIQUES
Il est important de connaître les pièces et les caractéristiques de l’aspirateur pour l’utiliser cor-
rectement et en toute sécurité. Lire cette section avant de l’utiliser
FRANÇAIS
