_._ WARNING
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before
performing maintenance to the
unit. Failure to do so could result in
electrical shock or personal injury
from vacuum cleaner suddenly
starting.

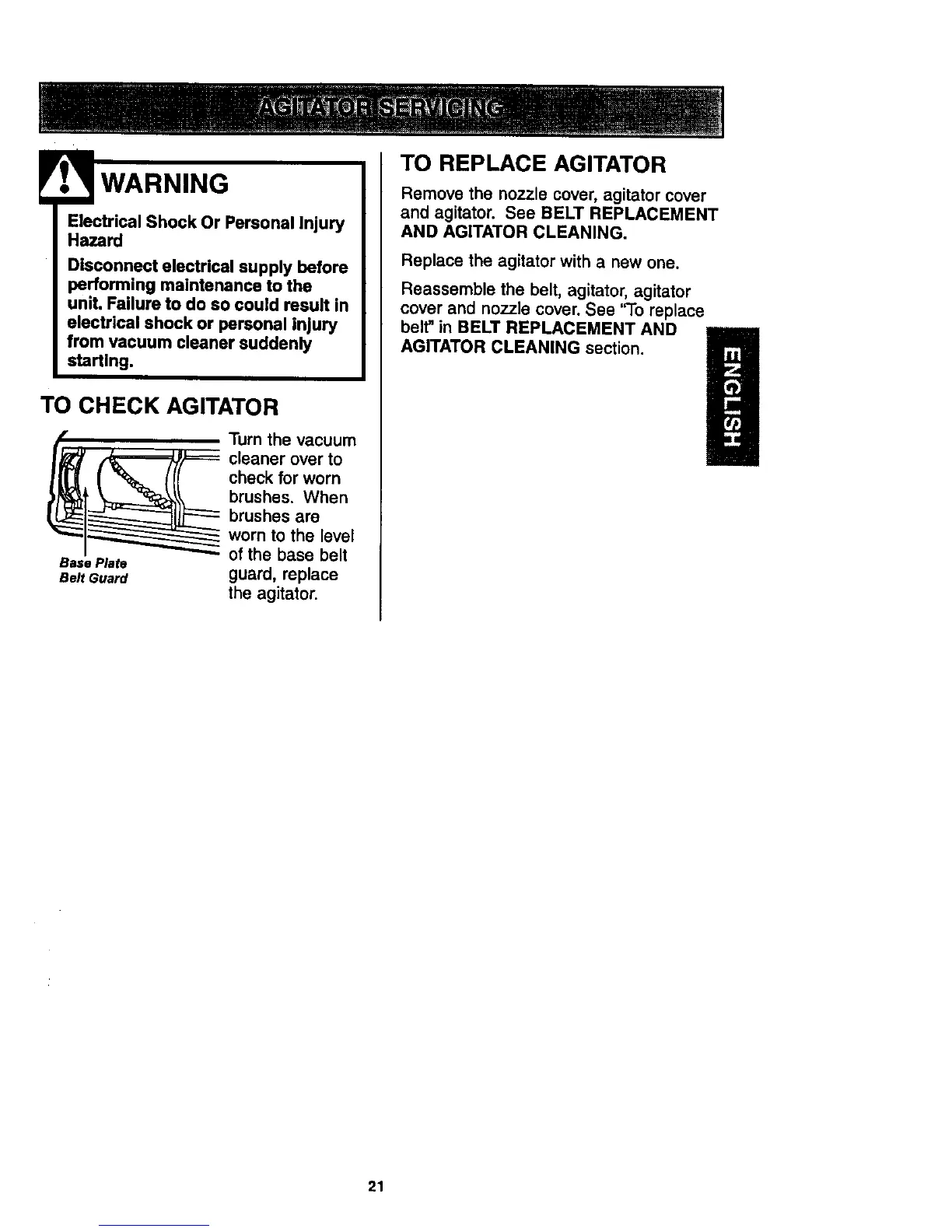

TO CHECK AGITATOR
__ urn the vacuum
cleaner over to
check for worn
brushes. When
brushes are
_1_ worn to the level
I _ of the base belt
Base Plate
aeJt Guard guard, replace
the agitator.
TO REPLACE AGITATOR
Remove the nozzle cover, agitator cover
and agitator. See BELT REPLACEMENT
AND AGITATOR CLEANING.
Replace the agitator with a new one.
Reassemble the belt, agitator, agitator
cover and nozzle cover. See '9o replace
belt" in BELT REPLACEMENT AND
AGITATOR CLEANING section.
21
