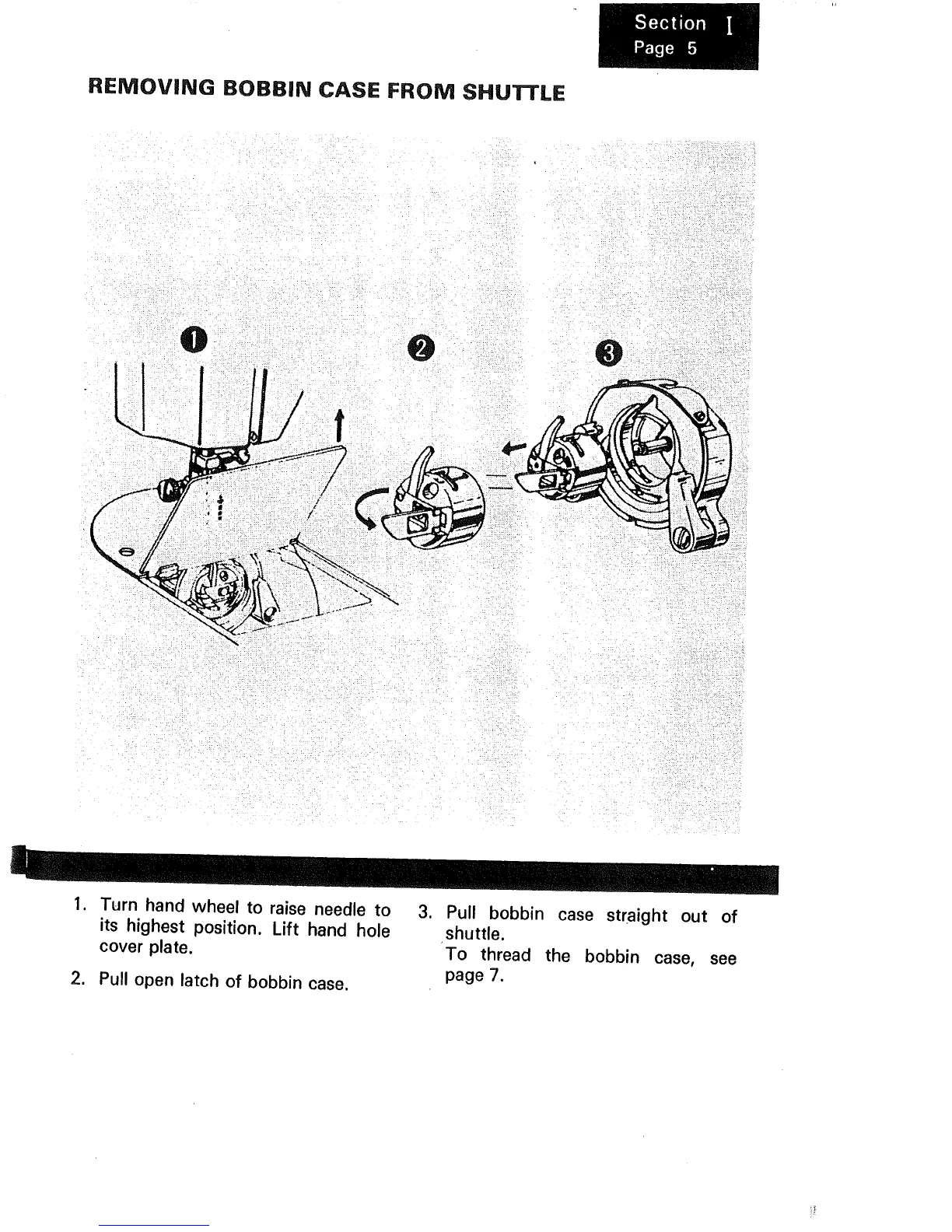

REMOVING BOBBIN CASE FROM SHUTTLE
•/ iilE•• .•
•.... •i•-if!••_•
i
1. Turn hand wheel to raise needle to
its highest position. Lift hand hole
cover plate.
2. Pull open latch of bobbin case.
3. Pull bobbin case straight out of
shuttle.
To thread the bobbin case, see
page 7.
