Kenmore 1240 - Winding and Threading Bobbin

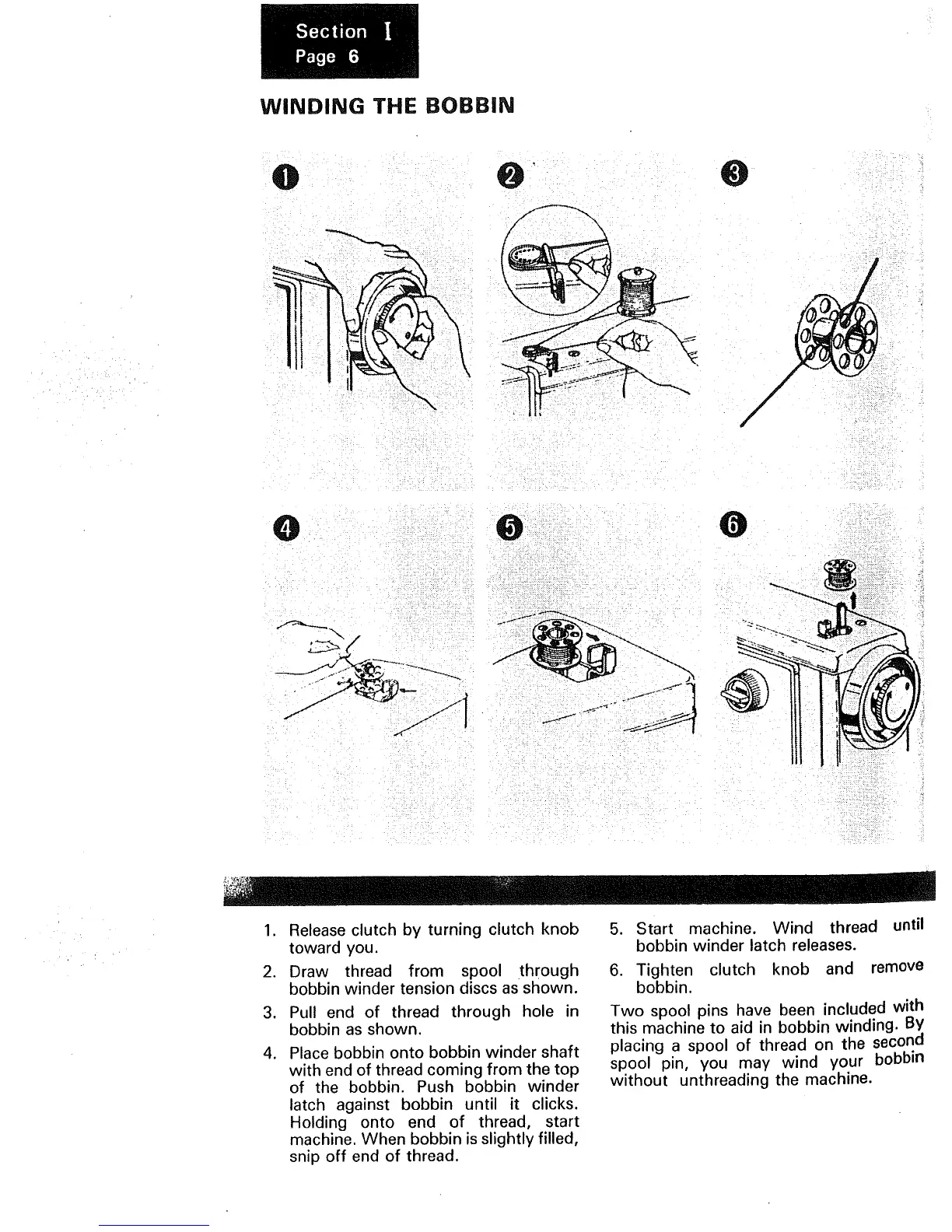

WINDING THE BOBBIN
• • k
k
- k
,
2.
3.
4.
Release clutch by turning clutch knob
toward you.
Draw thread from spool through
bobbin winder tension discs as shown.
Pull end of thread through hole in
bobbin as shown.
Place bobbin onto bobbin winder shaft
with end of thread coming from the top
of the bobbin. Push bobbin winder
latch against bobbin until it clicks.
Holding onto end of thread, start
machine. When bobbin is slightly filled,
snip off end of thread.
5. Start machine. Wind thread until
bobbin winder latch releases.
6. Tighten clutch knob and remove
bobbin.
Two spool pins have been included with
this machine to aid in bobbin winding. By
placing a spool of thread on the second
spool pin, you may wind your bobbin
without unthreading the machine.
