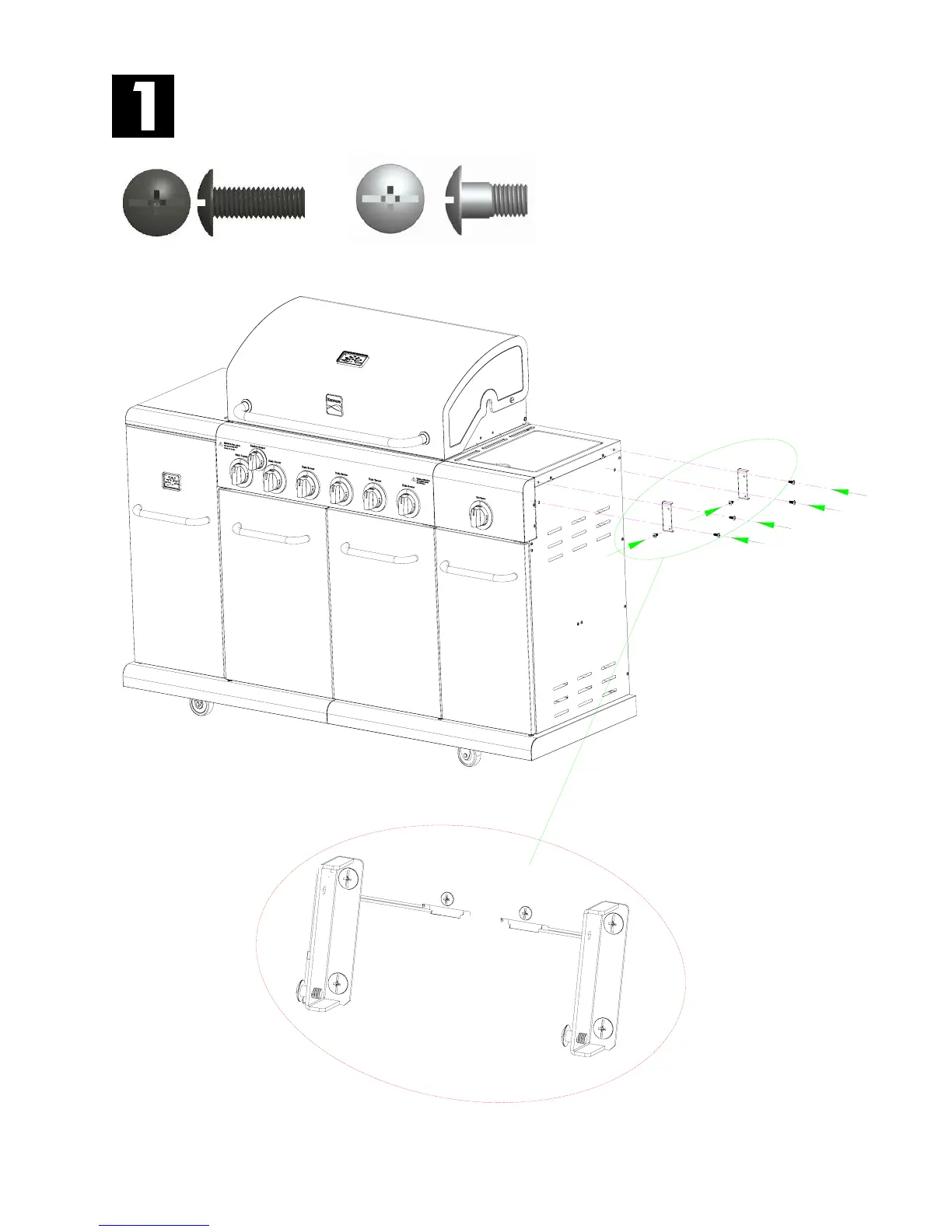

Side Shelf Brackets
□ Attach the two folding side shelf support brackets to the outer panel of right side cabinet with
(4) M6x17 screws. Place the brackets as shown in figure.
□ Insert (2) M6x 12 shoulder screws into the lower holes of support brackets.
M6X17 screw Qty: 4 pcs M6X12 shoulder screw Qty: 2
pcs
