Kenmore 17830 - The Bobbin Case

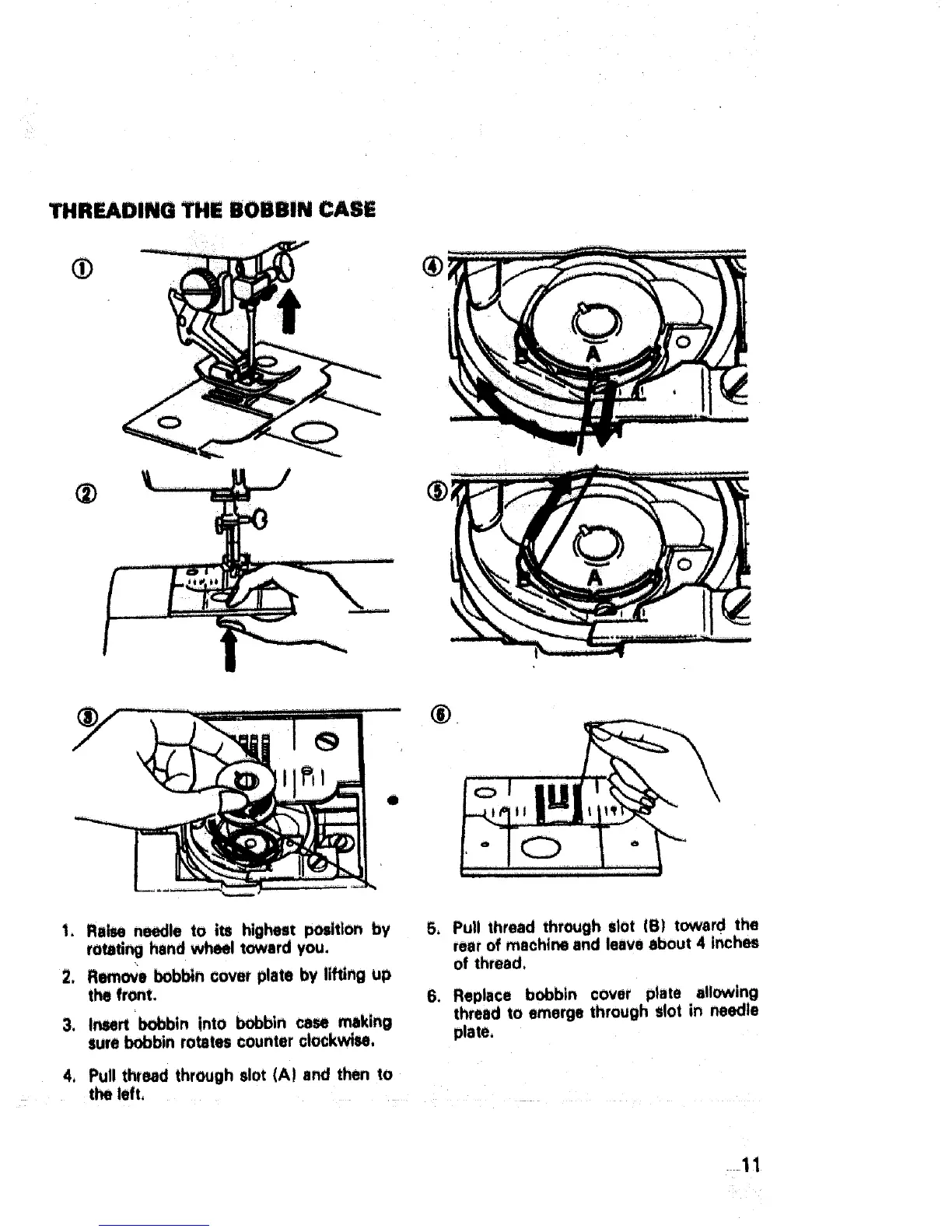

THR_DING THE BOBBIN CASE
i
®
®
®
•
O
6
,
Pull thread through slot (B) toward the
rear of machine and leave _out 4 inches
of thread,
Replace bobbin cover plats allowing
thread to emerge through slot in needle
plate,
1, Raise needle to its highut position by
rotating hand wheel toward you.
2, Rmove bobbin cover plate by lifting up
the front,
3. I_rt bobbin into bobbin case making
sure bobbin rotates counter clockwise,
4. Pull thread through slot (A) and then to
the left,
!
il
