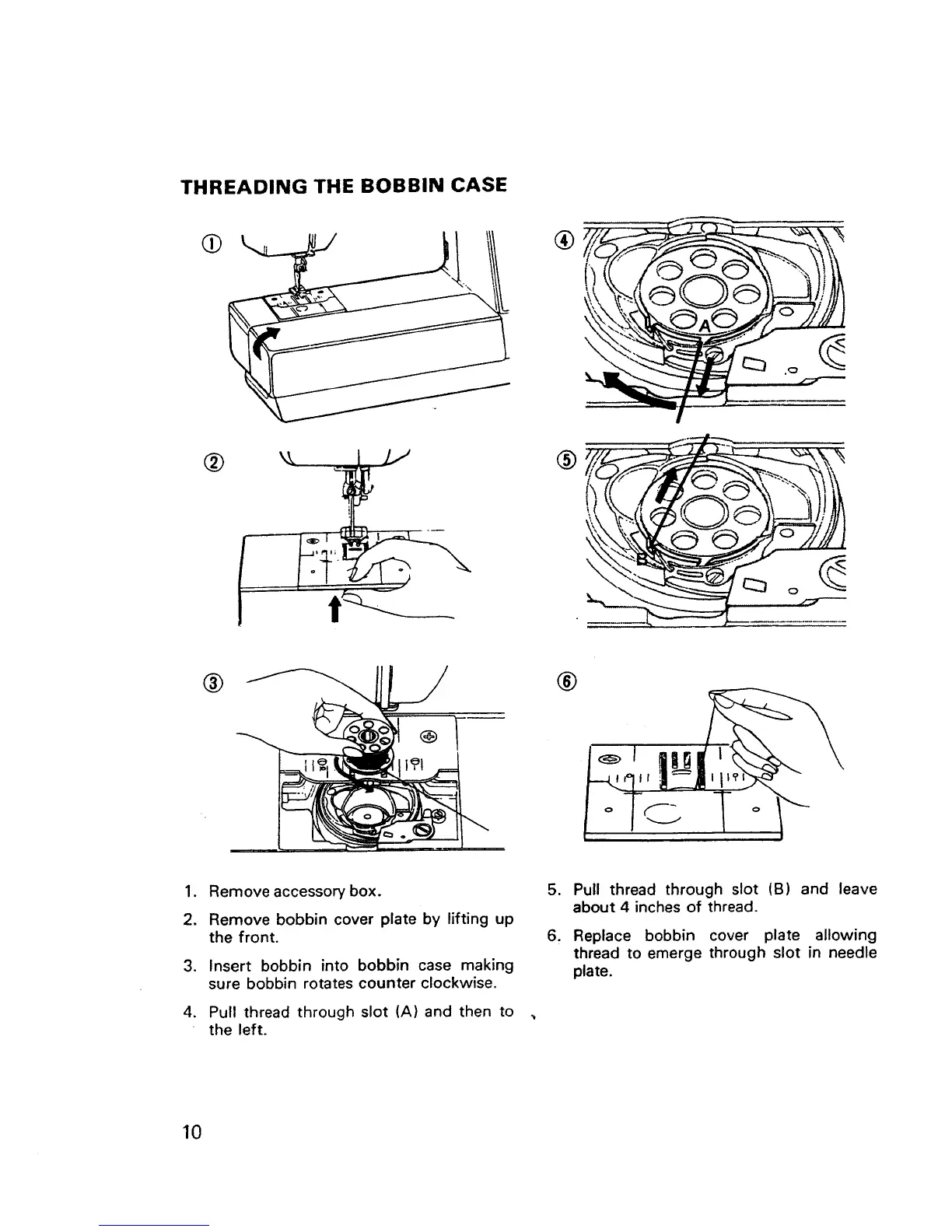

THREADING THE BOBBIN CASE
®
®
®
®
1. Remove accessory box.
2. Remove bobbin cover plate by lifting up
the front.
3. Insert bobbin into bobbin case making
sure bobbin rotates counter clockwise.
4. Pull thread through slot (A) and then to
the left.
5. Pull thread through slot (B) and leave
about 4 inches of thread.
6. Replace bobbin cover plate allowing
thread to emerge through slot in needle
plate.
10
