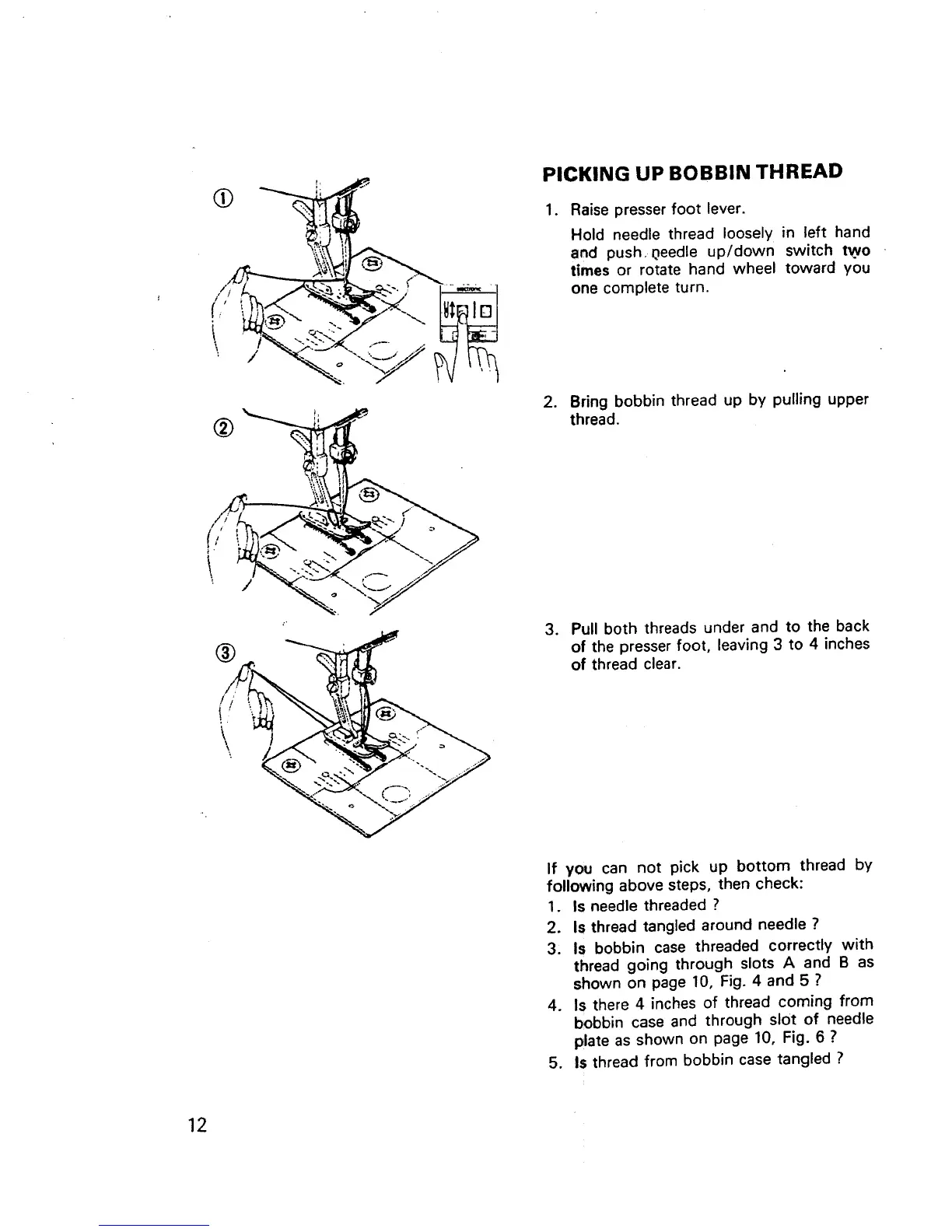

PICKING UP BOBBIN THREAD
1. Raise presser foot lever.
Hold needle thread loosely in left hand
and push,!_eedle up/down switch two
times or rotate hand wheel toward you
one complete turn.
2. Bring bobbin thread up by pulling upper
thread.
®
/
\
\
.
Pull both threads under and to the back
of the presser foot, leaving 3 to 4 inches
of thread clear.
If yOu can not pick up bottom thread by
following above steps, then check:
1. Is needle threaded ?
2. Is thread tangled around needle ?
3, Is bobbin case threaded correctly with
thread going through slots A and B as
shown on page 10, Fig. 4 and 5 ?
4. Is there 4 inches of thread coming from
bobbin case and through slot of needle
plate as shown on page 10, Fig. 6 7
5. Is thread from bobbin case tangled ?
12
