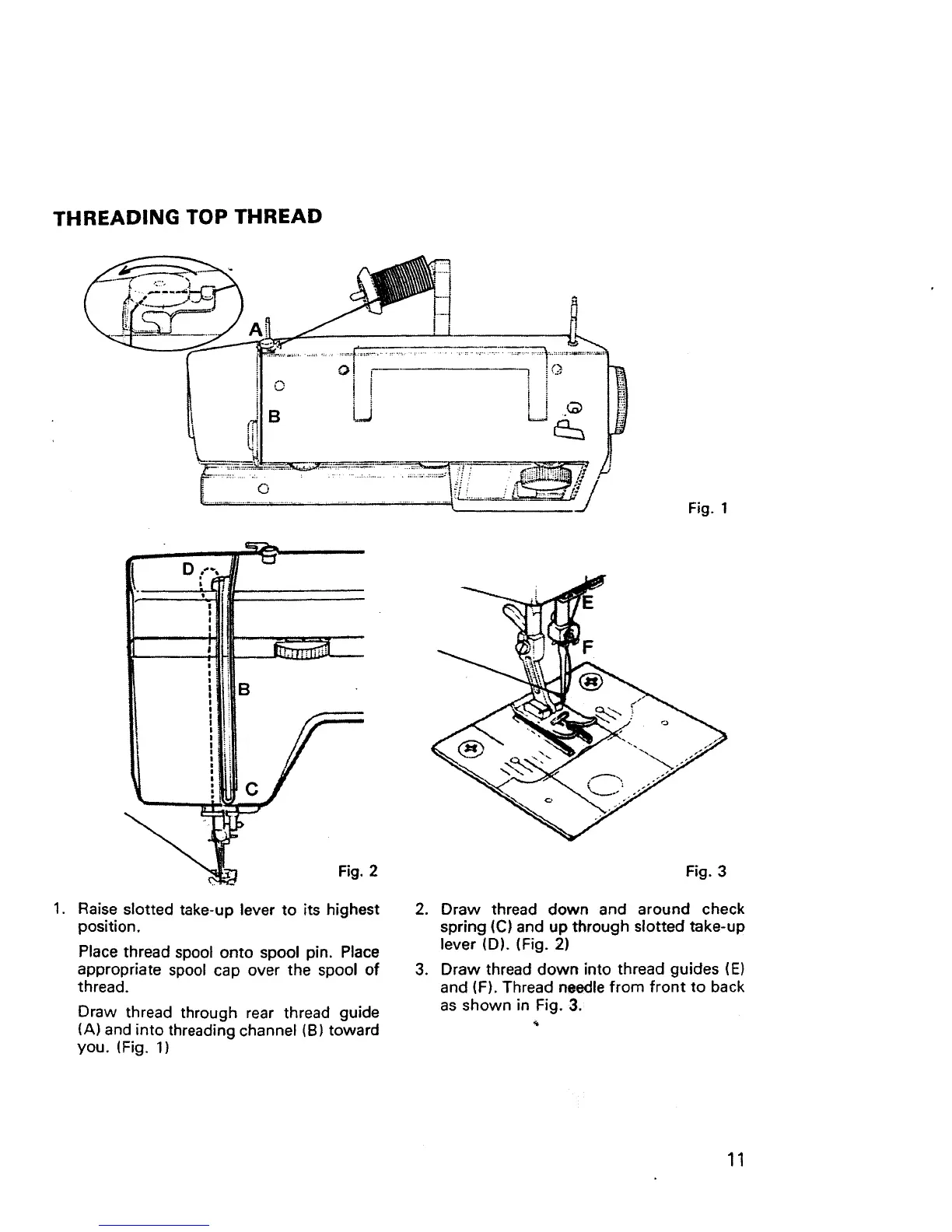

THREADING TOP THREAD
,
Fig. 1
[ °=.'_/
In'_ ' = III llF . .i
• i._ _._,
ili ........-
i !-i_
:i
i_ol
Fig. 2 Fig. 3
Raise slotted take-up lever to its highest
position.
Place thread spool onto spool pin. Place
appropriate spool cap over the spool of
thread.
Draw thread through rear thread guide
(A) and into threading channel (B) toward
you. (Fig. 1)
,
.
Draw thread down and around check
spring (C) and up through slotted take-up
lever (D). (Fig. 2)
Draw thread down into thread guides (E)
and (F). Thread needle from front to back
as shown in Fig. 3.
11
