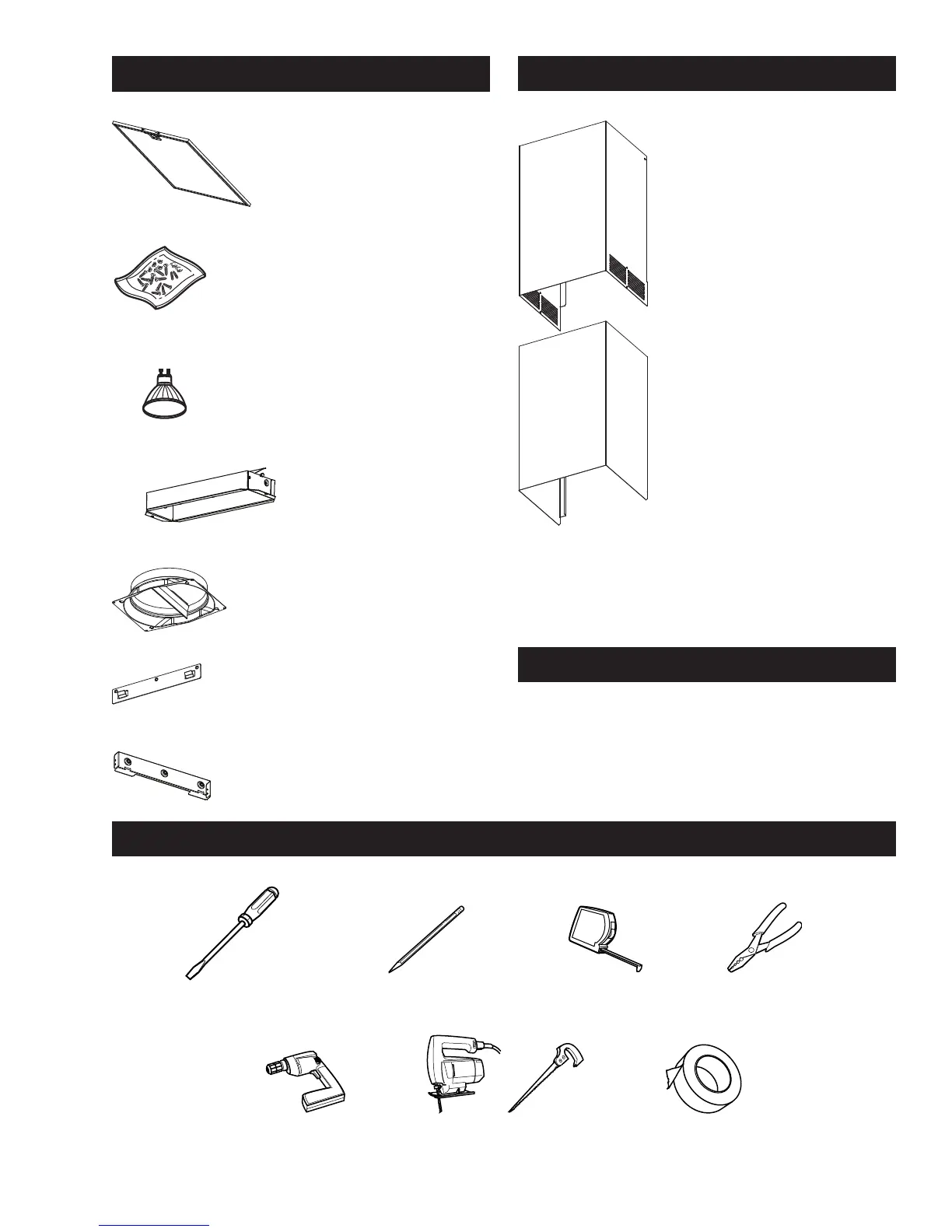

PARTS INCLUDED WITH HOOD
TOOLS NEEDED FOR HOOD INSTALLATION
Aluminum grease fi lters
(2 per hood)
Parts Bag including:
5 no. 8 x 1½” countersunk screws
8 no. 8 x 3/4” screws
6 no. 8 x 3/8” screws
6 Drywall anchors
3 Washers
Screwdriver
(Robertson or Phillips) Pencil
Tape
Measure
Drill
Sabre
Saw
Keyhole
Saw
-or-
Duct Tape
Wire
Stripper
PARTS NOT INCLUDED WITH HOOD
HR0051
120 V, 50 W, PAR 16 with GU10 base
shielded halogen lamp
(2 per hood)
Sears Part No. V05921
Ducting Accessories
(See “Range Hood System” on page 5 for Ducting Accessory
Model Nos.)
Optional fl ue extension for 10-ft. ceilings (model no. 31131)
HR0012
HR0010
HR0011
3¼” x 10” adapter/damper
(for horizontal discharge)
HR0041
8” round adapter/damper
(for vertical discharge), in a
separate box
HR0042
Hood mounting bracket
HR0043
Upper fl ue mounting bracket
HR0044
PARTS INCLUDED WITH HOOD
Decorative fl ue assembly
(lower and upper fl ues)
