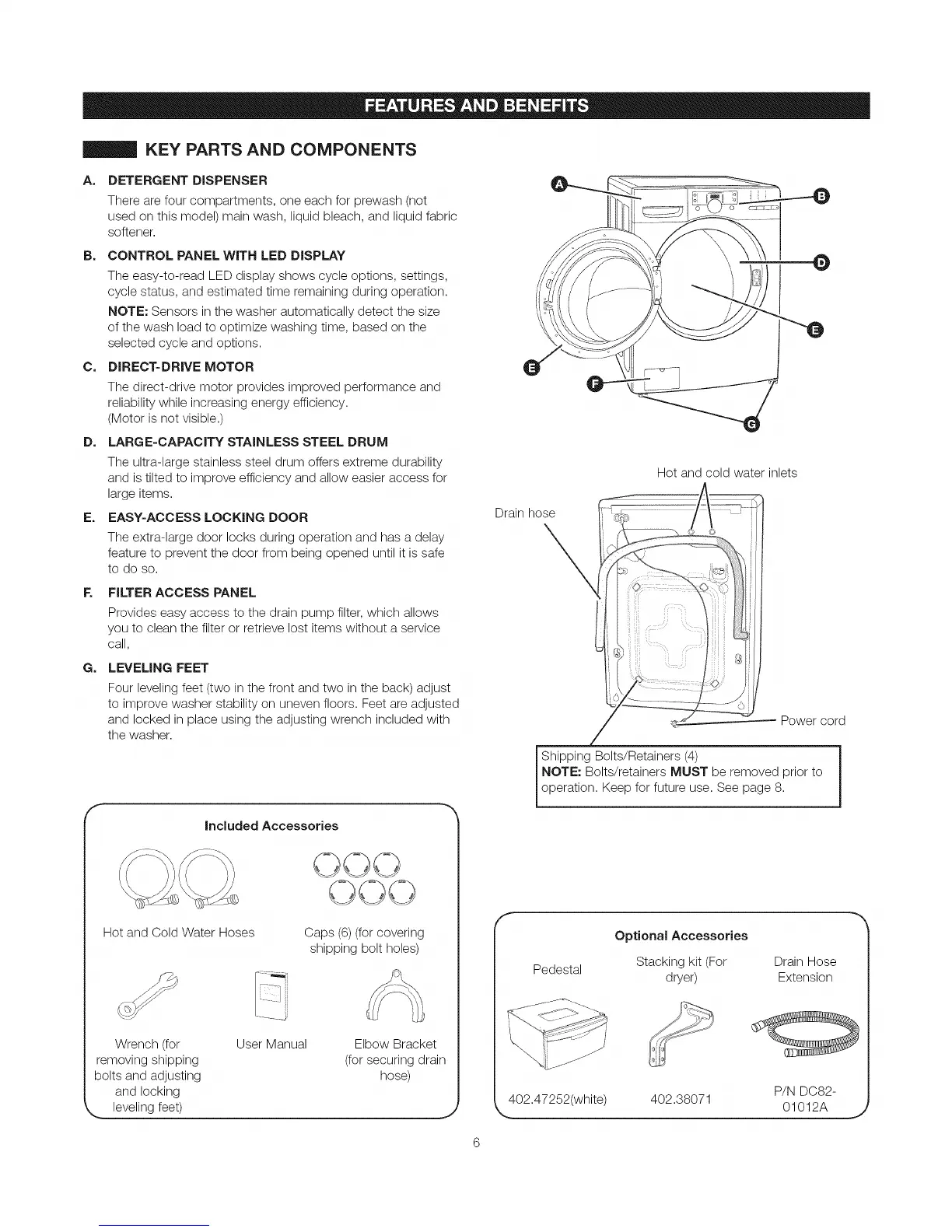

KEY PARTS AND COMPONENTS
A=
B=
C=
D=
E=
G=
DETERGENT DISPENSER
There are four compartments, one each for prewash (not
used on this model) main wash, liquid bleach, and liquid fabric
softener.
CONTROL PANEL WITH LED DISPLAY
The easy-to-read LED display shows cycle options, settings,
cycle status, and estimated time remaining during operation.
NOTE: Sensors in the washer automatically detect the size
of the wash load to optimize washing time, based on the
selected cycle and options.
DIRECT-DRIVE MOTOR
The direct-drive motor provides improved performance and
reliability while increasing energy efficiency.
(Motor is not visible.)
LARGE-CAPACITY STAINLESS STEEL DRUM
The ultra-large stainless steel drum offers extreme durability
and is tilted to improve efficiency and allow easier access for
large items.
EASY-ACCESS LOCKING DOOR
The extra-large door locks during operation and has a delay
feature to prevent the door from being opened until it is safe
to do so.
FILTER ACCESS PANEL
Provides easy access to the drain pump filter, which allows
you to clean the filter or retrieve lost items without a service
call,
LEVELING FEET
Four leveling feet (two in the front and two in the back) adjust
to improve washer stability on uneven floors. Feet are adjusted
and locked in place using the adjusting wrench included with
the washer.
Included Accessories
Hot and Cold Water Hoses
Caps (6) (for covering
shipping bolt holes)
Wrench (for User Manual Elbow Bracket
removing shipping (for securing drain
bolts and adjusting hose)
and locking
,_ leveling feet)
J
Drain hose
Hot and cold water inlets
Power cord
Shipping Bolts/Retainers (4)
NOTE: Bolts/retainers MUST be removed prior to
operation. Keep for future use. See page 8.
Optional Accessories
Pedestal Stacking kit (For Drain Hose
dryer) Extension
P/N DC82-
402.47252(white) 402.38071
01012A j
