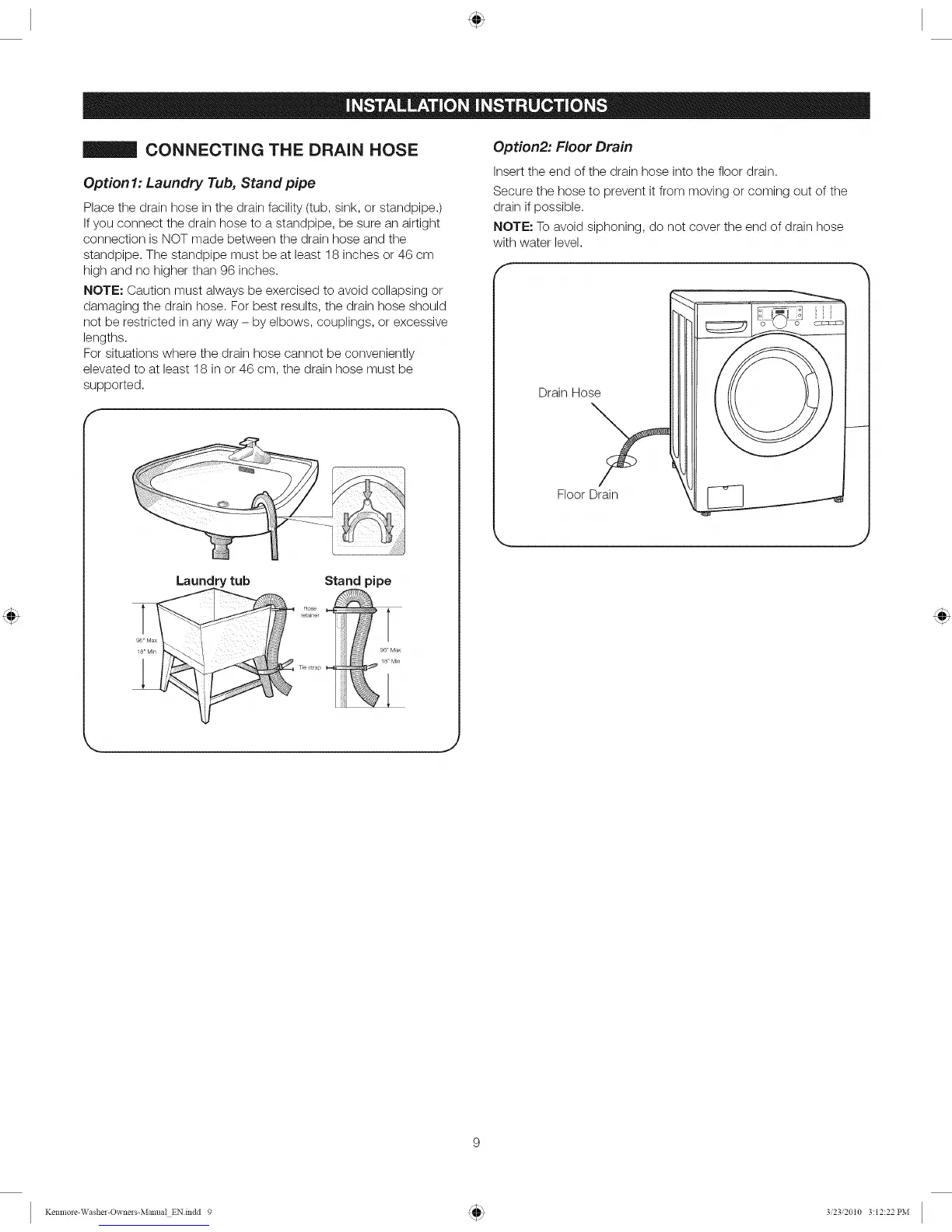

CONNECTING THE DRAIN HOSE
Option 1: Laundry Tub, Stand pipe
Place the drain hose in the drain facility (tub, sink, or standpipe.)
If you connect the drain hose to a standpipe, be sure an airtight
connection is NOT made between the drain hose and the
standpipe. The standpipe must be at least 18 inches or 46 cm
high and no higher than 96 inches.
NOTE: Caution must always be exercised to avoid collapsing or
damaging the drain hose. For best results, the drain hose should
not be restricted in any way - by elbows, couplings, or excessive
lengths.
For situations where the drain hose cannot be conveniently
elevated to at least 18 in or 46 cm, the drain hose must be
supported.
f
Laundry tub Stand pipe
retainer
Tie strap
Option2: Floor Drain
Insert the end of the drain hose into the floor drain.
Secure the hose to prevent it from moving or coming out of the
drain if possible.
NOTE: To avoid siphoning, do not cover the end of drain hose
with water level.
f
Drain Hose
Floor Drain
J
